Watts Water Technologies

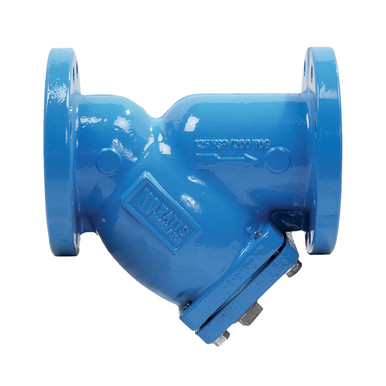

Cast Iron, Class 125 Flanged End, Wye-Pattern Strainers with FDA Epoxy Coating
- SKU:
- 77F-DI-FDA-125
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Cast Iron, Class 125 Flanged End, Wye-Pattern Strainers with FDA Epoxy Coating
Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket, and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) at 140°F (60°C) WOG.
Product Highlights
- FDA-approved epoxy coating inside and out — suitable for potable water and food applications
- Class B cast iron body with Class 125 flanged connections for durability and long life
- Stainless steel screen for reliability and easy cleaning
- Bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | 77F-DI-FDA-125 |
| Connection / Configuration | Class 125 flanged |
| Construction | Epoxy-coated cast iron |
| Non-shock Rating | 200 psi WOG at 140°F |
| Listed Options | 2-1/2", 3", 4", 6", 8" |
| Product Code | 77F-DI-FDA-125 |
Product Documents
Product Questions
What is the listed connection configuration?
Class 125 flanged. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Epoxy-coated cast iron. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
2-1/2", 3", 4", 6", 8". Choose the required option before ordering.
