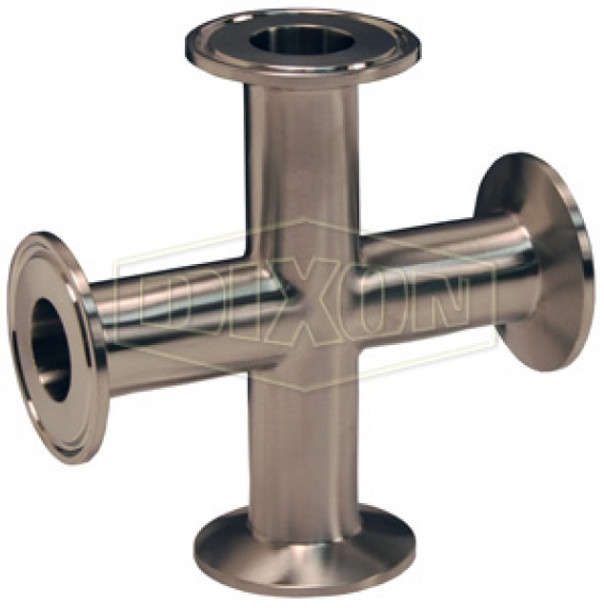

Dixon B9MP-R200 Clamp Cross - 2" 316L Stainless Steel
Dixon B9MP-R200 is a 2" sanitary clamp cross manufactured from 316L stainless steel for hygienic and process piping systems.
Part of Dixon's B9MP clamp-cross family, this fitting provides four sanitary clamp connections arranged in a cross configuration. It is designed for process systems where flow must branch or converge in multiple directions while maintaining removable sanitary connections for cleaning, inspection, equipment service, and piping maintenance.
Product Highlights
- Dixon sanitary clamp cross
- Manufacturer part number B9MP-R200
- 2" tube outside diameter
- 316L stainless steel construction
- Four sanitary clamp connections
- Cross configuration for multi-directional piping layouts
- Designed for hygienic and sanitary process systems
- Published weight: 1.58 lb
- Dixon published dimension A: 3.50"
- Break quantity: 1
- Optional package/box quantity: 1
- 304 stainless steel equivalent: B9MP-G200
Technical Specifications
| Brand | Dixon |
|---|---|
| Manufacturer Part Number | B9MP-R200 |
| Product Type | Clamp Cross |
| Series | B9MP |
| Tube O.D. | 2" |
| Material | 316L Stainless Steel |
| Connection Type | Sanitary Clamp |
| Number of Connections | 4 |
| Configuration | Cross |
| Published Dimension A | 3.50" |
| Published Weight | 1.58 lb |
| Break Quantity | 1 |
| Optional Package/Box Quantity | 1 |
| 304 Stainless Steel Equivalent | B9MP-G200 |
| Application | Hygienic and process piping branch connections |
316L Stainless Steel Construction
The B9MP-R200 is manufactured from 316L stainless steel, a corrosion-resistant material commonly used in sanitary and process piping systems.
316L stainless steel is often selected for hygienic applications where resistance to process fluids, cleaning chemicals, and demanding operating environments is important.
Actual material suitability depends on the process media, concentration, operating temperature, cleaning chemistry, sanitation procedure, and other system conditions. Confirm compatibility for the specific application before installation.
Four-Way Clamp Cross Configuration
The B9MP-R200 provides four 2" sanitary clamp connections arranged around a common center point. This configuration provides a compact way to create a four-way junction within a hygienic process piping system.
Depending on the system layout, the fitting can be incorporated where process piping must branch into multiple directions or where several flow paths converge at a common point.
Because all four connections use sanitary clamp interfaces, the fitting can be removed from compatible piping assemblies for inspection, cleaning, equipment service, or system modification.
Sanitary Clamp Connections
Connection Benefits
- Four removable sanitary connections
- Fast assembly and disassembly
- Supports routine cleaning and inspection
- Useful for modular process piping layouts
- Provides access during system maintenance
Typical Joint Components
- Compatible mating sanitary ferrule
- Properly selected sanitary gasket
- Appropriate sanitary clamp
- Correctly aligned process tubing or equipment connection
- Proper piping support
Published Dimensions & Weight
| Tube O.D. | 2" |
|---|---|
| Dimension A | 3.50" |
| Weight | 1.58 lb |
Dixon publishes the B9MP-R200 as a 2" tube O.D. fitting with an A dimension of 3.50". When exact fabrication, clearance, or equipment fit-up dimensions are critical, verify against the latest applicable Dixon dimensional drawing before installation.
304 vs. 316L Version
B9MP-R200
- 2" tube O.D.
- 316L stainless steel
- Dixon R-series material configuration
- For systems requiring compatible 316L construction
B9MP-G200
- 2" tube O.D.
- 304 stainless steel
- Dixon G-series material configuration
- Same B9MP clamp-cross fitting family
Typical Applications
Food & Beverage Processing
- Food processing systems
- Beverage production
- Dairy processing
- Breweries
- Wineries and distilleries
Hygienic & Process Systems
- Pharmaceutical process piping
- Sanitary fluid-transfer systems
- Compatible chemical processing
- Process equipment manifolds
- Multi-branch process piping
Sanitary Fitting Selection
Dixon identifies B9MP-R200 by its 2" tube outside diameter. Sanitary tube sizing should be confirmed against the existing process piping before ordering.
Do not automatically substitute nominal pipe sizing for sanitary tube O.D. The connection dimensions and fitting standards used in sanitary tubing systems differ from conventional nominal pipe sizing.
Also confirm that 316L stainless steel is the required material and that the mating ferrules, sanitary gaskets, and clamps are compatible with the 2" connections.
Gasket & Clamp Selection
Sanitary Gasket
- Match gasket size to the 2" sanitary connection
- Select material for the process media
- Verify operating-temperature compatibility
- Verify compatibility with cleaning chemicals
- Inspect the gasket before assembly
Sanitary Clamp
- Use the appropriate clamp size and style
- Inspect clamp components for wear or damage
- Align ferrule faces before tightening
- Follow applicable clamp installation procedures
- Do not use the clamp to correct piping misalignment
Standards & Sanitary Applications
Dixon documentation for the B9MP clamp-cross family references 3-A Sanitary Standards for Sanitary Fittings, Standard Number 63-04 under authorization number 621.
Application-specific sanitary, regulatory, material, documentation, and installation requirements should still be confirmed for the individual process system before ordering or placing the fitting into service.
Installation
Confirm the 2" tube O.D., 316L stainless steel construction, and fitting configuration before installation.
Inspect all four clamp faces for contamination, dents, scratches, deformation, or other damage that could interfere with gasket sealing.
Install properly sized and compatible sanitary gaskets between the mating ferrule faces. Select gasket material according to the process fluid, operating temperature, cleaning chemicals, sanitation procedures, and other system requirements.
Align the mating connections before installing the sanitary clamps. Do not use the fitting or clamps to pull misaligned piping into position.
Properly support the connected piping and equipment so excessive external loads are not transferred to the clamp cross or sanitary joints.
After assembly, inspect all four connections and verify leak-free operation under appropriate system conditions before returning the process line to normal service.
Our team can help confirm your tube O.D., stainless steel grade, clamp size, gasket material, and mating sanitary components before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What size is Dixon B9MP-R200?
B9MP-R200 is a 2" tube O.D. sanitary clamp cross.
What material is B9MP-R200?
Dixon identifies B9MP-R200 as the 316L stainless steel version of the 2" B9MP clamp cross.
How many connections does B9MP-R200 have?
The fitting has four sanitary clamp connections arranged in a cross configuration.
What is the published dimension A?
Dixon lists dimension A as 3.50" for B9MP-R200.
How much does B9MP-R200 weigh?
Dixon lists a published weight of 1.58 lb for B9MP-R200.
What is the 304 stainless steel equivalent?
B9MP-G200 is the corresponding 2" 304 stainless steel version in Dixon's B9MP clamp-cross family.
What does the R designation identify?
Within this Dixon B9MP fitting family, the R-series part number identifies the 316L stainless steel version.
Are sanitary clamps included?
Do not assume clamps are included unless specifically stated in the GetPipe.com offering. Appropriate sanitary clamps are typically selected according to the mating connections and system requirements.
Are sanitary gaskets included?
Do not assume gaskets are included unless specifically stated in the offering. Select the correct gasket size and elastomer material for the application.
What is a sanitary clamp cross used for?
A clamp cross provides four sanitary connections at a common junction and can be used where process piping must branch or converge in multiple directions.
Can B9MP-R200 be used in food and beverage systems?
Dixon provides sanitary fitting products for food, beverage, dairy, and other hygienic process markets. Confirm that the fitting material and complete connection assembly meet the requirements of the specific application.
Is the 2" size a tube O.D.?
Yes. Dixon identifies B9MP-R200 by a 2" tube outside diameter. Do not automatically substitute nominal pipe sizing.
What should I verify before ordering B9MP-R200?
Confirm the B9MP-R200 part number, 2" tube O.D., 316L stainless steel material, required dimensions, mating sanitary connections, gasket material, and clamp requirements.
