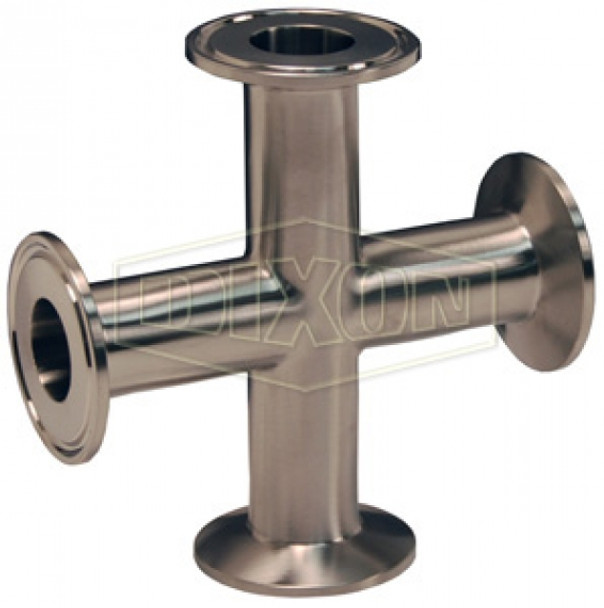

B9MP-R150 Clamp Cross - 1-1/2" 316L Stainless Steel
Dixon B9MP-R150 is a 1-1/2" sanitary clamp cross manufactured from 316L stainless steel for hygienic and process piping systems.
Part of Dixon's B9MP clamp-cross family, this fitting provides four sanitary clamp connections arranged in a cross configuration. It creates a four-way junction for sanitary process piping while maintaining removable clamp connections for cleaning, inspection, equipment service, and system maintenance.
Product Highlights
- Genuine Dixon sanitary clamp cross
- Manufacturer part number B9MP-R150
- 1-1/2" tube outside diameter
- 316L stainless steel construction
- Four sanitary clamp connections
- Four-way cross configuration
- Designed for hygienic and sanitary process piping
- Published center-to-end dimension: 2.750"
- Published overall cross dimension: 5.500"
- Published weight: 0.959 lb
- Break quantity: 1
- Optional package/box quantity: 1
- 304 stainless steel equivalent: B9MP-G150
Technical Specifications
| Brand | Dixon |
|---|---|
| Manufacturer Part Number | B9MP-R150 |
| Product Type | Clamp Cross |
| Series | B9MP |
| Tube O.D. | 1-1/2" |
| Material | 316L Stainless Steel |
| Connection Type | Sanitary Clamp |
| Number of Connections | 4 |
| Configuration | Cross |
| Center-to-End Dimension | 2.750" |
| Overall Cross Dimension | 5.500" |
| Published Weight | 0.959 lb |
| Break Quantity | 1 |
| Optional Package/Box Quantity | 1 |
| 304 Stainless Steel Equivalent | B9MP-G150 |
| Application | Hygienic and process piping branch connections |
Published Dimensions
| Tube O.D. | 1-1/2" |
|---|---|
| Center-to-End | 2.750" |
| Overall Cross Span | 5.500" |
| Published Weight | 0.959 lb |
The 1-1/2" B9MP clamp cross has a 2.750" center-to-end dimension, producing a 5.500" overall span across opposing clamp ends. When fabrication clearances or exact fit-up are critical, verify dimensions against the latest applicable Dixon drawing before installation.
316L Stainless Steel Construction
The B9MP-R150 is manufactured from 316L stainless steel, a corrosion-resistant material commonly used in hygienic and process piping systems.
316L stainless steel is frequently selected for sanitary applications where resistance to process fluids, cleaning chemicals, and demanding service environments is important.
Material suitability depends on the specific process media, concentration, temperature, cleaning chemistry, sanitation procedure, and operating conditions. Confirm compatibility for the application before installation.
Four-Way Clamp Cross Configuration
The B9MP-R150 provides four 1-1/2" sanitary clamp connections arranged around a common center point.
This configuration creates a compact four-way junction for sanitary process piping. Depending on system design, a clamp cross can be used where flow paths branch into multiple directions or where several process lines meet at a common junction.
All four connections use sanitary clamp interfaces, allowing the fitting to be removed from compatible piping assemblies when cleaning, inspection, maintenance, or system modification is required.
Sanitary Clamp Connections
Connection Benefits
- Four removable sanitary connections
- Fast assembly and disassembly
- Supports cleaning and inspection
- Useful for modular process piping
- Provides convenient maintenance access
Typical Joint Components
- Compatible mating sanitary ferrule
- Properly selected sanitary gasket
- Appropriate sanitary clamp
- Correctly aligned tubing or equipment connection
- Proper piping support
304 vs. 316L Version
B9MP-R150
- 1-1/2" tube O.D.
- 316L stainless steel
- Dixon R-series material configuration
- For systems requiring compatible 316L construction
B9MP-G150
- 1-1/2" tube O.D.
- 304 stainless steel
- Dixon G-series material configuration
- Same B9MP clamp-cross family
Typical Applications
Food & Beverage
- Food processing systems
- Beverage production
- Dairy processing
- Breweries
- Wineries and distilleries
Hygienic & Process Systems
- Pharmaceutical process piping
- Sanitary fluid-transfer systems
- Compatible chemical processing
- Process equipment manifolds
- Multi-branch process piping
Sanitary Fitting Selection
Dixon identifies B9MP-R150 by its 1-1/2" tube outside diameter. Confirm sanitary tube O.D. against the existing process piping before ordering.
Do not automatically substitute nominal pipe sizing for sanitary tube O.D. Sanitary tubing and conventional nominal pipe systems use different dimensional conventions.
Also confirm that 316L stainless steel is the required material and that all mating ferrules, gaskets, and clamps are compatible with the 1-1/2" sanitary connections.
Gasket & Clamp Selection
Sanitary Gasket
- Match gasket size to the 1-1/2" connection
- Select material for the process media
- Verify operating-temperature compatibility
- Verify compatibility with cleaning chemicals
- Inspect before assembly
Sanitary Clamp
- Use the proper clamp size and style
- Inspect clamp components for damage
- Align mating ferrule faces before tightening
- Follow applicable clamp installation procedures
- Do not use the clamp to correct piping misalignment
Standards & Sanitary Applications
Dixon documentation for this sanitary fitting family references 3-A Sanitary Standards for Sanitary Fittings, Standard Number 63-04 under Certificate Authorization Number 621.
Application-specific sanitary, regulatory, material, documentation, and installation requirements should still be confirmed for the individual process system before ordering or placing the fitting into service.
Installation
Confirm the 1-1/2" tube O.D., 316L stainless steel construction, and cross configuration before installation.
Inspect all four clamp faces for contamination, scratches, dents, deformation, or other damage that could interfere with proper gasket sealing.
Install properly sized sanitary gaskets between each pair of mating ferrule faces. Gasket material should be selected according to the process fluid, operating temperature, cleaning chemicals, sanitation procedures, and other system requirements.
Align mating connections before installing the sanitary clamps. Do not use the fitting or clamps to pull misaligned piping into position.
Properly support connected piping and equipment so excessive external loads are not transferred to the clamp cross or its sanitary joints.
After assembly, inspect all four connections and verify leak-free operation under appropriate system conditions before returning the process line to normal service.
Our team can help confirm your tube O.D., stainless steel grade, clamp size, gasket material, and mating sanitary components before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What size is Dixon B9MP-R150?
B9MP-R150 is a 1-1/2" tube O.D. sanitary clamp cross.
What material is B9MP-R150?
Dixon identifies B9MP-R150 as the 316L stainless steel version of the 1-1/2" B9MP clamp cross.
How many connections does B9MP-R150 have?
The fitting has four sanitary clamp connections arranged in a cross configuration.
What is the center-to-end dimension?
The published center-to-end dimension is 2.750".
What is the overall size across opposing ends?
The published overall span across opposing clamp ends is 5.500".
How much does B9MP-R150 weigh?
Dixon lists a published weight of 0.959 lb.
What is the 304 stainless steel equivalent?
B9MP-G150 is the corresponding 1-1/2" 304 stainless steel clamp cross.
What does the R designation identify?
Within this B9MP product family, the R-series part number identifies the 316L stainless steel version.
Are sanitary clamps included?
Do not assume clamps are included unless specifically stated in the GetPipe.com offering. Appropriate clamps are typically selected according to the mating connection and system requirements.
Are sanitary gaskets included?
Do not assume gaskets are included unless specifically stated in the offering. Select the proper gasket size and material for the process conditions.
What is a sanitary clamp cross used for?
A clamp cross creates four sanitary connections at a common junction and can be used where process piping needs to branch or converge in multiple directions.
Can B9MP-R150 be used in food and beverage systems?
Dixon identifies food processing, beverage, dairy, wineries, breweries, distilleries, and other sanitary/process markets for its hygienic fitting products. Confirm that the complete fitting assembly meets the requirements of the specific application.
Is the 1-1/2" size a tube O.D.?
Yes. Dixon identifies B9MP-R150 by a 1-1/2" tube outside diameter. Do not automatically substitute nominal pipe sizing.
What should I verify before ordering B9MP-R150?
Confirm the B9MP-R150 part number, 1-1/2" tube O.D., 316L stainless steel construction, required dimensions, mating sanitary connections, gasket material, and clamp requirements.
Important Ordering & Installation Notes
- This listing is for Dixon part number B9MP-R150.
- Product type is a sanitary clamp cross.
- Tube outside diameter is 1-1/2".
- Material is 316L stainless steel.
- Published center-to-end dimension is 2.750".
- Published overall span across opposing ends is 5.500".
- Dixon publishes a weight of 0.959 lb.
- Break quantity is 1.
- Optional package/box quantity is 1.
- Four sanitary clamp connections are provided.
- B9MP-G150 is the corresponding 304 stainless steel version.
- Verify tube O.D. before ordering.
- Do not confuse sanitary tube O.D. with nominal pipe size.
- Confirm 316L compatibility with process media and cleaning chemistry.
- Select sanitary gaskets separately unless specifically included in the offering.
- Select sanitary clamps separately unless specifically included in the offering.
- Verify gasket material for chemical and temperature compatibility.
- Inspect all four clamp faces before assembly.
- Properly support connected piping and equipment.
- Do not use the fitting or clamps to force misaligned piping into position.
- Verify complete system pressure and temperature limitations before operation.
- Follow applicable sanitary installation, cleaning, inspection, and process requirements.
