5/8" OD Yellow Coated Gas Connector with Straight Ball Valve - 1/2" FIP x 3/4" FIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

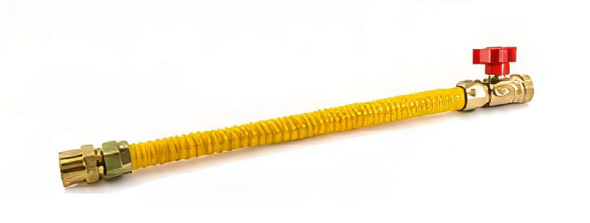

5/8" OD Yellow Coated Gas Connector with Straight Ball Valve - 1/2" FIP x 3/4" FIP
Charman Inc 5/8" OD Yellow Coated Gas Connectors with Straight Ball Valve provide a flexible gas connection with an integrated shutoff valve configuration. This family features a 1/2" FIP connection on one end and a 3/4" FIP straight ball valve connection on the other, with available lengths from 12" through 72" for different installation layouts.
The flexible corrugated connector construction helps bridge fixed gas piping and compatible equipment where rigid-pipe alignment may be impractical. Female threaded connections at both ends simplify installations where compatible male threaded connection points are provided, while the integrated straight ball valve adds an accessible gas shutoff point.
Product Highlights
- Charman Inc yellow coated gas connector
- 5/8" outside diameter
- 1/2" FIP connection
- 3/4" FIP straight ball valve connection
- Female threaded connections on both ends
- Integrated straight ball valve
- Flexible corrugated connector construction
- Yellow exterior coating
- Available in lengths from 12" through 72"
- Designed for compatible gas appliance and equipment connections
Technical Specifications
| Product Type | Yellow Coated Gas Connector with Straight Ball Valve |
|---|---|
| Brand | Charman Inc |
| Product Family | 800-58-A9 |
| Connector OD | 5/8" |
| Connection 1 | 1/2" FIP |
| Connection 2 | 3/4" FIP Straight Ball Valve |
| Connection Configuration | 1/2" Female Iron Pipe x 3/4" Female Iron Pipe Straight Ball Valve |
| Valve Style | Straight Ball Valve |
| Construction | Flexible Corrugated Gas Connector |
| Exterior | Yellow Coated |
| Available Lengths | 12", 18", 24", 30", 36", 48", 60" and 72" |
| Primary Application | Flexible Gas Appliance and Equipment Connections with Integrated Shutoff |
Understanding the Connection Configuration
This connector has a 1/2" FIP connection on one end and a 3/4" FIP straight ball valve on the other. Both ends are female threaded connections, but the nominal pipe sizes differ.
The 1/2" FIP end is intended to connect to a compatible 1/2" male threaded component, while the 3/4" FIP valve end connects to a compatible 3/4" male threaded component.
Why Choose a Connector with a Straight Ball Valve?
Flexible Installation
- Accommodates practical routing between fixed connection points
- Useful where rigid piping alignment is difficult
- Provides flexibility between gas piping and connected equipment
- Multiple lengths accommodate different installation layouts
- Helps simplify final appliance and equipment connections
Integrated Shutoff
- Includes a straight ball valve
- Provides an accessible shutoff point within the connection assembly
- 3/4" FIP valve-side connection
- 1/2" FIP connector-side connection
- Combines flexible connection and shutoff functionality in one configuration
Choosing the Correct Length
Measure the distance and planned routing between the gas supply and appliance or equipment connection before selecting a connector. Choose a length that provides adequate routing without requiring the connector to be stretched or placed under unnecessary tension.
Available lengths range from 12" through 72", allowing the connector to be matched more closely to the installation. Avoid selecting excessive length simply to create additional slack.
Common Applications
Gas-Fired Equipment
- Compatible gas appliances
- Commercial cooking equipment
- Heating equipment
- Mechanical equipment
- Other compatible gas-fired equipment
Installation & Replacement
- New equipment installations
- Replacement gas connector applications
- Maintenance projects
- Equipment connection updates
- Applications benefiting from an integrated straight shutoff valve
Available Connector Lengths
The 800-58-A9 connector family is available in eight lengths while maintaining the same 5/8" OD, 1/2" FIP x 3/4" FIP connection configuration, and straight ball valve design.
- 12"
- 18"
- 24"
- 30"
- 36"
- 48"
- 60"
- 72"
Female x Female Valve Connection
The 1/2" FIP x 3/4" FIP configuration provides female threaded connections on both ends while transitioning between two nominal pipe sizes. The straight ball valve is incorporated at the 3/4" FIP end.
Confirm the mating male thread sizes, valve accessibility, and installation orientation before ordering.
Ask Willy: Need Gas Connector Help?
Review the Yellow Coated Gas Connector specification sheet for product information, or use the complete Charman Inc connector catalog to compare available connector diameters, connection configurations, valve options, and lengths before ordering.
Installation & Selection Guidance
- Confirm that a 5/8" OD gas connector is appropriate for the intended installation.
- Confirm the required connection configuration is 1/2" FIP x 3/4" FIP with straight ball valve.
- Verify that the 1/2" FIP end mates with a compatible 1/2" male threaded connection.
- Verify that the 3/4" FIP valve end mates with a compatible 3/4" male threaded connection.
- Confirm the straight ball valve will remain accessible after installation.
- Select a connector length appropriate for the actual installation distance and routing.
- Do not stretch the connector to reach between connection points.
- Avoid sharp bends, kinks, crushing, twisting, or other connector damage.
- Route the connector so it is protected from physical damage.
- Inspect the connector, coating, valve, and end fittings before installation.
- Avoid contact with sharp edges or surfaces that could damage the connector or coating.
- Use connection and sealing practices appropriate for the gas piping system and applicable requirements.
- Leak-test completed gas connections using an appropriate method before placing equipment into service.
- Follow applicable fuel-gas codes, local requirements, equipment instructions, and connector documentation.
- Installation should be completed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Connection & Valve Configuration
This family uses a 1/2" FIP connection on one end and a 3/4" FIP straight ball valve on the other. Confirm both male mating thread sizes and that an integrated straight ball valve is appropriate for the installation.
Connector Length
Select from 12", 18", 24", 30", 36", 48", 60", or 72" according to the required installation distance and routing. Choose a length that permits proper installation without stretching or excessive slack.
Need Help Selecting a Gas Connector?
Our PVF specialists can help review your connector diameter, FIP requirements, ball valve configuration, required length, and installation conditions before you order.
Frequently Asked Questions
What size is this gas connector?
This connector family has a 5/8" outside diameter with a 1/2" FIP connection and a 3/4" FIP straight ball valve connection.
What connections does this connector have?
It has a 1/2" FIP female threaded connection on one end and a 3/4" FIP female threaded straight ball valve on the other.
Does this connector include a shutoff valve?
Yes. This connector configuration includes a straight ball valve at the 3/4" FIP end.
What lengths are available?
This listing includes 12", 18", 24", 30", 36", 48", 60", and 72" lengths.
What does FIP mean?
FIP identifies a female threaded pipe connection. Both ends of this connector are female threaded, with 1/2" FIP on one end and 3/4" FIP on the valve end.
Are both threaded connections the same size?
No. One connection is 1/2" FIP and the straight ball valve connection is 3/4" FIP.
What mating connections are required?
The 1/2" FIP end requires a compatible 1/2" male threaded connection, while the 3/4" FIP valve end requires a compatible 3/4" male threaded connection.
How do I choose the correct connector length?
Measure the required connection distance and consider the intended routing. Select a length that allows proper installation without stretching, kinking, twisting, or placing unnecessary tension on the connector.
Should the ball valve remain accessible?
Yes. The valve should remain accessible for normal operation and service in accordance with applicable installation requirements.
Should gas connections be leak-tested after installation?
Yes. Completed gas connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Important Ordering Notes
- This listing is for Charman Inc 5/8" OD yellow coated gas connectors with straight ball valve.
- Connection configuration is 1/2" FIP x 3/4" FIP straight ball valve.
- Both connector ends are female threaded connections.
- The connector transitions from 1/2" FIP to 3/4" FIP.
- The 3/4" FIP connection incorporates the straight ball valve.
- Select the required connector length from the available options.
- Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
- Confirm both mating male thread sizes before ordering.
