5/8" OD Yellow Coated Gas Connector - 1/2" MIP x 3/4" MIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

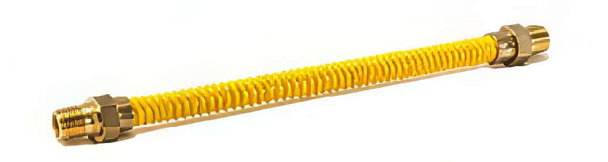

5/8" OD Yellow Coated Gas Connector - 1/2" MIP x 3/4" MIP
Charman Inc 5/8" OD Yellow Coated Gas Connectors provide a flexible connection for compatible gas-fired appliances and equipment. This configuration features a 1/2" MIP connection on one end and a 3/4" MIP connection on the other, with available lengths from 12" through 72" to accommodate a variety of installation layouts.
The flexible corrugated connector construction helps bridge fixed gas piping and compatible equipment where rigid-pipe alignment may be impractical. The unequal male-threaded ends also provide a direct transition between 1/2" and 3/4" female-threaded connection points.
Product Highlights
- Charman Inc yellow coated gas connector
- 5/8" outside diameter
- 1/2" MIP x 3/4" MIP connection configuration
- Male threaded connections on both ends
- Different nominal thread sizes at each end
- Flexible corrugated connector construction
- Yellow exterior coating
- Available in lengths from 12" through 72"
- Designed for compatible gas appliance and equipment connections
- Flexible design helps accommodate connection alignment and routing
Technical Specifications
| Product Type | Yellow Coated Gas Connector |
|---|---|
| Brand | Charman Inc |
| Product Family | 800-58-A2 |
| Connector OD | 5/8" |
| Connection 1 | 1/2" MIP |
| Connection 2 | 3/4" MIP |
| Connection Configuration | 1/2" Male Iron Pipe x 3/4" Male Iron Pipe |
| Construction | Flexible Corrugated Gas Connector |
| Exterior | Yellow Coated |
| Available Lengths | 12", 18", 24", 30", 36", 48", 60" and 72" |
| Primary Application | Flexible Gas Appliance and Equipment Connections |
Understanding the Connection Configuration
This connector has a 1/2" MIP connection on one end and a 3/4" MIP connection on the other. Both ends are male threaded connections, but the nominal pipe sizes are different.
This configuration is useful where one side of the installation requires a compatible 1/2" female threaded connection and the opposite side requires a compatible 3/4" female threaded connection.
Why Choose a Yellow Coated Gas Connector?
Flexible Installation
- Accommodates practical routing between fixed connection points
- Useful where rigid piping alignment is difficult
- Provides flexibility between gas piping and connected equipment
- Multiple lengths accommodate different installation layouts
- Helps simplify final appliance and equipment connections
Reducing Male Connections
- 1/2" MIP connection on one end
- 3/4" MIP connection on the opposite end
- Provides a direct transition between two nominal thread sizes
- Designed for compatible female threaded connections
- Available across multiple connector lengths
Choosing the Correct Length
Measure the distance and planned routing between the gas supply and appliance or equipment connection before selecting a connector. Choose a length that provides adequate routing without requiring the connector to be stretched or placed under unnecessary tension.
Available lengths range from 12" through 72", allowing the connector to be matched more closely to the installation. Avoid selecting excessive length simply to create additional slack.
Common Applications
Gas-Fired Equipment
- Compatible gas appliances
- Commercial cooking equipment
- Heating equipment
- Mechanical equipment
- Other compatible gas-fired equipment
Installation & Replacement
- New equipment installations
- Replacement gas connector applications
- Maintenance projects
- Equipment connection updates
- Applications requiring different male thread sizes at each end
Available Connector Lengths
The 800-58-A2 connector family is available in eight lengths while maintaining the same 5/8" OD and 1/2" MIP x 3/4" MIP connection configuration.
- 12"
- 18"
- 24"
- 30"
- 36"
- 48"
- 60"
- 72"
Male x Male Reducing Connection
The 1/2" MIP x 3/4" MIP configuration allows the connector to bridge two compatible female-threaded connection points of different nominal sizes. This can reduce the need for an additional threaded reducing adapter when this exact connection combination matches the installation.
Confirm which side of the installation requires the 1/2" male connection and which side requires the 3/4" male connection before ordering.
Ask Willy: Need Gas Connector Help?
Review the Yellow Coated Gas Connector specification sheet for product information, or use the complete Charman Inc connector catalog to compare available connector diameters, connection configurations, and lengths before ordering.
Installation & Selection Guidance
- Confirm that a 5/8" OD gas connector is appropriate for the intended installation.
- Confirm that the required connection configuration is 1/2" MIP x 3/4" MIP.
- Verify that the mating connections are compatible female threaded connections.
- Confirm which end of the installation requires the 1/2" MIP connection.
- Confirm which end requires the 3/4" MIP connection.
- Select a connector length appropriate for the actual installation distance and routing.
- Do not stretch the connector to reach between connection points.
- Avoid sharp bends, kinks, crushing, twisting, or other connector damage.
- Route the connector so it is protected from physical damage.
- Inspect the connector, coating, and end fittings before installation.
- Avoid contact with sharp edges or surfaces that could damage the connector or coating.
- Use connection and sealing practices appropriate for the gas piping system and applicable requirements.
- Leak-test completed gas connections using an appropriate method before placing equipment into service.
- Follow applicable fuel-gas codes, local requirements, equipment instructions, and connector documentation.
- Installation should be completed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Connection Type
This family is specifically configured with a 1/2" MIP connection on one end and a 3/4" MIP connection on the other. Both connector ends are male threaded connections.
Connector Length
Select from 12", 18", 24", 30", 36", 48", 60", or 72" according to the required installation distance and routing. Choose a length that permits proper installation without stretching or excessive slack.
Need Help Selecting a Gas Connector?
Our PVF specialists can help review your connector diameter, male thread sizes, required length, appliance or equipment connection, and installation conditions before you order.
Frequently Asked Questions
What size is this gas connector?
This connector family has a 5/8" outside diameter with a 1/2" MIP connection on one end and a 3/4" MIP connection on the other.
What connections does this connector have?
It has one 1/2" MIP male threaded connection and one 3/4" MIP male threaded connection.
What lengths are available?
This listing includes 12", 18", 24", 30", 36", 48", 60", and 72" lengths.
What does MIP mean?
MIP identifies a male threaded pipe connection. Both ends of this connector are male threaded.
Are both threaded ends the same size?
No. One end is 1/2" MIP and the opposite end is 3/4" MIP.
What mating connections are required?
The 1/2" MIP end requires a compatible 1/2" female threaded connection, while the 3/4" MIP end requires a compatible 3/4" female threaded connection.
How do I choose the correct connector length?
Measure the required connection distance and consider the intended routing. Select a length that allows proper installation without stretching, kinking, twisting, or placing unnecessary tension on the connector.
Can the connector be sharply bent?
The connector should be routed without sharp bends, kinks, twisting, crushing, or other conditions that could damage it.
Should gas connections be leak-tested after installation?
Yes. Completed gas connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Where can I find other gas connector configurations?
Use the Charman Inc Yellow Coated Gas Connector catalog linked in the Willy section to compare other connector diameters, connection styles, and available lengths.
Important Ordering Notes
- This listing is for Charman Inc 5/8" OD yellow coated gas connectors.
- Connection configuration is 1/2" MIP x 3/4" MIP.
- Both connector ends are male threaded connections.
- The connector transitions between 1/2" and 3/4" nominal thread sizes.
- Select the required connector length from the available options.
- Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
- Confirm both mating connection sizes and thread types before ordering.
- Confirm connector routing and required installation length before ordering.
- Do not install a connector that is kinked, twisted, crushed, or otherwise damaged.
- Review the linked Charman Inc specification sheet and connector catalog for additional product information.
- Installation should comply with applicable fuel-gas codes, equipment requirements, and local regulations.
- Gas connections should be installed and tested by qualified personnel.
