Charman Inc.

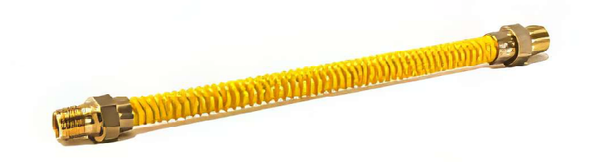

5/8" OD Yellow Coated Gas Connector - 1/2" MIP x 1/2" MIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
5/8" OD Yellow Coated Gas Connector - 1/2" MIP x 1/2" MIP
Charman Inc 5/8" OD Yellow Coated Gas Connectors provide a flexible connection for compatible gas-fired appliances and equipment. This configuration features 1/2" MIP connections on both ends and is available in multiple lengths from 12" through 72" to accommodate a wide range of installation layouts.
The flexible corrugated connector construction helps bridge the connection between fixed gas piping and compatible appliances or equipment where rigid-pipe alignment may be impractical. The equal male-threaded ends simplify installations requiring 1/2" male pipe connections at both sides of the connector.
Product Highlights
- Charman Inc yellow coated gas connector
- 5/8" outside diameter
- 1/2" MIP x 1/2" MIP connections
- Male threaded connection on both ends
- Flexible corrugated connector construction
- Yellow exterior coating
- Available in lengths from 12" through 72"
- Multiple length options for different installation layouts
- Designed for compatible gas appliance and equipment connections
- Flexible design helps accommodate connection alignment and routing
Technical Specifications
| Product Type | Yellow Coated Gas Connector |
|---|---|
| Brand | Charman Inc |
| Product Family | 800-58-A1 |
| Connector OD | 5/8" |
| Connection 1 | 1/2" MIP |
| Connection 2 | 1/2" MIP |
| Connection Configuration | 1/2" Male Iron Pipe x 1/2" Male Iron Pipe |
| Construction | Flexible Corrugated Gas Connector |
| Exterior | Yellow Coated |
| Available Lengths | 12", 18", 24", 30", 36", 48", 60" and 72" |
| Primary Application | Flexible Gas Appliance and Equipment Connections |
Understanding the Connection Configuration
This connector has a 1/2" MIP connection on both ends. MIP identifies a male threaded pipe connection, so each end is designed to connect to a compatible 1/2" female threaded connection.
Before ordering, confirm that both the gas-supply side and appliance or equipment side require compatible 1/2" female threaded connections.
Why Choose a Yellow Coated Gas Connector?
Flexible Installation
- Accommodates practical routing between fixed connection points
- Useful where rigid piping alignment is difficult
- Provides flexibility between gas piping and connected equipment
- Multiple lengths accommodate different installation layouts
- Helps simplify final appliance and equipment connections
Equal Male Connections
- 1/2" MIP connection on both ends
- Both threaded ends use the same nominal pipe size
- Designed for compatible female threaded connections
- Straightforward connection configuration
- Available across multiple connector lengths
Choosing the Correct Length
Measure the distance and planned routing between the gas supply and the appliance or equipment connection before selecting a connector. Choose a length that provides adequate routing without requiring the connector to be stretched or placed under unnecessary tension.
Available lengths range from 12" through 72", allowing the connector to be matched more closely to the installation. Avoid selecting excessive length simply to create additional slack.
Common Applications
Gas-Fired Equipment
- Compatible gas appliances
- Commercial cooking equipment
- Heating equipment
- Mechanical equipment
- Other compatible gas-fired equipment
Installation & Replacement
- New equipment installations
- Replacement gas connector applications
- Maintenance projects
- Equipment connection updates
- Applications requiring flexibility between fixed connection points
Available Connector Lengths
The 800-58-A1 connector family is available in eight lengths while maintaining the same 5/8" OD and 1/2" MIP x 1/2" MIP connection configuration.
- 12"
- 18"
- 24"
- 30"
- 36"
- 48"
- 60"
- 72"
Male x Male Connection Applications
The male x male connection configuration is designed for installations where both mating points provide compatible female threaded connections. Because both connector ends are 1/2" MIP, no change in nominal thread size occurs from one end of the connector to the other.
Confirm the connection type at both ends of the installation before ordering. A different connector configuration may be required when one or both mating components use male threads.
Ask Willy: Need Gas Connector Help?
Review the Yellow Coated Gas Connector specification sheet for product information, or use the complete Charman Inc connector catalog to compare available connector diameters, connection configurations, and lengths before ordering.
Installation & Selection Guidance
- Confirm that a 5/8" OD gas connector is appropriate for the intended installation.
- Confirm that both required connections are 1/2" MIP.
- Verify that both mating components provide compatible female threaded connections.
- Select a connector length appropriate for the actual installation distance and routing.
- Do not stretch the connector to reach between connection points.
- Avoid sharp bends, kinks, crushing, twisting, or other connector damage.
- Route the connector so it is protected from physical damage.
- Inspect the connector, coating, and end fittings before installation.
- Avoid contact with sharp edges or surfaces that could damage the connector or coating.
- Use connection and sealing practices appropriate for the gas piping system and applicable requirements.
- Leak-test completed gas connections using an appropriate method before placing equipment into service.
- Follow applicable fuel-gas codes, local requirements, equipment instructions, and connector documentation.
- Installation should be completed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Connection Type
This family is specifically configured with 1/2" MIP connections at both ends. Confirm that two male threaded connector ends match the installation before ordering.
Connector Length
Select from 12", 18", 24", 30", 36", 48", 60", or 72" according to the required installation distance and routing. Choose a length that permits proper installation without stretching or excessive slack.
Need Help Selecting a Gas Connector?
Our PVF specialists can help review your connector diameter, MIP connection requirements, required length, appliance or equipment connection, and installation conditions before you order.
Frequently Asked Questions
What size is this gas connector?
This connector family has a 5/8" outside diameter with 1/2" nominal male threaded connections on both ends.
What connections does this connector have?
It has a 1/2" MIP male threaded connection on each end.
What lengths are available?
This listing includes 12", 18", 24", 30", 36", 48", 60", and 72" lengths.
What does MIP mean?
MIP identifies a male threaded pipe connection. Both ends of this connector use 1/2" MIP connections.
Are both threaded ends the same size?
Yes. Both ends are 1/2" MIP.
What mating connection is required?
Each 1/2" MIP connector end requires a compatible female threaded connection.
How do I choose the correct connector length?
Measure the required connection distance and consider the intended routing. Select a length that allows proper installation without stretching, kinking, twisting, or placing unnecessary tension on the connector.
Can the connector be sharply bent?
The connector should be routed without sharp bends, kinks, twisting, crushing, or other conditions that could damage it.
Should gas connections be leak-tested after installation?
Yes. Completed gas connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Where can I find other gas connector configurations?
Use the Charman Inc Yellow Coated Gas Connector catalog linked in the Willy section to compare other connector diameters, connection styles, and available lengths.
Important Ordering Notes
- This listing is for Charman Inc 5/8" OD yellow coated gas connectors.
- Connection configuration is 1/2" MIP x 1/2" MIP.
- Both connector ends are male threaded connections.
- Both threaded connections are 1/2" nominal size.
- Select the required connector length from the available options.
- Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
- Confirm both mating connections are compatible with 1/2" male pipe threads before ordering.
- Confirm connector routing and required installation length before ordering.
- Do not install a connector that is kinked, twisted, crushed, or otherwise damaged.
- Review the linked Charman Inc specification sheet and connector catalog for additional product information.
- Installation should comply with applicable fuel-gas codes, equipment requirements, and local regulations.
- Gas connections should be installed and tested by qualified personnel.
