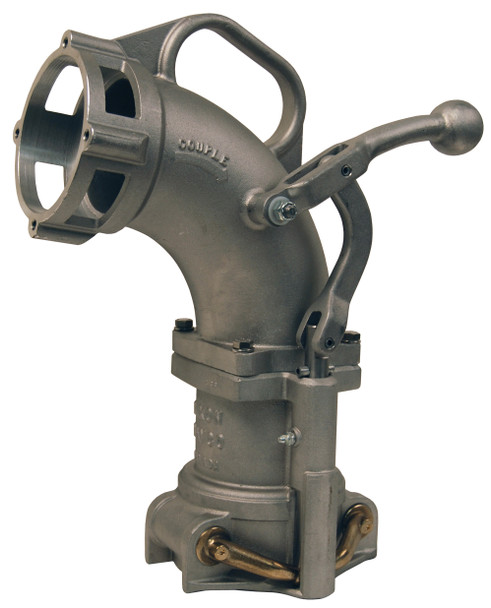

4" 6200A Side Lever Type Drop Elbow

The Dixon 6200A Side Lever Type Drop Elbow is a rugged fuel transfer fitting engineered for petroleum cargo tank and underground storage tank operations. Constructed from durable cast aluminum, this drop elbow provides dependable performance and long service life in demanding fuel delivery environments.

Featuring a 4-inch male adapter inlet and standard 17-3/4 inch height configuration, the 6200A is designed for reliable fuel transfer connections while supporting a wide range of gasoline, diesel, biodiesel, and ethanol-blended fuels.

Key Features

• Side lever type drop elbow design
• 4" male adapter inlet connection
• Heavy-duty cast aluminum construction
• Standard 17-3/4" overall height
• 10-7/8" ground clearance
• Solid bronze locking arms for durability
• Greaseable lever stem design
• Acetal bushings for smooth operation
• Bolt-on inlet construction
• Compatible with gasoline, diesel, ULSD, ethanol blends, and biodiesel fuels

Construction Details

The modular cast aluminum body provides strength while maintaining manageable weight for fuel delivery operations. Solid bronze locking arms offer enhanced wear resistance and dependable engagement during repeated loading and unloading cycles.

Acetal bushings help ensure smooth lever movement while reducing friction and wear. The greaseable lever stem design allows routine maintenance to maximize service life.

A bolt-on inlet construction simplifies serviceability and component replacement when required.

Important Notes

Designed for petroleum tank truck, fuel delivery, and underground storage tank transfer applications.

Compatible with gasoline, diesel, ULSD, E10, E20, E85, E100, B2, and B20 fuel products.

Follow manufacturer recommendations for installation, inspection, and maintenance procedures.
