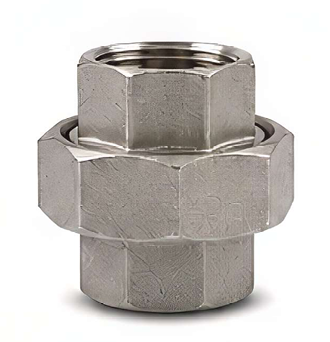

316 Stainless Steel 150# Threaded Union - SP114
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
316 Stainless Steel 150# Threaded Union - SP114
Charman 316 Stainless Steel SP114 Threaded Unions provide a serviceable connection between compatible threaded piping components while allowing the joint to be separated without rotating the adjoining pipe. Manufactured from 316 stainless steel, these unions are available in nominal sizes from 1/8" through 3" for plumbing, industrial, process, maintenance, and general piping applications.
The SP114 Union uses a multi-piece threaded design that allows the connection to be assembled or disconnected at the union body. This makes it useful near valves, pumps, equipment, and piping sections that may require future maintenance, replacement, or removal.
Product Highlights
- SP114 union design
- Threaded connection style
- 316 stainless steel construction
- Ten nominal sizes available
- Designed for serviceable piping connections
- Available in sizes ranging from 1/8" through 3"
- Allows disconnection without rotating adjoining piping sections
- 316 stainless steel offers enhanced corrosion resistance for suitable service environments
What Is an SP114 Threaded Union?
A 316 stainless steel SP114 threaded union is a multi-piece fitting designed to connect two compatible threaded piping components while allowing the connection to be separated when service or removal is required.
Unlike a standard coupling, which typically requires piping movement or rotation during disassembly, a union can be separated at the union connection point. This makes it especially useful near equipment and components that may require future maintenance.
Why Choose a 316 Stainless Steel SP114 Threaded Union?
316 Stainless Steel Construction
- Durable construction
- Enhanced corrosion resistance
- Designed for threaded piping
- Suitable for compatible piping systems
- Useful across industrial and process applications
Serviceable Union Design
- Multi-piece fitting
- Threaded connection design
- Allows convenient disassembly
- Ten nominal sizes available
- Useful where piping may require future service
Common Applications
Plumbing & General Piping
- Piping repairs
- Valve connections
- Piping modifications
- Serviceable pipe joints
- General-purpose piping installations
Industrial & Process Use
- Pump connections
- Equipment piping
- Maintenance work
- Process piping systems
- Compatible stainless steel piping installations
Construction Details
316 Stainless Steel Body
- Multi-piece construction
- SP114 union configuration
- Designed for serviceable connections
- Suitable for compatible threaded systems
- 316 stainless steel provides enhanced corrosion resistance for suitable applications
Threaded Union Design
- Two piping connections
- Central union connection
- Designed for easy disassembly
- Matching nominal connection sizes
- Both mating threads should be confirmed before installation
Available SP114 Union Sizes
The 316 Stainless Steel 150# Threaded Union - SP114 is available in 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", and 3" nominal sizes. Each size has its own Charman part number for accurate ordering.
The ten-size range allows the same SP114 Union family to be used across both smaller and larger threaded piping systems. Match the union size to both mating piping connections before ordering.
Union vs. Coupling
SP114 Union
- Serviceable connection
- Multi-piece fitting design
- Allows joint disassembly
- Does not require pipe rotation to separate
- Useful near equipment and serviceable components
SP114 Coupling
- Straight connection
- Single fitting body
- Joins two threaded components
- Available as a separate Charman fitting
- Used where routine disassembly is not required
Where a Charman SP114 Union Makes Sense
- Near valves and pumps
- During threaded piping repairs
- For equipment connection points
- Where 316 stainless steel construction is appropriate
- For compatible plumbing, industrial, and process piping systems
- When a threaded connection may need future removal without rotating the adjoining pipe
Installation & Selection Considerations
- Select the union size that matches the piping.
- Confirm both mating threads are compatible before installation.
- Inspect sealing and threaded surfaces for damage or contamination.
- Use a thread-sealing method appropriate for the intended piping system.
- Verify pressure, temperature, media, material, and installation requirements before use.
Product Selection Considerations
Nominal Size
Select the 316 Stainless Steel 150# Threaded Union - SP114 according to the required nominal pipe size. This listing includes sizes from 1/8" through 3".
Service Requirements
Choose a union where the piping connection may need to be separated for maintenance, equipment replacement, or system modification. Confirm all thread and service requirements before ordering.
Review the Charman Inc stainless steel fittings specification sheet for product and dimensional information on the SP114 threaded union, or use the complete stainless steel fittings catalog to compare available fitting styles, configurations, and sizes before ordering.
Need Help Selecting a Stainless Steel Pipe Fitting?
Our industrial PVF specialists can help review your pipe size, connection type, stainless steel requirements, application, and installation conditions before you order.
Frequently Asked Questions
What material is the SP114 Union?
Charman identifies this product family as a 316 stainless steel fitting.
Are these unions threaded?
Yes. These SP114 Unions are designed for compatible threaded piping connections.
What sizes are available?
This listing includes 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", and 3" nominal sizes.
What is an SP114 Union used for?
A union joins compatible threaded piping while allowing the connection to be separated for maintenance or component removal.
Which Charman SKUs are included?
The included part numbers are 316510, 316511, 316512, 316513, 316514, 316515, 316516, 316517, 316518, and 316520.
Why use a union instead of a coupling?
A union can be disconnected without rotating the adjoining piping, making it useful where future service or component replacement is expected.
Where can I review Charman stainless steel fitting information?
The Charman Stainless Steel Fittings Spec Sheet and Complete Catalog are linked directly above for additional product and fitting information.
What should I confirm before ordering?
Confirm nominal size, mating threads, material requirements, pressure, temperature, media, sealing requirements, and installation conditions before ordering.
Important Ordering & Installation Notes
- Ten nominal sizes are available.
- Match the union to both mating connection sizes.
- Review the supplied Charman documents for additional fitting information.
- Confirm thread compatibility and union sealing requirements before installation.
- Verify material, pressure, temperature, media, connection, and installation requirements before service.
