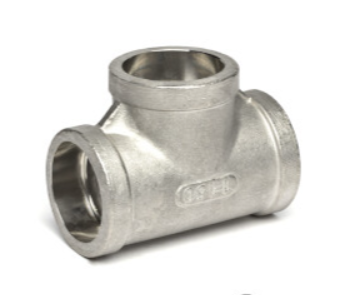

316 Stainless Steel 150# Socket Weld Tee
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
316 Stainless Steel 150# Socket Weld Tee
316 Stainless Steel 150# Socket Weld Tees provide a three-way welded connection for branching or combining piping runs. Manufactured from 316 stainless steel, these SP114 pattern fittings feature socket-weld connections at all three openings for compatible stainless steel piping systems.
Available in nominal pipe sizes from 1/2" through 2", these equal tees provide the same nominal connection size at all three openings, with a straight-through run and a 90-degree branch.
Product Highlights
- 316 stainless steel construction
- 150 lb class fitting
- Three-way equal tee configuration
- Socket-weld connections at all three openings
- SP114 pattern
- Provides a 90-degree branch from the straight-through run
- Equal nominal pipe size at all three connections
- Designed for welded stainless steel piping systems
- Available in sizes from 1/2" through 2"
- Manufactured by Service Metal
Technical Specifications
| Manufacturer | Service Metal |
|---|---|
| Product Type | Equal Tee |
| Material | 316 Stainless Steel |
| Pressure Class | 150 lb |
| Connection Type | Socket Weld |
| Number of Connections | 3 |
| Configuration | Equal Tee |
| Pattern | SP114 Pattern |
| Available Sizes | 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2" |
| Series | SSPSW6T |
316 Stainless Steel Construction
316 stainless steel offers corrosion resistance for industrial, commercial, mechanical, and process piping applications where this material grade is compatible with the service conditions.
Material suitability should be confirmed according to the conveyed media, operating temperature, pressure, surrounding environment, and applicable piping specifications.
Three-Way Socket Weld Connection
Equal Tee Configuration
- Three openings of the same nominal pipe size
- Straight-through piping run
- 90-degree branch connection
- Useful for branching welded piping systems
- Compact three-way fitting configuration
Socket Weld Connections
- Socket-weld connection at all three openings
- Pipe inserts into each fitting socket before welding
- Creates permanent welded piping joints
- Does not rely on threaded connections
- Suitable for shop fabrication and field installation
Available Sizes
- 1/2"
- 3/4"
- 1"
- 1-1/4"
- 1-1/2"
- 2"
Performance Features
150 lb Class
Designed as a 150 lb class stainless steel socket-weld fitting for compatible piping applications.
Socket Weld Design
Socket-weld connections at all three openings provide permanent welded joints for compatible stainless steel piping.
316 Stainless Steel
316 stainless steel construction provides corrosion resistance for compatible industrial and mechanical piping applications.
Common Applications
Industrial & Process Piping
- Industrial piping systems
- Process piping
- Utility piping
- Equipment connections
- Branch piping layouts
- Fabricated piping assemblies
Commercial & Mechanical Piping
- Commercial mechanical systems
- Stainless steel piping assemblies
- Equipment rooms
- Distribution piping
- Welded piping systems
- Applications requiring 316 stainless steel fittings
Selecting the Correct Tee
Select the tee according to the nominal pipe size required by the piping system. These fittings are manufactured from 316 stainless steel and use socket-weld connections at all three openings.
These are equal tees, meaning all three connections are the same nominal size. If the branch requires a different nominal size, select a reducing tee instead.
Ask Willy: Need Pipe Size Help?
Use our common pipe diameters and wall thickness chart to help confirm pipe sizing before ordering. Additional product information is available in the tee specification sheet, along with a Certificate of Conformance.
Product Documentation
Product Specification Sheet
Review dimensional and product information for the 150# stainless steel socket weld tee.
Pipe Size Chart
Reference common pipe diameters and wall thicknesses to help confirm the correct nominal pipe size for your application.
Certificate of Conformance
Certificate of Conformance documentation is available for product and project documentation requirements.
Installation & Selection Guidance
- Confirm the required nominal pipe size before ordering.
- Confirm that 316 stainless steel is compatible with the intended service.
- Verify that socket-weld connections are required for the piping system.
- Confirm that an equal three-way tee is appropriate for the piping layout.
- Prepare pipe and fitting surfaces according to the applicable welding procedure.
- Maintain appropriate insertion clearance when assembling socket-weld joints.
- Use welding procedures appropriate for 316 stainless steel piping components.
- Confirm pressure and temperature requirements for the complete piping system.
- Inspect completed welds according to applicable project requirements.
- Installation should be performed by qualified personnel.
- Follow applicable piping codes, specifications, and welding procedures.
Need Help Selecting Stainless Steel Fittings?
Our industrial PVF specialists can help review your pipe size, connection requirements, stainless steel material, and application before you order.
Frequently Asked Questions
What is a socket weld tee used for?
A socket weld tee provides a three-way connection in a welded piping system, with a straight-through run and a 90-degree branch.
What material are these tees made from?
These tees are manufactured from 316 stainless steel.
What connections does this tee use?
These tees use socket-weld connections at all three openings.
Are all three openings the same size?
Yes. These are equal tees, so all three connections are the same nominal pipe size.
What pressure class are these fittings?
These stainless steel socket weld tees are 150 lb class fittings.
What sizes are available?
Available nominal pipe sizes are 1/2", 3/4", 1", 1-1/4", 1-1/2", and 2".
Is this a reducing tee?
No. These are equal tees. Select a reducing tee when the branch connection needs a different nominal size.
Is this fitting threaded?
No. These tees use socket-weld connections rather than NPT threaded connections.
Important Ordering Notes
- 316 stainless steel socket weld equal tee
- 150 lb class fitting
- Socket-weld connections at all three openings
- Equal nominal connection size at all three openings
- SP114 pattern
- Available in nominal pipe sizes from 1/2" through 2"
- Not an NPT threaded tee
- Not a reducing tee
- Select the correct nominal pipe size before ordering.
- Verify 316 stainless steel compatibility with the intended application.
- Confirm system pressure, temperature, welding, and installation requirements.
- Installation should be performed by qualified personnel in accordance with applicable piping codes and procedures.
