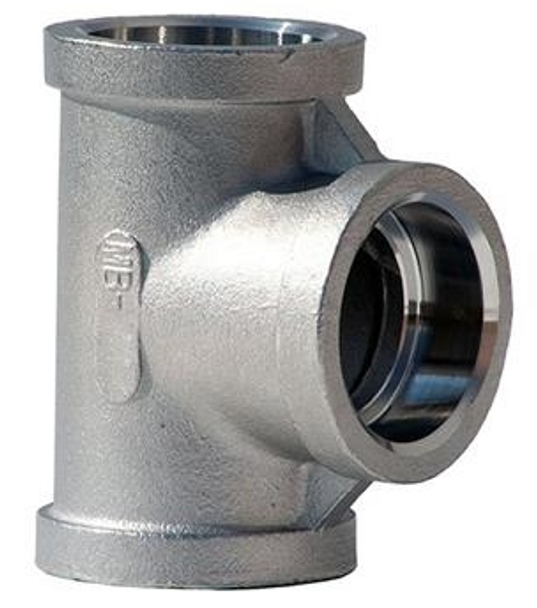

150# Cast Stainless Socket Weld Tee 316

Product Highlights

• ASC / SCI cast stainless steel fitting
• Figure S3716T
• 316 stainless steel
• 150# configuration
• Three-way tee configuration
• Three socket-weld connections
• Straight-through run with perpendicular branch
• Cast stainless construction
• 316 stainless castings conform to ASTM A351 ACI Grade CF8M
• Designed for compatible stainless steel socket-weld piping systems

A socket weld tee provides three piping connections in a single fitting.

Two opposing socket-weld openings form the straight-through main run, while the third opening forms a perpendicular branch connection.

Confirm that the piping layout specifically requires a tee configuration before fabrication or installation.

ASC identifies the 150# Cast 316 Stainless Socket Weld Tee as Figure S3716T.

The corresponding 304 stainless steel version is identified separately as Figure S3714T.

No size, dimensional, part-number, packing, or weight tables have been added to this page.

This fitting uses cast 316 stainless steel construction.

ASC identifies the product as an ASTM A351 casting, and the SCI stainless fitting family identifies CF8M as the 316 stainless casting grade.

The cast fitting body incorporates three socket-weld openings to form a permanent three-way piping connection.

This product is the 316 stainless steel version of the ASC / SCI 150# cast socket-weld tee family.

The 316 stainless casting designation used within this fitting family is ASTM A351 ACI Grade CF8M.

Confirm compatibility between the fitting material, adjoining pipe, process media, welding procedure, and overall system requirements before installation.

The tee uses socket-weld connections at all three openings.

Each adjoining pipe section is inserted into the corresponding fitting socket before the joint is welded in place.

Proper pipe preparation, insertion, alignment, branch orientation, and welding procedures should be followed for the intended piping system.

The supplied SCI Stainless Weld Fittings Catalog is included as an additional stainless fitting reference.

That catalog states that SCI stainless weld fittings conform to ASTM A403 Grade 304/304L & 316/316L, ASTM A960, and MSS SP-43. :contentReference[oaicite:2]{index=2}

Because this product is a cast socket-weld tee, use the supplied ASC 150# Stainless Socket Weld information and SCI Heavy Pattern catalog as the more product-specific references for Figure S3716T.

The supplied GetPipe.com Common Diameters and Wall Thicknesses PDF is included as a general adjoining-pipe reference.

Use it when checking nominal pipe size, outside diameter, and schedule-related wall-thickness information for compatible piping.

The pipe chart should not be interpreted as providing this tee's socket depth, center-to-end dimensions, branch dimensions, or fitting weight.

The 150# Cast Stainless Socket Weld Tee 316 is intended for compatible piping systems requiring a three-way branch connection using welded socket connections.

Final suitability should be confirmed against 316 stainless steel material requirements, connection style, adjoining pipe, branch orientation, welding requirements, operating conditions, process media, and overall system design.

• Confirm that the installation requires a 150#, 316 stainless steel socket-weld tee.
• Verify compatibility between all three fitting sockets and the adjoining pipe.
• Confirm the main-run and branch orientation before fabrication.
• Use appropriate pipe preparation, insertion, alignment, and welding procedures.
• Review the supplied ASC / SCI socket-weld information as the product-specific reference, with the stainless weld catalog and pipe chart used as supporting references.
