150# Cast Stainless Socket Weld 45 Elbow 316
- SKU:
- S3716F
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

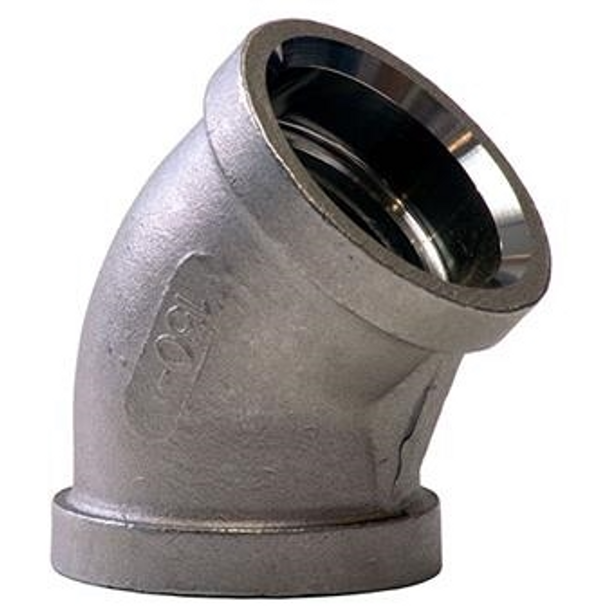

150# Cast Stainless Socket Weld 45 Elbow 316
ASC / SCI 150# Cast 316 Stainless Socket Weld 45° Elbows provide a durable 45-degree directional change for compatible stainless steel socket-weld piping systems.
Manufactured from cast 316 stainless steel, the S3716F elbow uses socket-weld connections on both ends for a permanent welded connection in industrial, chemical, petroleum transfer, and process piping applications.
Product Highlights
- ASC / SCI cast stainless fitting
- Figure S3716F elbow
- 316 stainless steel construction
- 150# fitting configuration
- Socket Weld x Socket Weld
- 45° directional change
Technical Specifications
| Product Type | Cast Stainless Steel Socket Weld 45° Elbow |
|---|---|
| Brand | ASC / SCI |
| Figure | S3716F |
| Material | 316 Stainless Steel |
| Material Standard | ASTM A351 |
| Fitting Class | 150# |
| Configuration | 45° Elbow |
| Connections | Socket Weld x Socket Weld |
| Construction | Cast Stainless Steel |
| Documentation | CMTRs Available Upon Request |
Construction Details
The SCI S3716F is a 150# cast stainless steel socket-weld 45° elbow manufactured in 316 stainless steel. The stainless steel casting material conforms to ASTM A351.
The elbow incorporates socket-weld openings at both ends and provides a 45-degree directional change between compatible sections of stainless steel pipe.
Its cast stainless construction provides corrosion resistance for compatible process environments, while the socket-weld design creates permanent welded piping connections.
45° Elbow Design & Typical Applications
Socket Weld Elbow Design
- 45° directional change
- Two socket-weld ends
- Cast 316 stainless body
- Compact fitting configuration
- Permanent welded connections
Typical Applications
- Industrial process piping
- Chemical processing systems
- Stainless steel piping
- Petroleum transfer systems
- General industrial service
Installation & Selection Considerations
- Confirm 316 stainless is required.
- Verify both pipe connections.
- Confirm socket-weld compatibility.
- Use proper welding procedures.
- Maintain proper elbow alignment.
Use the supplied ASC / SCI documents to review the 150# socket-weld fitting family, stainless steel fitting information, and adjoining pipe diameter and wall-thickness references.
Need Help Selecting a 316 Stainless Socket Weld 45° Elbow?
Need help confirming material, fitting class, socket-weld connections, or compatibility with your stainless steel piping system? The GetPipe.com Team can help.
Frequently Asked Questions
What is the SCI figure for this 316 socket-weld 45° elbow?
This 150# cast 316 stainless steel socket-weld 45° elbow is identified as Figure S3716F.
What material is the elbow?
The fitting is manufactured from cast 316 stainless steel.
What material standard applies to the casting?
The stainless steel casting material conforms to ASTM A351.
What connections does the elbow use?
The elbow uses socket-weld connections at both ends for welded installation into compatible piping.
What direction change does this elbow provide?
The fitting changes the direction of the piping system by 45 degrees.
Is 150# the same as a universal 150 PSI rating?
No. The 150# designation identifies the fitting family or class and should not be treated as a universal 150 PSI system pressure rating.
Are material test reports available?
Yes. CMTRs are available upon request for applicable SCI stainless steel fittings.
What should I confirm before ordering?
Confirm 316 stainless construction, the required fitting class, pipe connections, and socket-weld compatibility.
Important Ordering & Installation Notes
- Confirm Figure S3716F.
- Verify 316 stainless construction.
- Check both pipe connections.
- Follow socket-weld procedures.
- Confirm system compatibility.
