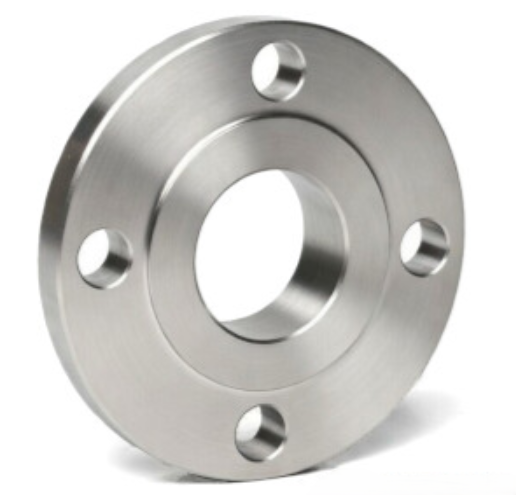

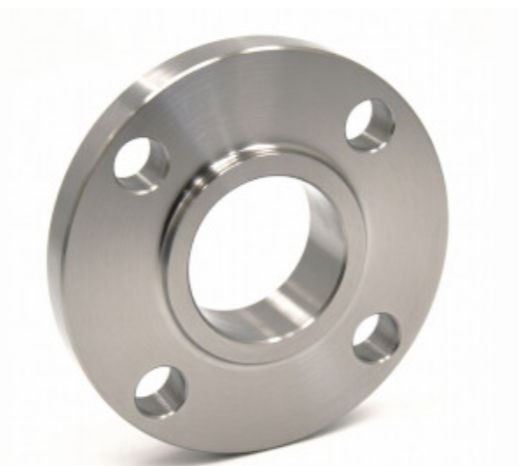

304 Stainless Steel 300# Slip-On Raised Face Flange
- Availability:
- Allow 1-2 Days to Ship
- Weight:
- 0.00 LBS
Description
304 Stainless Steel 300# Slip-On Raised Face Flange
304 Stainless Steel Class 300 Slip-On Raised Face Flanges provide a durable, corrosion-resistant connection for industrial and commercial piping systems. Manufactured from ASTM A/SA182 F304/L forged stainless steel, these flanges are designed to slip over the outside diameter of pipe for alignment before welding, creating a secure flanged connection with dependable sealing performance.
Designed to conform to ASME B16.5 dimensional standards, each slip-on flange features a precision-machined Raised Face (RF) sealing surface for use with compatible Class 300 raised face flanges and gaskets. The slip-on design allows the pipe to pass through the flange bore before fillet welding, making alignment and installation straightforward for a wide range of process piping applications.
Product Highlights
- ASTM A/SA182 F304/L stainless steel construction
- ASME B16.5 compliant dimensions
- Class 300 pressure class
- Slip-on flange design
- Raised Face (RF) sealing surface
- Excellent corrosion resistance
- Precision-machined sealing face
- Designed to slip over pipe for alignment before welding
- Compatible with Class 300 raised face flange systems
- Suitable for industrial and commercial piping applications
Technical Specifications
| Product Type | Slip-On Flange |
|---|---|
| Material | 304/L Stainless Steel |
| Material Specification | ASTM A/SA182 F304/L |
| Pressure Class | Class 300 |
| Face Type | Raised Face (RF) |
| Dimensional Standard | ASME B16.5 |
| Connection Type | Slip-On / Fillet Welded |
| Construction | Forged Stainless Steel |
| Primary Function | Bolted Flanged Pipe Connection |
| Typical Applications | Commercial, Industrial, Water Treatment, Food Processing, Chemical and General Process Piping |
Construction Details
These slip-on flanges are forged from ASTM A/SA182 F304/L stainless steel for strength, durability, and corrosion resistance in demanding piping environments.
The flange bore is sized so the flange can slide over the outside diameter of compatible pipe. The pipe is positioned within the flange and typically secured with fillet welds at the hub and pipe end in accordance with the applicable piping design and welding procedure.
The raised face sealing surface is precision machined to applicable ASME B16.5 dimensional requirements to provide a dependable gasket seating surface when installed with compatible Class 300 raised face flange components.
Why Choose a Stainless Steel Slip-On Flange?
Corrosion-Resistant Construction
- Manufactured from 304/L stainless steel
- Suitable for demanding piping environments
- Provides excellent general corrosion resistance
- Designed for dependable long-term piping service
- Suitable for many commercial and industrial applications
Straightforward Pipe Alignment
- Flange slips over the outside diameter of the pipe
- Allows positioning before final welding
- Useful where simplified alignment is preferred
- Provides a conventional bolted flange connection
- Suitable for fabrication and general process piping
Performance Features
Class 300 Design
Designed for use as part of an ASME B16.5 Class 300 flange system with compatible flanges, gaskets, bolting, pipe, and associated piping components.
Raised Face Sealing
The precision-machined raised face provides the sealing surface required for use with compatible raised face gaskets and mating Class 300 flange components.
Forged Stainless Steel
ASTM A/SA182 F304/L stainless steel construction provides a combination of mechanical strength, durability, and corrosion resistance for industrial piping service.
Common Applications
Industrial & Process Piping
- Industrial process piping
- Chemical piping systems
- Water treatment systems
- General process applications
- Commercial piping systems
Fabricated Flanged Connections
- Pipe-to-pipe flanged connections
- Valve and equipment connections
- Skid and process-system fabrication
- Mechanical piping assemblies
- Maintenance and replacement piping
How a Slip-On Flange Works
A slip-on flange has a bore larger than the outside diameter of the mating pipe, allowing the flange to slide over the pipe before welding. This makes it possible to position and align the flange with the piping system before the connection is permanently secured.
After the flange is positioned, the pipe and flange are joined by appropriate fillet welds in accordance with the piping design, welding procedure, and applicable code requirements. A gasket is then positioned between the raised sealing faces, and the flange assembly is secured with appropriate bolting.
This configuration provides a practical bolted connection for many industrial and commercial piping applications while maintaining the corrosion resistance of forged 304/L stainless steel.
Raised Face Flange Design
The Raised Face (RF) configuration concentrates the gasket sealing area on the machined raised portion of the flange face. When the flange is properly assembled with a compatible gasket and mating raised face flange, bolt loading compresses the gasket between the sealing surfaces.
Always confirm that the mating flange, gasket, bolting, pipe, and associated components are compatible with the flange size, pressure class, material, service conditions, and applicable piping-system requirements.
Installation Considerations
- Confirm the correct nominal pipe size before installation.
- Verify that the mating flange is an appropriate Class 300 raised face flange.
- Confirm the pipe outside diameter is compatible with the flange bore.
- Position and align the flange before welding.
- Use a qualified welding procedure appropriate for the material and piping system.
- Select a gasket suitable for the flange configuration and piping service.
- Use appropriate flange bolts, studs, nuts, and related hardware.
- Confirm material compatibility with the process fluid and operating environment.
- Verify applicable pressure and temperature requirements before installation.
- Inspect flange sealing surfaces for damage, contamination, or irregularities before assembly.
- Properly align mating flanges before tightening the bolting.
- Follow appropriate flange-bolting and gasket-installation procedures.
- Installation and welding should be performed by qualified personnel familiar with flanged piping systems.
Product Selection Considerations
Size & Pressure Class
Confirm the required nominal pipe size and Class 300 flange designation before ordering. The mating flange, pipe, gasket, bolting, and associated components must be compatible with the selected slip-on flange.
Material & Service Conditions
Confirm that ASTM A/SA182 F304/L stainless steel is suitable for the process fluid, operating environment, pressure, temperature, and applicable piping-system requirements.
Product Documents
Reference the available pipe sizing information, slip-on flange dimensional specification sheet, and Certificate of Conformance for additional product and piping information.
Need Help Selecting a Stainless Steel Flange?
Our industrial PVF specialists can help review your flange size, pressure class, material, face type, piping application, and other project requirements before you order.
Frequently Asked Questions
What is a stainless steel slip-on flange used for?
A slip-on flange is used to create a bolted flanged connection in a piping system. The flange slips over the pipe for positioning and alignment before being secured by welding.
What material is this slip-on flange made from?
This flange is manufactured from ASTM A/SA182 F304/L stainless steel.
What pressure class is this flange?
This product is a Class 300 slip-on flange designed to conform to applicable ASME B16.5 dimensional requirements.
What does Raised Face or RF mean?
Raised Face refers to the flange sealing configuration. The gasket sealing area is located on a machined raised portion of the flange face that mates with a compatible raised face flange and gasket.
What standard does this flange conform to?
This slip-on flange is designed to conform to ASME B16.5 dimensional requirements.
How is a slip-on flange installed?
The flange is slipped over the pipe, positioned and aligned, then secured using appropriate fillet welds in accordance with the piping design, welding procedure, and applicable code requirements.
Does a slip-on flange require welding?
Yes. A conventional slip-on flange is installed over the pipe and welded in place. Welding requirements should be determined by the applicable piping code, system design, and qualified welding procedure.
What gasket should be used with this flange?
The gasket must be compatible with the Class 300 raised face flange configuration as well as the process fluid, pressure, temperature, and other operating conditions. Verify gasket requirements for the specific piping system before installation.
How do I determine the pressure and temperature rating?
Pressure and temperature capabilities depend on the applicable ASME B16.5 requirements, material specifications, size, and service conditions. Verify the allowable rating for the specific installation before placing the flange into service.
Why choose 304/L stainless steel?
304/L stainless steel provides good general corrosion resistance, durability, and mechanical performance for many commercial and industrial piping applications. Confirm material suitability for the specific fluid and environment before use.
Important Ordering Notes
- Product type: Slip-On Raised Face Flange.
- Material: ASTM A/SA182 F304/L stainless steel.
- Pressure class: Class 300.
- Face configuration: Raised Face (RF).
- Dimensions conform to ASME B16.5 requirements.
- Confirm the required flange size before ordering.
- Verify compatibility with the mating flange, pipe, gasket, and bolting.
- Confirm material compatibility with the intended process fluid and operating environment.
- Pressure and temperature requirements should be verified for the specific installation.
- Welding and installation should be performed by qualified personnel familiar with flanged piping systems.
