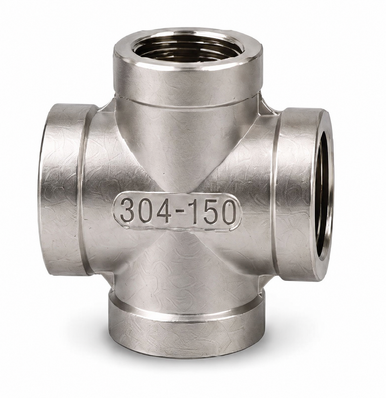

304 Stainless Steel 150# Threaded Cross - SP114

Product Highlights

• SP114 cross design
• Four-way fitting configuration
• 304 stainless steel construction
• Ten nominal sizes available
• Designed for compatible threaded connections
• Available in sizes ranging from 1/8" through 3"
• Useful for plumbing, industrial, process, and general piping systems
• 304 stainless steel provides corrosion resistance for suitable service environments

A 304 stainless steel SP114 threaded cross is a four-way fitting designed to connect compatible threaded piping components at a common junction. The configuration provides opposing straight-through openings along with two additional branch connections.

Charman offers this SP114 Cross family in ten nominal sizes, allowing the same fitting style to be used across a wide range of piping diameters. Each cross should be selected according to the nominal size and requirements of the piping system.

The 304 Stainless Steel 150# Threaded Cross - SP114 is available in 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", and 3" nominal sizes. Each size has its own Charman part number for accurate ordering.

The ten-size range allows the SP114 Cross family to accommodate both smaller piping connections and larger threaded piping systems. Match the cross size to the nominal size required at all four connections before ordering.

• For four-way pipe junctions
• During threaded piping modifications
• For multidirectional branch connections
• Where 304 stainless steel construction is appropriate
• For compatible plumbing, industrial, and process piping systems
• When several piping directions must connect through one threaded fitting

• Select the cross size that matches the piping.
• Confirm all mating threads are compatible before installation.
• Inspect threaded surfaces for damage, debris, or contamination.
• Use a thread-sealing method appropriate for the intended piping system.
• Verify pressure, temperature, media, material, and installation requirements before use.
