304 Stainless Steel 150# Threaded 90° Street Elbow - SP114
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

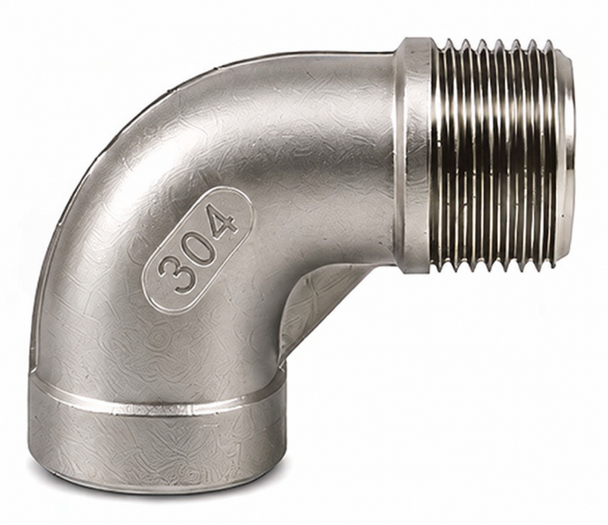

304 Stainless Steel 150# Threaded 90° Street Elbow - SP114
Charman 304 Stainless Steel SP114 Threaded 90° Street Elbows provide a compact right-angle transition between compatible threaded piping components. The street-elbow configuration combines a female threaded connection with a male threaded connection, helping reduce the need for an additional nipple when making certain 90-degree piping turns.
Manufactured from 304 stainless steel, the SP114 90° Street Elbow family is available in eleven nominal sizes from 1/8" through 3". These fittings are suited to compatible plumbing, industrial, process, maintenance, and general threaded piping applications where corrosion resistance and compact directional changes are important.
Product Highlights
- SP114 street elbow design
- 90-degree directional change
- 304 stainless steel construction
- Eleven nominal sizes available
- Male and female threaded connections
- Available in sizes ranging from 1/8" through 3"
- Compact design can reduce the need for an additional threaded nipple
- Useful for plumbing, industrial, process, and general threaded piping systems
What Is an SP114 Threaded 90° Street Elbow?
A 304 stainless steel SP114 threaded 90° street elbow is a right-angle fitting with a male threaded connection on one end and a female threaded connection on the other. This differs from a standard threaded elbow, which typically uses female threaded openings at both ends.
The street-elbow configuration allows the male end of the fitting to connect directly into a compatible female-threaded component. This can create a more compact piping arrangement and eliminate an additional threaded nipple in suitable installations.
Why Choose a 304 Stainless Steel SP114 Threaded 90° Street Elbow?
304 Stainless Steel Construction
- Durable construction
- Corrosion-resistant material
- Designed for threaded piping
- Suitable for compatible piping systems
- Useful across plumbing and industrial applications
Compact Street Elbow Design
- 90-degree turn
- Male and female threads
- Compact connection arrangement
- Available in eleven nominal sizes
- Can reduce extra fittings in suitable piping layouts
Common Applications
Plumbing & General Piping
- Piping repairs
- Directional changes
- Piping modifications
- Compact threaded connections
- General-purpose piping installations
Industrial & Process Use
- Equipment piping
- Maintenance work
- Process piping systems
- Industrial piping layouts
- Compatible stainless steel piping installations
Construction Details
304 Stainless Steel Body
- Solid fitting construction
- SP114 street elbow configuration
- Designed for 90-degree transitions
- Suitable for compatible threaded systems
- 304 stainless steel provides corrosion resistance for suitable applications
Male x Female Thread Design
- Two connection ends
- One male threaded end
- One female threaded end
- Creates a compact right-angle connection
- Both mating thread requirements should be confirmed before installation
Available SP114 90° Street Elbow Sizes
The 304 Stainless Steel 150# Threaded 90° Street Elbow - SP114 is available in 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" nominal sizes. Each size has its own Charman part number for accurate ordering.
The eleven-size range allows the same SP114 Street Elbow family to be selected across both smaller and larger threaded piping systems. Match the nominal fitting size and both mating thread configurations before ordering.
Street Elbow vs. Standard 90° Elbow
SP114 90° Street Elbow
- 90-degree turn
- Male x female design
- Compact fitting configuration
- Connects directly into a female thread
- Can eliminate an extra nipple in suitable installations
SP114 Standard 90° Elbow
- 90-degree turn
- Female threaded openings
- Standard elbow configuration
- Available as a separate Charman fitting
- Used between compatible male-threaded piping components
Where a Charman SP114 90° Street Elbow Makes Sense
- For compact 90-degree turns
- During threaded piping modifications
- Where male x female threads are required
- Where 304 stainless steel construction is appropriate
- For compatible plumbing, industrial, and process piping systems
- When a street elbow can simplify a threaded connection by eliminating an extra fitting
Installation & Selection Considerations
- Select the elbow size that matches the piping.
- Confirm both mating threads are compatible before installation.
- Inspect threaded surfaces for damage, debris, or contamination.
- Use a thread-sealing method appropriate for the intended piping system.
- Verify pressure, temperature, media, material, and installation requirements before use.
Product Selection Considerations
Nominal Size
Select the 304 Stainless Steel 150# Threaded 90° Street Elbow - SP114 according to the required nominal connection size. This listing includes sizes from 1/8" through 3".
Connection Style
Choose a street elbow when the installation requires a male-to-female 90-degree connection. Confirm both mating threads, service conditions, and installation requirements before ordering.
Review the Charman Inc stainless steel fittings specification sheet for product and dimensional information on the SP114 threaded 90° street elbow, or use the complete stainless steel fittings catalog to compare available fitting styles, configurations, and sizes before ordering.
Need Help Selecting a Stainless Steel Pipe Fitting?
Our industrial PVF specialists can help review your pipe size, connection type, stainless steel requirements, application, and installation conditions before you order.
Frequently Asked Questions
What material is the SP114 Street Elbow?
Charman identifies this product family as a 304 stainless steel fitting.
What sizes are available?
This listing includes 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" nominal sizes.
What is a 90° street elbow used for?
A 90° street elbow creates a right-angle piping transition while providing male and female threaded connection ends.
Which Charman SKUs are included?
The included part numbers are 304120, 304121, 304122, 304123, 304124, 304125, 304126, 304127, 304128, 304129, and 304130.
Are all eleven sizes part of the same SP114 family?
Yes. Charman identifies all eleven listed SKUs as 304 Stainless Steel Fitting SP114 90° Street Elbows.
How is a street elbow different from a standard elbow?
A street elbow has one male and one female threaded connection, while a standard threaded elbow typically has female connections at both ends.
Where can I review Charman stainless steel fitting information?
The Charman Stainless Steel Fittings Spec Sheet and Complete Catalog are linked directly above for additional product and fitting information.
What should I confirm before ordering?
Confirm nominal size, male and female mating threads, material requirements, pressure, temperature, media, and installation conditions before ordering.
Important Ordering & Installation Notes
- Eleven nominal sizes are available.
- Match the street elbow to the required pipe size.
- Confirm the male and female thread connections before installation.
- Review the supplied Charman documents for additional fitting information.
- Verify material, pressure, temperature, media, sealing, and installation requirements before service.
