Dixon

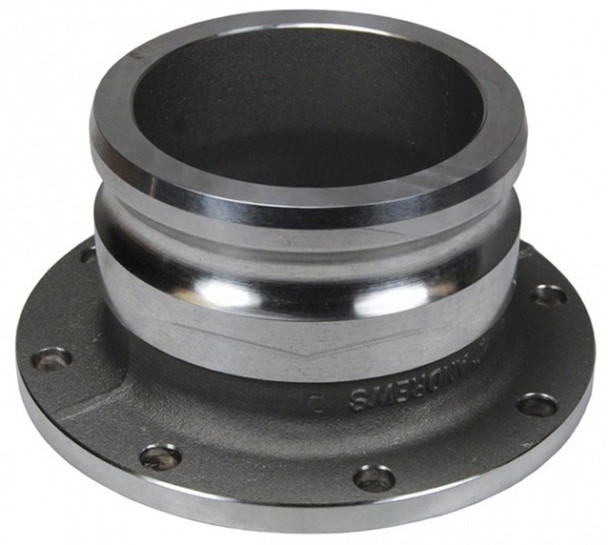

3" Cam & Groove Adapter x TTMA Flange
- SKU:
- NLDIX300-ALT-AL
- Availability:
- Limited quantity available.
- Weight:
- 1.30 LBS
Description
Dixon 3" Aluminum Cam & Groove Adapter x TTMA Flange
The Dixon 3" Cam & Groove Adapter x TTMA Flange is a heavy-duty aluminum fitting designed to provide a reliable transition between compatible cam and groove systems and TTMA flanged equipment in liquid transfer applications.
Manufactured from 356-T6 aluminum, this fitting combines a 3" male camlock adapter with a 3" flat-face TTMA flange. Its quick-connect cam and groove configuration supports efficient connection and disconnection for compatible petroleum, chemical, transportation, and industrial fluid handling systems.
Product Highlights
- 3" male cam & groove adapter x 3" TTMA flange
- 356-T6 aluminum construction
- Flat-face TTMA flange design
- Maximum operating pressure: 125 PSI
- Quick-connect cam and groove configuration
- Designed for fast connection and disconnection
- Interchanges with A-A-59326D cam and groove fittings
- Corrosion-resistant aluminum construction
- Designed for liquid transfer service
- Suitable for compatible tank truck and trailer installations
- Made in USA
Technical Specifications
| Brand | Dixon |
|---|---|
| Product Type | Cam & Groove Adapter x TTMA Flange |
| Nominal Size | 3" x 3" |
| Connection 1 | 3" Male Cam & Groove Adapter |
| Connection 2 | 3" TTMA Flange |
| Flange Style | Flat Face |
| Material | 356-T6 Aluminum |
| Maximum Operating Pressure | 125 PSI |
| Interchange Standard | A-A-59326D |
| Intended Service | Liquid Transfer |
| Country of Manufacture | USA |
Cam & Groove x TTMA Configuration
3" Male Cam & Groove Adapter
The camlock side features a 3" male cam and groove adapter connection designed to connect with a compatible female cam and groove coupler.
3" TTMA Flange
The opposite side features a 3" flat-face TTMA flange for connection to compatible flanged equipment used in tank truck, trailer, and fluid transfer systems.
356-T6 Aluminum Construction
The adapter is precision manufactured from 356-T6 aluminum, providing a combination of strength, corrosion resistance, and lightweight handling for compatible liquid transfer systems.
The aluminum construction helps simplify handling and installation while providing durability for demanding industrial and transportation environments.
Flat-Face TTMA Flange
The flat-face TTMA flange is designed for compatible tank truck and trailer applications requiring a secure flanged connection. Verify flange compatibility and system specifications before installation.
Maximum Operating Pressure
125 PSI
The supplied product information lists a maximum operating pressure of 125 PSI. Verify the pressure ratings of the complete transfer system and all connected equipment before operation.
Quick-Connect Cam & Groove Design
The male cam and groove adapter provides a quick-connect interface for compatible female camlock couplers, allowing efficient coupling and uncoupling without specialized tools.
A-A-59326D Interchange
The cam and groove connection is designed to interchange with compatible fittings manufactured to Commercial Item Description A-A-59326D.
Typical Applications
- Petroleum liquid transfer
- Compatible chemical transfer systems
- Tank truck fluid handling
- Tank trailer installations
- Transportation fluid handling systems
- Industrial liquid transfer systems
- Camlock-to-TTMA flange connections
Installation & Service Notes
This adapter is designed for liquid transfer applications in compatible industrial and transportation systems.
Before installation, verify TTMA flange compatibility, cam and groove coupling fit, maximum system pressure, transferred media compatibility, and all other applicable system requirements.
Our specialists can help with cam and groove compatibility, TTMA flange connections, pressure requirements, aluminum compatibility, and selecting the right fitting for your liquid transfer system.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is this Dixon cam and groove fitting used for?
This fitting is designed to provide a connection between a compatible cam and groove coupling system and a 3" TTMA flanged connection in liquid transfer applications.
What are the connection sizes?
The fitting combines a 3" male cam and groove adapter with a 3" TTMA flange.
What material is the adapter made from?
The adapter is manufactured from 356-T6 aluminum.
What type of TTMA flange does this fitting use?
The supplied product information identifies the TTMA connection as a flat-face flange.
What is the maximum operating pressure?
The supplied product information lists a maximum operating pressure of 125 PSI.
What does the male camlock adapter connect to?
The 3" male cam and groove adapter is designed to connect with a compatible female cam and groove coupler.
Does the cam and groove connection interchange with standard fittings?
The supplied product information states that it is designed to interchange with compatible cam and groove fittings manufactured to A-A-59326D.
What applications is this adapter designed for?
The supplied information identifies compatible petroleum, chemical, transportation, tank truck, tank trailer, and industrial liquid transfer applications.
Where is this fitting manufactured?
The supplied product information identifies this fitting as Made in USA.
Important Ordering & Product Notes
- This listing covers the Dixon 3" Aluminum Cam & Groove Adapter x TTMA Flange.
- Connection configuration is 3" male cam & groove adapter x 3" TTMA flange.
- TTMA connection uses a flat-face flange design.
- Material is 356-T6 aluminum.
- Maximum operating pressure is listed as 125 PSI.
- Cam and groove connection is designed to interchange with compatible A-A-59326D fittings.
- Designed for liquid transfer service.
- The specific manufacturer part number, overall dimensions, product weight, and temperature range were not supplied in the provided product information.
- No compressed air or steam service restriction was supplied in the provided product information.
- Verify flange compatibility, media compatibility, pressure requirements, and complete system specifications before installation.
- Made in USA.
