Matco-Norca
225FJ Ductile Iron Flanged x Mechanical Joint Gate Valve
- SKU:
- 225FJ
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description

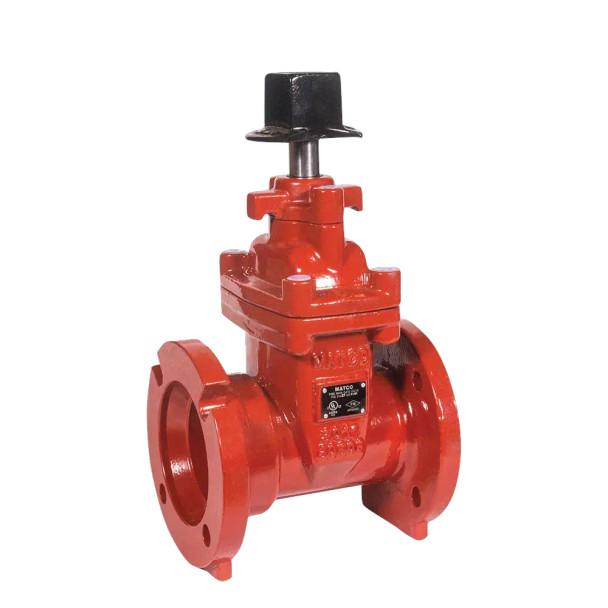

225FJ Ductile Iron Flanged x Mechanical Joint Gate Valve
The Matco-Norca 225FJ Series Ductile Iron Gate Valve is designed for reliable shutoff performance in municipal waterworks, underground piping systems, and commercial fire protection applications. Featuring a flanged x mechanical joint connection configuration with a resilient wedge design, this valve delivers dependable sealing, corrosion resistance, and long service life in demanding service environments.
Manufactured with a durable ductile iron body and epoxy-coated internal and external surfaces per AWWA C550 standards, the 225FJ valve is built to withstand harsh operating conditions while maintaining smooth operation and leak-tight performance. The non-rising stem configuration makes it ideal for below-grade installations and compact system layouts.
Product Features
- Ductile iron flanged x mechanical joint gate valve
- Resilient wedge design for bubble-tight shutoff
- Non-rising stem (NRS) construction
- AWWA C515-20 compliant
- AWWA C550 epoxy coated
- 300 PSI pressure rating
- UL Listed & FM Approved
- NSF-61 & NSF-372 verified by UL Water Quality
- Flanges conform to ANSI B16.1
- Compatible with post indicator plate applications
- Temperature range: 32°F to 180°F
- Available in 3" through 12" sizes
Material Construction:
- Body & Bonnet: Ductile Iron ASTM A536-65-45-12
- Stem: Stainless Steel ANSI 304
- Stem Nut & Thrust Collar: Bronze ASTM C95200
- Wedge: EPDM Encapsulated Ductile Iron
- Bolts & Hardware: Stainless Steel SS304
- Seals & O-Rings: EPDM & NBR Rubber
Pressure Rating: 300 PSI
Temperature Range: 32°F to 180°F
Approvals: UL Listed, FM Approved, NSF-61 & NSF-372
