Dixon

2-1/2" Galvanized Band Clamp

(No reviews yet) Write a Review
SKU:
NLDIXK10
Availability:
Limited quantity available.
Weight:
0.14 LBS
*Images are for visual reference only.

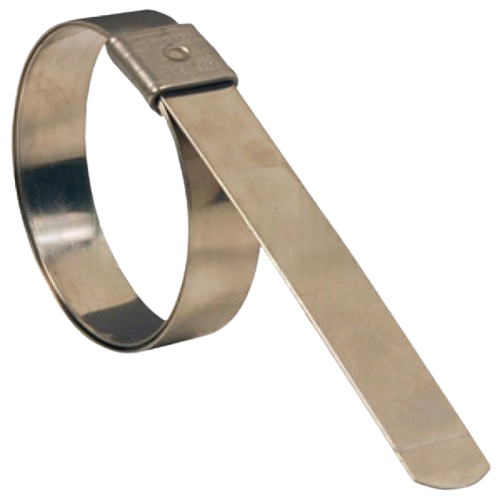

  • 2-1/2" Galvanized Band Clamp
  • Dixon Logo
$1.70

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

2-1/2" Galvanized Band Clamp

2-1/2" Galvanized Band Clamp provides a pre-formed clamping solution for compatible industrial hose assemblies.

Manufactured from galvanized steel, the Dixon K10 can be center punched or rolled over during installation. Its pre-formed design provides a ready-to-install clamp shape for use with compatible band-clamp tooling.

PRODUCT OVERVIEW

Product Highlights

Dixon K10 is a pre-formed galvanized steel band clamp designed for secure installation on compatible 2-1/2" hose assemblies.

The 5/8" wide band can be center punched or rolled over, allowing installation with compatible industrial band-clamp tooling.

K10 Part Number
2-1/2" Clamp ID
Galvanized Steel Material
5/8" Band Width
.031" Band Thickness
Pre-Formed Clamp Style

Technical Specifications

Product Type Universal Preformed Band Clamp
Material Galvanized Steel
Part Number K10
Clamp ID 2-1/2" (63.5 mm)
Band Width 5/8"
Band Thickness .031"
Clamp Style Pre-Formed
Installation Method Center Punch or Roll Over
Series K-Series
Primary Use Industrial Hose Assembly

Pre-Formed Band Clamp Configuration

HOSE ASSEMBLY
2-1/2" Clamp ID

The pre-formed clamp provides a 2-1/2" inside diameter for use on compatible hose and fitting assemblies requiring this clamp size.

+
INSTALLATION METHOD
Center Punch or Roll Over

The K-Series design can be secured using an appropriate center-punch or roll-over method with compatible installation tooling.

K-Series Universal Band Clamp Design

01
Pre-Formed Clamp Configuration

The K10 is supplied in a pre-formed configuration so the clamp already has its basic circular shape before installation. This eliminates the need to cut and form loose band material around the hose before the tightening process begins.

Confirm the required clamp diameter against the actual hose and fitting assembly before installation. The 2-1/2" clamp ID should correspond to the intended assembly so the band can be tightened evenly and secured correctly.

02
Galvanized Steel Band Construction

The K10 uses galvanized steel band material with a published width of 5/8" and thickness of .031". The galvanized construction provides a durable clamp body for compatible industrial hose assembly applications.

Inspect the band and buckle area before installation for bends, damaged edges, corrosion, or deformation. A damaged clamp can affect the way the band tightens and should be addressed before completing the hose assembly.

03
Center Punch or Roll-Over Installation

Dixon specifies that K-Series clamps can be installed by either center punching or rolling over. This provides flexibility when selecting an installation method based on the available tooling and established hose assembly procedure.

The clamp should be tightened and locked using the proper technique for the selected method. Check the completed band for even tension, secure engagement, and correct placement around the hose before the assembly is placed into service.

04
Compatible Band-Clamp Tooling

Dixon lists K-Series compatibility with several band-clamp tool systems, including Fast-Lok™, Super Strap, Band-It®, and Punch-Lok® equipment when the appropriate tool or adapter is selected. Tool choice should account for the K10's 5/8" band width.

Verify the specific tool configuration before beginning installation because individual tools may support different band sizes or fastening methods. Follow the applicable tool instructions and inspect the finished clamp after installation is complete.

Installation & Selection Considerations

01

Confirm Dixon part number K10.

02

Verify the 2-1/2" clamp ID.

03

Confirm the 5/8" band width.

04

Select compatible clamp tooling.

05

Inspect the clamp after installation.

Willy knows his pipe sizes
Ask Willy: Need Help Selecting a K-Series Band Clamp?

Our product specialists can help review K10 clamp size, hose assembly requirements, band width, installation method, and compatible band-clamp tooling before you order.

Frequently Asked Questions

What size is the Dixon K10 band clamp?

Dixon lists the K10 with a 2-1/2" (63.5 mm) clamp inside diameter.

What material is the K10 made from?

The K10 is manufactured from galvanized steel.

What is the K10 band width?

Dixon specifies a 5/8" band width for the K10.

What is the band thickness?

The galvanized steel band has a published thickness of .031".

How can the K10 be installed?

Dixon states that K-Series preformed clamps can be center punched or rolled over during installation.

What tooling can be used with K-Series clamps?

Dixon lists compatible Fast-Lok™, Super Strap, Band-It®, and Punch-Lok® tool systems when the appropriate tool or adapter is used.

Important Ordering & Installation Notes

  • Confirm Dixon part number K10.
  • Verify the 2-1/2" clamp ID.
  • Confirm galvanized steel construction.
  • Verify the 5/8" band width.
  • Check the .031" band thickness.
  • Select compatible installation tooling.
  • Use the correct fastening method.
  • Check for even band tightening.
  • Inspect the completed clamp engagement.
  • Verify the hose assembly before service.
