150# Stainless Steel IPS Slip-On Bevel x Square Plate Flange
- SKU:
- SSPFBXS
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

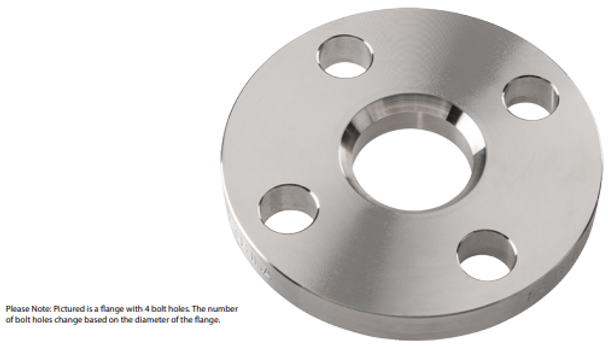

150# Stainless Steel IPS Slip-On Bevel x Square Plate Flange
150# Stainless Steel IPS Slip-On Bevel x Square Plate Flanges are designed for low-pressure, less critical piping applications where a practical, economical flange connection is needed. Manufactured from stainless steel plate, these flanges provide corrosion resistance while offering a lighter alternative to heavier ANSI flange styles.
Available in 304/L and 316/L stainless steel and covering sizes from 1/2" through 12", these flanges feature a serrated sealing surface and an inside diameter beveled on one side to accommodate compatible Type "A" stub ends.
Product Highlights
- 150# IPS slip-on bevel x square plate flange design
- Size range: 1/2" through 12"
- Manufactured from ASTM A240/SA240 stainless steel plate
- Available in 304/L and 316/L stainless steel
- Suitable for low-pressure, less critical applications
- Serrated surface helps enhance sealing performance
- ID beveled on one side to accommodate Type "A" stub ends
- Economical alternative to heavier ANSI flange styles
- Low-carbon stainless grades provide greater corrosion resistance
Technical Specifications
| Product Type | IPS Slip-On Bevel x Square Plate Flange |
|---|---|
| Pressure Class | 150# |
| Size Range | 1/2" - 12" |
| Material | Stainless Steel Plate |
| Material Specification | ASTM A240 / SA240 |
| Available Grades | 304/L & 316/L Stainless Steel |
| Connection Style | IPS Slip-On |
| ID Configuration | Beveled One Side / Square Opposite Side |
| Stub End Compatibility | Type "A" Stub Ends |
| Surface | Serrated Sealing Surface |
| Primary Service | Low-Pressure, Less Critical Applications |
Bevel x Square Design
The inside diameter is beveled on one side and left square on the opposite side. This configuration is designed to accommodate compatible Type "A" stub ends in suitable piping assemblies.
Confirm the stub end type, outside diameter, nominal size, and flange dimensions before ordering to ensure proper fit.
Serrated Sealing Surface
The flange face is serrated to help improve gasket seating and sealing performance in compatible bolted flange assemblies.
Proper gasket selection, flange alignment, bolting, and installation practices should be verified for the intended low-pressure application.
304/L vs. 316/L Stainless Steel
304/L Stainless Steel
- General-purpose corrosion resistance
- Suitable for many commercial and industrial applications
- Commonly used in water and process systems
- Low-carbon grade supports improved corrosion performance
316/L Stainless Steel
- Enhanced corrosion resistance in demanding environments
- Commonly selected for marine and chemical service
- Suitable for many chloride-exposed applications
- Low-carbon grade supports improved corrosion performance
Economical Low-Pressure Flange Option
Plate flanges provide a lighter and more economical alternative to heavier ANSI flange designs where the system operates within appropriate low-pressure conditions.
This makes them a practical option for less critical service where full forged ANSI flange construction is not required.
Common Applications
Low-Pressure Piping
- General industrial piping
- Commercial process systems
- Water systems
- Equipment connections
- Low-pressure stainless piping assemblies
Stub End Assemblies
- Type "A" stub end connections
- Stainless steel lap-style assemblies
- General fabrication
- Corrosion-resistant piping systems
- Applications requiring economical flange alignment
Need Help With Plate Flange Selection?
Confirm the nominal size, IPS fit, stainless steel grade, Type "A" stub end compatibility, pressure requirements, gasket, and mating flange before ordering.
Use the product documents below to review plate flange construction and dimensional information for sizes from 1/2" through 12".
Product Documents
Stainless Steel Plate Flange Brochure
Use this brochure for product-family information and general guidance on stainless steel plate flange construction and applications.
- Overview of stainless steel plate flange products
- Useful for product-family and application reference
- Supports selection between available plate flange styles
- Recommended for general product review before ordering
Stainless Steel Plate Flange Dimensions
Use this dimensional reference to verify plate flange sizing before ordering, fabrication, or installation.
- Reference dimensions for stainless steel plate flanges
- Useful for confirming nominal size and IPS compatibility
- Helps verify dimensions for use with compatible Type "A" stub ends
- Recommended for checking dimensions before installation
Frequently Asked Questions
What is an IPS slip-on bevel x square plate flange?
It is a plate-style slip-on flange with the inside diameter beveled on one side and square on the opposite side for use in compatible IPS piping assemblies.
What pressure class is this flange?
This is a 150# plate flange intended for compatible low-pressure service.
What sizes are available?
The listed size range is 1/2" through 12".
What material are these flanges made from?
They are manufactured from stainless steel plate conforming to ASTM A240/SA240.
What stainless steel grades are available?
These flanges are available in 304/L and 316/L stainless steel.
Why is one side of the ID beveled?
The ID is beveled on one side to accommodate compatible Type "A" stub ends.
Why is the flange face serrated?
The serrated surface is intended to help improve gasket seating and sealing performance in compatible flange assemblies.
How do plate flanges compare with heavier ANSI flanges?
Plate flanges provide a more economical alternative for suitable low-pressure, less critical applications where a heavier forged ANSI flange is not required.
Where can I find flange dimensions?
Use the Stainless Steel Plate Flange Dimensions PDF in the Product Documents section above.
Is there a product brochure available?
Yes. The Stainless Steel Plate Flange Brochure PDF is available in the Product Documents section above.
Important Ordering Notes
- Product type: 150# Stainless Steel IPS Slip-On Bevel x Square Plate Flange.
- Size range: 1/2" through 12".
- Manufactured from ASTM A240/SA240 stainless steel plate.
- Available in 304/L and 316/L stainless steel.
- Designed for compatible low-pressure, less critical applications.
- ID is beveled on one side to accommodate compatible Type "A" stub ends.
- Serrated surface helps enhance sealing performance.
- Economical alternative to heavier ANSI flange styles where appropriate.
- Confirm IPS size and Type "A" stub end compatibility before ordering.
- Verify pressure requirements, gasket selection, bolting, flange compatibility, and media compatibility before installation.
- Refer to both Product Documents for product and dimensional information before ordering.
