Merit Brass

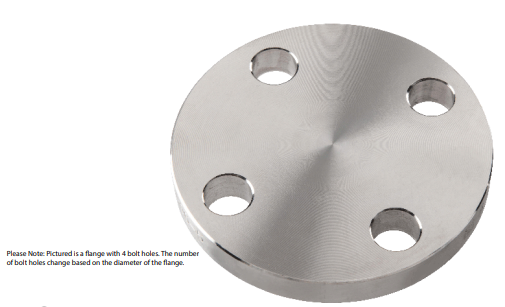

150# Stainless Steel Blind Plate Flange
- SKU:
- SSBPF
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
150# Stainless Steel Blind Plate Flange
150# Stainless Steel Blind Plate Flanges are designed for low-pressure piping applications where a line must be sealed or flow must be stopped. Manufactured from stainless steel plate, these flanges provide a practical closure solution while offering corrosion resistance and straightforward access for future piping-system expansion.
Available in 304/L and 316/L stainless steel and covering sizes from 1" through 12", these blind plate flanges provide an economical alternative to heavier ANSI flange styles for compatible low-pressure service.
Product Highlights
- 150# blind plate flange design
- Size range: 1" through 12"
- Manufactured from ASTM A240/SA240 stainless steel plate
- Available in 304/L and 316/L stainless steel
- Designed for low-pressure applications
- Used to prevent flow and seal the end of a piping line
- Serrated surface helps enhance sealing performance
- Allows convenient future expansion of the piping system
- Economical alternative to heavier ANSI flange designs
- Low-carbon stainless grades provide greater corrosion resistance
Technical Specifications
| Product Type | Blind Plate Flange |
|---|---|
| Pressure Class | 150# |
| Size Range | 1" - 12" |
| Material | Stainless Steel Plate |
| Material Specification | ASTM A240 / SA240 |
| Available Grades | 304/L & 316/L Stainless Steel |
| Flange Style | Blind Plate |
| Surface | Serrated Sealing Surface |
| Primary Service | Low-Pressure Applications |
| Primary Function | Seal End of Line / Prevent Flow |
Blind Plate Design
A blind plate flange provides a solid closure at the end of a compatible piping system. Because there is no center opening for flow, the plate can be used to stop media movement and isolate the end of a line.
This removable bolted closure also makes future system expansion easier than a permanently welded end closure.
Serrated Sealing Surface
The flange surface is serrated to help improve sealing performance when used with a compatible gasket and mating flange arrangement.
Proper gasket selection, bolting, flange alignment, and installation practices should always be confirmed for the intended low-pressure application.
304/L vs. 316/L Stainless Steel
304/L Stainless Steel
- General-purpose corrosion resistance
- Suitable for many commercial and industrial applications
- Commonly used in water and process systems
- Low-carbon grade supports improved corrosion performance
316/L Stainless Steel
- Enhanced corrosion resistance in demanding environments
- Commonly selected for marine and chemical service
- Suitable for many chloride-exposed applications
- Low-carbon grade supports improved corrosion performance
Economical Low-Pressure Closure
Blind plate flanges provide a lighter, economical alternative to heavier ANSI blind flanges where the piping system operates within appropriate low-pressure conditions.
The plate construction makes them especially useful where a removable closure is required without the added mass or cost of a heavier forged flange.
Common Applications
System Closure & Isolation
- Sealing the end of a piping line
- Preventing flow
- Temporary or permanent low-pressure isolation
- Maintenance access points
- Future system expansion
Low-Pressure Stainless Systems
- Commercial piping
- Industrial process systems
- Water systems
- Corrosion-resistant piping
- General low-pressure stainless applications
Need Help With Plate Flange Selection?
Confirm the nominal flange size, stainless steel grade, pressure requirements, mating flange, gasket, and bolting before ordering.
Use the product documents below to review plate flange construction and dimensional information for sizes from 1" through 12".
Product Documents
Stainless Steel Plate Flange Brochure
Use this brochure for product-family information and general guidance on stainless steel plate flange construction and applications.
- Overview of stainless steel plate flange products
- Useful for product-family and application reference
- Supports selection between available plate flange styles
- Recommended for general product review before ordering
Stainless Steel Plate Flange Dimensions
Use this dimensional reference to verify plate flange sizing before ordering, fabrication, or installation.
- Reference dimensions for stainless steel plate flanges
- Useful for confirming nominal flange size
- Helps verify dimensional compatibility with mating components
- Recommended for checking dimensions before installation
Frequently Asked Questions
What is a blind plate flange?
A blind plate flange is a solid plate-style flange used to close the end of a piping system and prevent flow.
What pressure class is this flange?
This is a 150# blind plate flange intended for compatible low-pressure applications.
What sizes are available?
The listed size range is 1" through 12".
What material are these flanges made from?
They are manufactured from stainless steel plate conforming to ASTM A240/SA240.
What stainless steel grades are available?
These plate flanges are available in 304/L and 316/L stainless steel.
Why is the surface serrated?
The serrated surface is designed to help enhance gasket sealing performance in compatible flange assemblies.
Can this flange be used for future system expansion?
Yes. Because it provides a removable bolted closure, a blind plate flange can allow easier future piping-system expansion than a permanent welded closure.
How does a plate flange differ from a heavier ANSI blind flange?
The plate flange is intended as a more economical option for compatible low-pressure applications and is manufactured from stainless steel plate rather than a heavier forged flange configuration.
Where can I find the plate flange dimensions?
Use the Stainless Steel Plate Flange Dimensions PDF in the Product Documents section above.
Is there a product brochure available?
Yes. The Stainless Steel Plate Flange Brochure PDF is available in the Product Documents section above.
Important Ordering Notes
- Product type: 150# stainless steel blind plate flange.
- Size range: 1" through 12".
- Manufactured from ASTM A240/SA240 stainless steel plate.
- Available in 304/L and 316/L stainless steel.
- Designed for compatible low-pressure applications.
- Used to stop flow and seal the end of a piping line.
- Serrated surface helps enhance sealing performance.
- Provides a removable closure that supports future system expansion.
- Economical alternative to heavier ANSI flange styles where appropriate.
- Verify pressure requirements, gasket selection, bolting, flange compatibility, and media compatibility before installation.
- Refer to both Product Documents for product and dimensional information before ordering.
