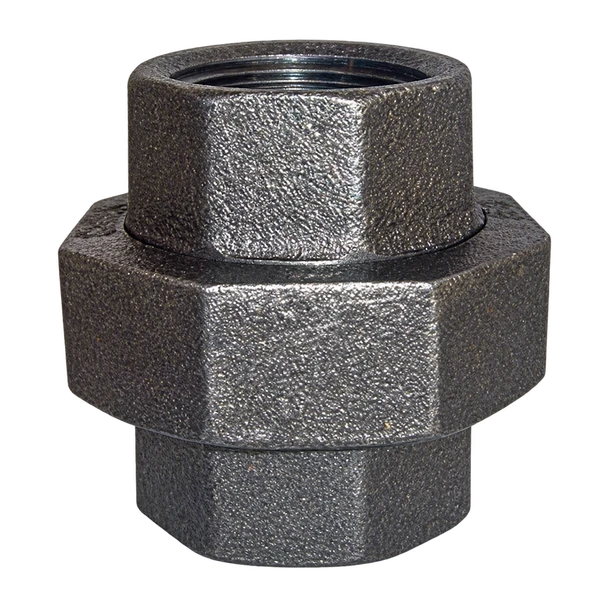

Class 150 Black Malleable Iron Brass-Seat Unions
- SKU:
- 3463
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Provide a separable connection for maintenance using a Class 150 malleable iron union with a brass seat.
Product details / technical specifications
| Manufacturer | SCI / ASC Engineered Solutions |
|---|---|
| Figure | 3463 |
| Material | Malleable iron (ASTM A197) |
| Finish | Black |
| Connection | Female NPT |
| Pressure class | Class 150; allowable pressure depends on temperature and service |
| Thread standard | ASME B1.20.1 NPT |
| Dimensional standard | ASME B16.39 |
| Seat | Brass |
| Size selection | Select the available nominal pipe size or complete size combination above |
| Dimensions / unit weight | Size-specific; see the matching manufacturer table linked below |
Choose the right connection
The union provides a separable joint for service access. Confirm the matching nominal pipe size and allow room to operate the union nut.
Technical documents / view or print
Open the product table to review size-specific dimensions and weights. PDF links open in a new tab and can be printed from your PDF viewer.
View / Print Figure 3463 Submittal (PDF) ↗View Product Catalog Page (PDF) ↗Material / Thread Specifications (PDF) ↗Material Compliance Certificate (PDF) ↗Frequently asked questions
How do I choose the right connection?
Where are the dimensions and weight?
Can I use this for any fluid or service?
Does Class 150 mean 150 PSI in every application?
Before you order
The union provides a separable joint for service access. Confirm the matching nominal pipe size and allow room to operate the union nut. Confirm the complete size selection, thread compatibility, operating temperature and required service rating.
Manufacturer SKU and packaging reference
Carton quantities are manufacturer packaging references, not an order minimum. Use the linked manufacturer documentation for technical dimensions.
| SKU | Size | Figure | UPC | Carton qty | Manufacturer description |
|---|---|---|---|---|---|
| 0812507408 | 1/8 | 3463 | 690291503597 | 60 | 1/8 150 BLK IMI UNION |
| 0812507606 | 1/4 | 3463 | 690291503603 | 20 | 1/4 150 BLK IMI UNION |
| 0812507804 | 3/8 | 3463 | 690291503610 | 40 | 3/8 150 BLK IMI UNION |
| 0812508018 | 1/2 | 3463 | 690291963988 | 50 | 1/2 150 BLK IMI UNION |
| 0812508208 | 3/4 | 3463 | 690291963995 | 35 | 3/4 150 BLK IMI UNION |
| 0812508612 | 1 | 3463 | 690291964008 | 20 | 1 150 BLK IMI UNION |
| 0812508810 | 1 1/4 | 3463 | 690291964015 | 15 | 11/4 150 BLK IMI UNION |
| 0812509008 | 1 1/2 | 3463 | 690291964022 | 10 | 11/2 150 BLK IMI UNION |
| 0812509206 | 2 | 3463 | 690291964039 | 6 | 2 150 BLK IMI UNION |
| 0812509412 | 2 1/2 | 3463 | 690291964046 | 4 | 21/2 150 BLK IMI UNION |
| 0812509610 | 3 | 3463 | 690291964053 | 4 | 3 150 BLK IMI UNION |
