Class 150 Black Malleable Iron Hex Bushings

(No reviews yet) Write a Review
SKU:
3383
Availability:
Usually Ships Same Day
Weight:
0.00 LBS
*Images are for visual reference only.

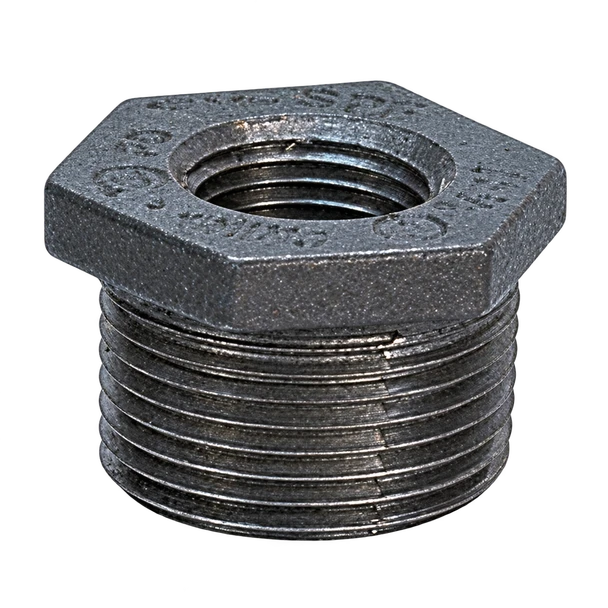

  • Black malleable iron hex bushing, Figure 3383, Class 150 with male external threads
  • Black malleable iron hex bushing, Figure 3383, Class 150 showing male external threads and female internal threads
$1.80 - $17.49

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

ASC Engineered Solutions

Pipe Joining Systems

Class 150 Black Malleable Iron Hex Bushings

SCI / ASC Engineered Solutions • Threaded Pipe Fittings

Reduce a female threaded opening with a male-by-female hex bushing.

Product details / technical specifications

ManufacturerSCI / ASC Engineered Solutions
Figure3383
MaterialMalleable iron (ASTM A197)
FinishBlack
ConnectionMale external / female internal NPT
Pressure classClass 150; allowable pressure depends on temperature and service
Thread standardASME B1.20.1 NPT
Dimensional standardASME B16.14
Size selectionSelect the available nominal pipe size or complete size combination above
Dimensions / unit weightSize-specific; see the matching manufacturer table linked below

Choose the right connection

The size pair identifies the larger male connection and smaller female connection. Use the hexagonal wrenching surface for installation.

Technical documents / view or print

Open the product table to review size-specific dimensions and weights. PDF links open in a new tab and can be printed from your PDF viewer.

View / Print Figure 3383 Submittal (PDF) ↗View Product Catalog Page (PDF) ↗Material / Thread Specifications (PDF) ↗Material Compliance Certificate (PDF) ↗

Frequently asked questions

How do I choose the right connection?
The size pair identifies the larger male connection and smaller female connection. Use the hexagonal wrenching surface for installation.
Where are the dimensions and weight?
Use the manufacturer table for the selected nominal size. Dimensions and unit weight vary by size; the image is a product-family reference.
Can I use this for any fluid or service?
Confirm material compatibility, thread arrangement, service conditions and the applicable manufacturer rating before selecting the fitting.
Does Class 150 mean 150 PSI in every application?
No. Pressure class is not one universal working-pressure limit. Allowable pressure depends on temperature, size, material and service; use the applicable manufacturer rating.

Before you order

The size pair identifies the larger male connection and smaller female connection. Use the hexagonal wrenching surface for installation. Confirm the complete size selection, thread compatibility, operating temperature and required service rating.

Manufacturer SKU and packaging reference

Carton quantities are manufacturer packaging references, not an order minimum. Use the linked manufacturer documentation for technical dimensions.

SKUSizeFigureUPCCarton qtyManufacturer description
08189056063/43383690291885211503/4X1/2 BLK IMI HEX BUSHING
081890664613383690291878848501X3/4 BLK IMI HEX BUSHING
081890668713383690291878831501X1/2 BLK IMI HEX BUSHING
081890677813383690291878824501X3/8 BLK IMI HEX BUSHING
081890685113383690291878817501X1/4 BLK IMI HEX BUSHING
081890692713383690291878800501X1/8 BLK IMI HEX BUSHING
08189070081 1/433836902918788933011/4X1 BLK IMI HEX BUSHING
08189070571 1/433836902918788863011/4X3/4 BLK IMI HEX BUSHING
08189071311 1/433836902918788793011/4X1/2 BLK IMI HEX BUSHING
08189072061 1/433836902918788623011/4X3/8 BLK IMI HEX BUSHING
08189072891 1/433836902918788553011/4X1/4 BLK IMI HEX BUSHING
08189074121 1/233836902918789542511/2X11/4 BLK IMI HEX BUSHING
08189074461 1/233836902918789472511/2X1 BLK IMI HEX BUSHING
08189074871 1/233836902918789302511/2X3/4 BLK IMI HEX BUSHING
08189075291 1/233836902918789232511/2X1/2 BLK IMI HEX BUSHING
08189075781 1/233836902918789162511/2X3/8 BLK IMI HEX BUSHING
08189076101 1/233836902918789092511/2X1/4 BLK IMI HEX BUSHING
081890768523383690291879012202X11/2 BLK IMI HEX BUSHING
081890772723383690291879005202X11/4 BLK IMI HEX BUSHING
081890776823383690291878992202X1 BLK IMI HEX BUSHING
081890781823383690291878985202X3/4 BLK IMI HEX BUSHING
081890785923383690291878978202X1/2 BLK IMI HEX BUSHING
081890792523383690291878961202X1/4 BLK IMI HEX BUSHING
08189079662 1/233836902918790671521/2X2 BLK IMI HEX BUSHING
08189080482 1/233836902918790501521/2X11/2 BLK IMI HEX BUSHING
08189080892 1/233836902918790431521/2X11/4 BLK IMI HEX BUSHING
08189081392 1/233836902918790361521/2X1 BLK IMI HEX BUSHING
08189081702 1/233836902918790291521/2X3/4 BLK IMI HEX BUSHING
081890824633383690291879111123X21/2 BLK IMI HEX BUSHING
081890828733383690291879104123X2 BLK IMI HEX BUSHING
081890832933383690291879098123X11/2 BLK IMI HEX BUSHING
081890837833383690291879081123X11/4 BLK IMI HEX BUSHING
081890841033383690291879074123X1 BLK IMI HEX BUSHING
08189085273 1/23383690291879128831/2X3 BLK IMI HEX BUSHING
08189088084338369029188253154X3 BLK IMI HEX BUSHING
08189088574338369029188254854X21/2 BLK IMI HEX BUSHING
08189088994338369029188255554X2 BLK IMI HEX BUSHING
08189089314338369029188256254X11/2 BLK IMI HEX BUSHING
08189089724338369029188257954X11/4 BLK IMI HEX BUSHING
08189090124338369029188258654X1 BLK IMI HEX BUSHING
08189090614338369029188259354X3/4 BLK IMI HEX BUSHING

Need help choosing a fitting? Ask the GetPipe team or call 1-800-410-4625.
