Class 150 Black Malleable Iron 45° Elbows

(No reviews yet) Write a Review
SKU:
3102
Availability:
In-stock items usually ship same day.
Weight:
0.00 LBS
*Images are for visual reference only.

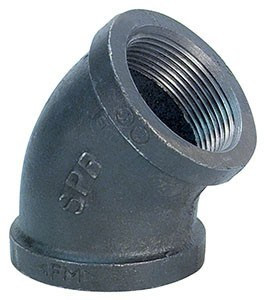

  • Black malleable iron 45° elbow, Figure 3102, Class 150 with female npt threads
  • Black malleable iron 45° elbow, Figure 3102, Class 150 showing female npt threads and 45° direction change
$1.82 - $65.34

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

ASC Engineered Solutions

Pipe Joining Systems

Class 150 Black Malleable Iron 45° Elbows

SCI / ASC Engineered Solutions • Threaded Pipe Fittings

Make a 45° direction change between compatible male threaded pipe ends.

Product details / technical specifications

ManufacturerSCI / ASC Engineered Solutions
Figure3102
MaterialMalleable iron (ASTM A197)
FinishBlack
ConnectionFemale NPT
Pressure classClass 150; allowable pressure depends on temperature and service
Thread standardASME B1.20.1 NPT
Dimensional standardASME B16.3
Size selectionSelect the available nominal pipe size or complete size combination above
Dimensions / unit weightSize-specific; see the matching manufacturer table linked below

Choose the right connection

Choose the nominal pipe size matching both male pipe ends. The 45° angle is a gentler direction change than a 90° elbow.

Technical documents / view or print

Open the product table to review size-specific dimensions and weights. PDF links open in a new tab and can be printed from your PDF viewer.

View / Print Figure 3102 Submittal (PDF) ↗View Product Catalog Page (PDF) ↗Material / Thread Specifications (PDF) ↗Material Compliance Certificate (PDF) ↗

Frequently asked questions

How do I choose the right connection?
Choose the nominal pipe size matching both male pipe ends. The 45° angle is a gentler direction change than a 90° elbow.
Where are the dimensions and weight?
Use the manufacturer table for the selected nominal size. Dimensions and unit weight vary by size; the image is a product-family reference.
Can I use this for any fluid or service?
Confirm material compatibility, thread arrangement, service conditions and the applicable manufacturer rating before selecting the fitting.
Does Class 150 mean 150 PSI in every application?
No. Pressure class is not one universal working-pressure limit. Allowable pressure depends on temperature, size, material and service; use the applicable manufacturer rating.

Before you order

Choose the nominal pipe size matching both male pipe ends. The 45° angle is a gentler direction change than a 90° elbow. Confirm the complete size selection, thread compatibility, operating temperature and required service rating.

Manufacturer SKU and packaging reference

Carton quantities are manufacturer packaging references, not an order minimum. Use the linked manufacturer documentation for technical dimensions.

SKUSizeFigureUPCCarton qtyManufacturer description
08100228061/83102690291877087501/8 BLK IMI 45 ELL
08100230101/43102690291877094301/4 BLK IMI 45 ELL
08100232183/83102690291877100503/8 BLK IMI 45 ELL
08100234081/23102690291877117501/2 BLK IMI 45 ELL
08100236063/43102690291877124403/4 BLK IMI 45 ELL
081002381213102690291877131201 BLK IMI 45 ELL
08100240181 1/431026902918771482011/4 BLK IMI 45 ELL
08100242081 1/231026902918771551011/2 BLK IMI 45 ELL
081002440623102690291877162122 BLK IMI 45 ELL
08100246122 1/231026902918771791221/2 BLK IMI 45 ELL
081002481033102690291877186103 BLK IMI 45 ELL
08100252054310269029187720944 BLK IMI 45 ELL

Need help choosing a fitting? Ask the GetPipe team or call 1-800-410-4625.
