Watts Water Technologies
125# NRS Flanged Gate Valves - Epoxy Coated
- SKU:
- 405-NRS-RW
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

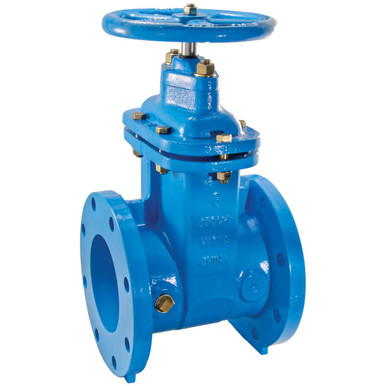

125# NRS Flanged Gate Valves - Epoxy Coated
Series 405-NRS-RW NRS Flanged Gate Valves are used in irrigation and water distribution services. They feature an epoxy-coated cast iron body with ANSI B16.1 flanged connections, resilient wedge disc, cast iron bonnet, bronze non-rising stem, and cast iron handwheel. Maximum Pressure is 200psi (13.8 bar) CWP.
Product Overview
Face-to-face dimension shall comply with ASME B16.10 Class 125 cast iron flanged valves. Flange end connection shall comply with ASME B16.1 Class 125 & AWWA Class D. Flanges are flat faced and smooth finished.
Product Highlights
- ASTM A126 Class B Iron (Flanged x Flanged)
- Primary use in irrigation and water distribution services
- Recommended for irrigation, potable water, water distribution service, feed lines, and sewage disposal facilities
- Best suited for either the fully open or closed position, but is suitable for use as a throttling valve
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | 405-NRS-RW |
| Connection / Configuration | Class 125 flanged |
| Construction | Epoxy-coated cast iron |
| Maximum Pressure | 200 psi CWP |
| Listed Options | 2-1/2", 3", 4", 6", 8" |
| Product Code | 405-NRS-RW |
Product Documents
Product Questions
What is the listed connection configuration?
Class 125 flanged. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Epoxy-coated cast iron. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
2-1/2", 3", 4", 6", 8". Choose the required option before ordering.
