Harrington Hoists

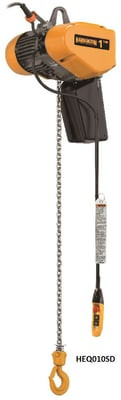

Vfd Controlled Dual Speed Electric Chain Hoists - HSEQ003SD
- SKU:
- HSEQ003SD
- Availability:
- Lead time varies. We will confirm ship date after order. Need exact lead time? Add to quote.
- Weight:
- 71.00 LBS
- Description:
- SEQ 1-Phase"
- Cap.(tons):
- 1/4
- Std.Lift:
- 10'
- Lift SpeedFPM-High:
- 33
- Lift SpeedFPM-Low:
- 5.5
- Lift SpeedFPM-No LoadHigh Speed:
- 43
- PendantCord:
- 8.2'
- Min.HeadroomTop Hook:
- 17.3
- Min.HeadroomSusp. Bar:
- 15.6
Description
Vfd Controlled Dual Speed Electric Chain Hoists - HSEQ003SD
Ergonomically designed for easy installation and operation.IP55 rated for indoor/outdoor use.5 year brake warranty.The EQ/SEQ dual speed electric chain hoists are loaded with cutting-edge features such as a no-load high-speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Both 3-phase EQ and 1-phase SEQ come standard as dual speed via variable frequency drive (VFD), a true revolution for single phase hoist controls. Both hoists have ASME H4 classification, IP55 rated enclosure and IP65 pendant. 208-230V/460-3-50/60 or 380-460V-3-50/60 power supply on the EQ, and 115/230V-1-60 (reconnectable) power supply on the SEQ. Optional suspension bar available for low headroom or enclosed track trolley applications. Push/Pull, geared or motorized trolleys available. Call for details. FOB Shipping Point.
