TriMon Digital Recording Manometer With Printer
- SKU:
- 10MTR510009
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 10.00 LBS
*Images are for visual reference only.
Frequently bought together:
Description

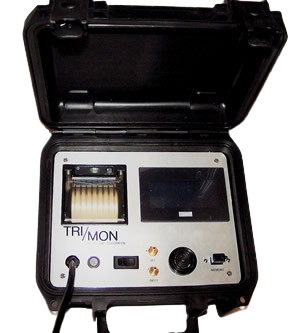

Micro Trap Corp TriMon Digital Recording Manometer With Printer
The Micro Trap Corp TriMon Digital Recording Manometer With Printer is a professional-grade differential pressure recorder designed for precise tracking and documentation of minute pressure changes in critical environments. Ideal for use in hospitals, laboratories, clean rooms, HVAC systems, environmental sites, and other controlled spaces, the TriMon combines a high-accuracy digital manometer with built-in recording and printing capabilities. The rugged design and user-programmable features make it reliable for daily monitoring and compliance reporting.
Specifications / Features
- Differential pressure range: ±0.025 in WC with high resolution (0.001 in WC) and ±1% accuracy using a capacitance-type transducer.
- Thermal printer included with 2-1/4″ paper; synchronized print & data recording.
- Color touch display for easy entry of date/time, alarm thresholds, and interval recording settings.
- Records pressure data to USB flash drive up to 8 GB.
- Adjustable hi/lo alarms with audible 90 dB alert and alarm acknowledge button.
- Rugged polyethylene case with auto zero on start-up and system self-check.
- Optional remote alarm/dialer port and UPS backup capability (optional accessories).
- Operating Temp: 32 °F to 120 °F (0 °C to 49 °C).
- Dimensions: ~9″ L × 7″ W × 6″ D.
- Weight: approx. 8 lbs.
- Power: 120/240 VAC, 50/60 Hz, 0.5 A.
