Syntiro CSDH3.0T304ZP 3" OD 304 Stainless Steel Tight-Fit Anchor Pipe Hanger with Zero Puddle™ Insert
- SKU:
- CSDH3.0T304ZP
- Availability:
- Available to Ship in 2-3 Days
- Weight:
- 2.50 LBS
Description

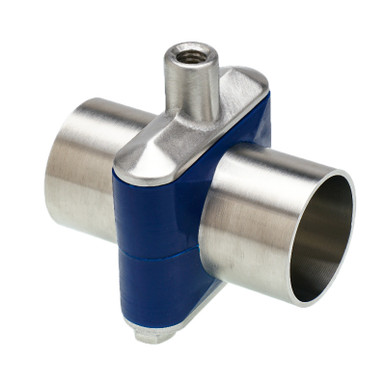

Syntiro CSDH3.0T304ZP 3" OD 304 Stainless Steel Tight-Fit Anchor Pipe Hanger
The Syntiro CSDH3.0T304ZP tight-fit anchor pipe hanger is designed to securely support tubing with an actual 3.00" outside diameter. Its polished 304 stainless steel construction and FDA-grade Zero Puddle silicone insert make it well suited for sanitary processing, cleanroom, mechanical, process, utility, and instrument-line applications.
This is a single-size hanger for 3.00" OD tubing. The tight-fit anchor configuration grips the supported tubing to establish a fixed support point and restrict axial movement within the piping system.
Product Highlights
- Designed specifically for 3.00" outside-diameter tubing
- Tight-fit anchor configuration secures the tubing in position
- 304 stainless steel hanger construction
- FDA-grade silicone Zero Puddle insert
- Raised insert geometry promotes liquid drainage on vertical and riser lines
- Reduced outside profile can be enclosed beneath an insulation jacket
- No exposed threads or openings in the hanger plates
- Cleaned and polished stainless steel plates
- Elongated threaded section provides additional elevation adjustment
- 1/2"-13 female threaded mounting connection
- Designed for sanitary, cleanroom, mechanical, and industrial applications
Technical Specifications
| Manufacturer | Syntiro Dynamics |
|---|---|
| Manufacturer Part Number | CSDH3.0T304ZP |
| Series | CSD Series |
| Mounting Style | CSDH Threaded Hang Mount |
| Hanger Configuration | Tight-Fit Anchor |
| Tube Size | 3" |
| Supported Line OD | 3.00" |
| Hanger Material | 304 Stainless Steel |
| Insert Material | FDA-Grade Silicone Rubber |
| Insert Style | Zero Puddle Tight-Fit Insert |
| Overall Height | 5.18" |
| Overall Length | 3.99" |
| Plate Width | 0.88" |
| Centerline Dimension | 3.17" |
| Mounting Thread | 1/2"-13 Female Thread |
| Continuous Temperature Range | -20°F to 302°F |
| Intermittent Temperature Range | -40°F to 320°F |
How the Tight-Fit Anchor Works
The tight-fit silicone insert grips the tubing to create a fixed support location. This helps restrict axial movement and hold the tubing securely in position. Tight-fit anchors are commonly used together with properly positioned loose-fit guides, which allow controlled movement elsewhere in the system during thermal expansion and contraction.
The hanger’s elongated threaded mounting section provides additional elevation adjustment to assist with tubing alignment, slope control, and final installation positioning.
Zero Puddle Insert Design
The FDA-grade silicone insert features raised geometry designed to encourage liquids to drain away from the hanger contact area. This is especially helpful on vertical and riser lines where condensation, cleaning solution, or process liquid could otherwise collect around the support point.
The reduced outside profile also allows the hanger to be enclosed beneath an insulation jacket when the insulation system and installation dimensions are properly selected.
Common Applications
Sanitary and Hygienic Processing
- Biotechnology facilities
- Pharmaceutical processing
- Food-processing plants
- Beverage production
- Dairy processing
- Cosmetic manufacturing
- Cleanroom environments
Process and Utility Systems
- Water-for-injection lines
- Clean-in-place systems
- Steam-in-place systems
- Process tubing
- Utility lines
- Instrument lines
- Water-treatment systems
- Semiconductor facilities
Temperature and Application Considerations
- Published continuous temperature range is -20°F through 302°F.
- Published intermittent temperature range is -40°F through 320°F.
- Contact the manufacturer for continuous elevated-temperature service or unusual environmental conditions.
- The product is intended for low-flow and low-pressure systems with moderate vibration.
- Confirm chemical compatibility of the stainless steel and silicone insert with the process media and cleaning chemicals.
Product Resource
Review the manufacturer specification sheet for dimensions, temperature limits, available sizes, installation information, and additional CSD Series configurations.
Need Help Selecting a Syntiro Pipe Hanger?
Our industrial PVF specialists can help confirm the required tubing OD, anchor or guide configuration, stainless steel grade, mounting-thread size, insulation requirements, operating temperature, and application compatibility.
Frequently Asked Questions
What tubing size does the CSDH3.0T304ZP support?
This hanger is designed specifically for tubing with an actual 3.00" outside diameter.
Is this hanger an anchor or a guide?
This model is a tight-fit anchor. It grips the supported tubing and establishes a fixed support point intended to restrict axial movement.
What is the difference between a tight-fit anchor and a loose-fit guide?
A tight-fit anchor secures the tubing and limits movement. A loose-fit guide supports the line while allowing controlled expansion and contraction during thermal cycling.
What material is the hanger made from?
The hanger hardware is manufactured from 304 stainless steel, and the Zero Puddle insert is manufactured from FDA-grade silicone rubber.
What mounting thread does this hanger use?
The CSDH3.0T304ZP has a 1/2"-13 female threaded mounting connection.
Can this hanger be installed beneath insulation?
Yes. Its reduced outside profile is designed to allow the hanger to be enclosed beneath the insulation jacket when the insulation system and installation dimensions are properly selected.
What does the Zero Puddle insert do?
The insert uses raised geometry to encourage liquids to drain away from the hanger contact area, especially on vertical and riser installations.
Is this hanger suitable for sanitary processing environments?
Yes. It is designed for applications including pharmaceutical, biotechnology, food, beverage, dairy, cosmetic, cleanroom, water-treatment, and semiconductor facilities.
What temperatures can the hanger withstand?
The published intermittent range is -40°F to 320°F, and the published continuous range is -20°F to 302°F.
Does the mounting rod come with the hanger?
Unless specifically stated in the product offering, mounting rods and related attachment hardware should be treated as separate components.
Important Ordering Notes
- This listing is for one CSDH3.0T304ZP tight-fit anchor hanger.
- The hanger is designed for tubing with an actual 3.00" outside diameter.
- Do not confuse 3.00" OD tubing with 3" nominal pipe, which has a 3.500" outside diameter.
- This is the tight-fit anchor configuration, not the loose-fit guide configuration.
- Confirm whether the piping system requires anchors, guides, or a combination of both.
- Verify tubing OD, mounting-thread size, insulation thickness, temperature, and environmental conditions before ordering.
- Confirm compatibility of the stainless steel and silicone insert with the process media and cleaning agents.
- Mounting rods, support structures, and installation hardware may be sold separately.
- Installation should be completed by qualified personnel and comply with applicable specifications, sanitary standards, and building codes.
