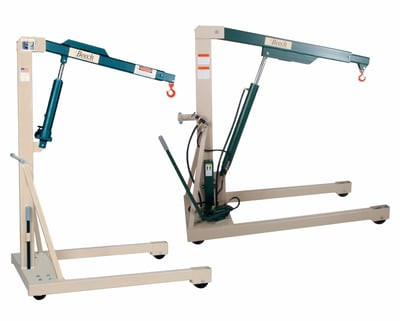

STRADDLE CRANES HB-3000
- SKU:
- HB-3000
- Availability:
- Lead time varies. We will confirm ship date after order. Need exact lead time? Add to quote.
- Weight:
- 545.00 LBS
- Description:
- Standard"
- WheelType:
- Phenolic
- Position:
- Position 1Position 2Position 3Position 4
- Capacity:
- 3000 lbs.1200 lbs.700 lbs.500 lbs.
- BoomHt. (max):
- 103110"116"126"
- Boom Length:
- 6673"85"97"
- Base Width Front:
- 34-1/2
- Base Length:
- 79
- Length inside legs:
- 65
- Wheel Size:
- 8 dia., 3"W"
- CasterSize:
- 6 dia., 2"W"
- Overall Ht.:
- 76
*Images are for visual reference only.
Frequently bought together:
Description
STRADDLE CRANES HB-3000
Safety by-pass relief valve is standard to prevent dangerous overloading.2-year warranty on entire crane -- 5 years on frame weldment. Proof tested at 150% capacity -- all cranes exceed ASME PALD-12 and ANSI Z535 Standards. Rolls smoothly, easily on long-wearing phenolic wheels with roller bearings. Optional wheels, floor lock and power lift option featuring deep cycle battery -- fully automatic charger plus a remote pendant on a 20' coil cord available -- contact for details. FOB Shipping Point. Steel surcharge may apply.
