ASC

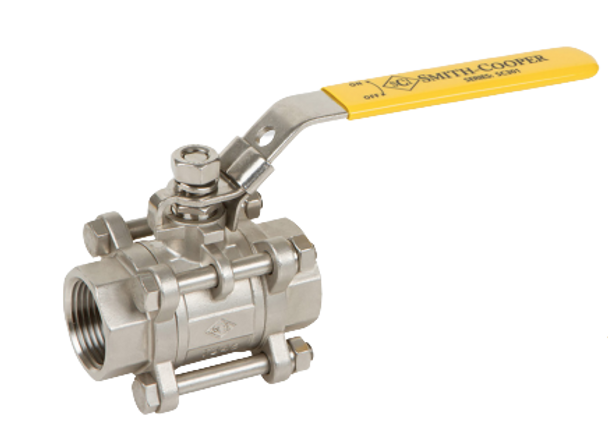

Stainless Steel Three Piece Threaded Ball Valve
- SKU:
- SC301TE
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Stainless Steel Three Piece Threaded Ball Valve
ASC / SCI Series SC301 316 Stainless Steel Three-Piece Threaded Ball Valve provides full-port, bi-directional bubble-tight shutoff for compatible industrial and commercial piping systems.
The Series SC301 features a 316 stainless steel body, ball, and end caps, Type 316 stainless steel stem, RTFE seats, threaded ends, and a serviceable three-piece construction. A blow-out-proof stem and standard locking handle provide reliable quarter-turn operation.
Product Highlights
- ASC / SCI Series SC301
- 316 stainless steel construction
- Full-port three-piece design
- Threaded end connections
- Bi-directional bubble-tight shutoff
- Standard locking lever handle
Technical Specifications
| Product Type | Three-Piece Threaded Ball Valve |
|---|---|
| Brand | ASC / SCI |
| Series | SC301 |
| Body Material | ASTM A351 Grade CF8M (316 Stainless Steel) |
| Ball Material | ASTM A351 Grade CF8M (316 Stainless Steel) |
| Stem Material | ASTM A276 Type 316 Stainless Steel |
| End Connection | Threaded |
| Port Type | Full Port |
| Seat Material | RTFE |
| Body Seal / Stem Packing | PTFE |
| Pressure Rating | 1000 CWP (1/4"–2") / 600 CWP (2-1/2"–4") |
| Steam Rating | 150 WSP |
| Vacuum Service | To 29" Hg |
| Standard | MSS SP-110 |
Construction Details
The Series SC301 uses a three-piece ASTM A351 Grade CF8M stainless steel body with matching 316 stainless steel end caps and ball. The stem is manufactured from ASTM A276 Type 316 stainless steel.
RTFE seats provide the valve seating surfaces, while PTFE is used for the body seals, thrust washer, and stem packing. The three-piece body design allows the center section to be serviced without replacing the complete valve assembly.
A blow-out-proof stem, pressure-balancing hole in the ball slot, and locking lever handle are incorporated into the valve design. Repair kits and replacement handle options are also available.
Design & Typical Applications
Valve Design
- Three-piece serviceable body
- Full-port flow path
- Quarter-turn operation
- Blow-out-proof stem
- Lockable lever handle
Typical Applications
- Industrial process piping
- Water and utility systems
- Chemical process applications
- Air and gas service
- Compatible fluid transfer systems
Installation & Selection Considerations
- Confirm valve size and pressure rating.
- Verify media compatibility with RTFE.
- Use suitable thread sealant.
- Support adjoining piping properly.
- Allow access for valve operation.
Use the Series SC301 product data sheet to confirm valve construction, materials, pressure ratings, seating, threaded connection information, and other technical requirements before ordering.
Need Help Selecting a Stainless Steel Three Piece Threaded Ball Valve?
Need help confirming valve size, pressure rating, threaded connection, seat compatibility, or process requirements? The GetPipe.com Team can help you select the correct Series SC301 valve.
Frequently Asked Questions
What series is this stainless steel ball valve?
This valve is the ASC / SCI Series SC301 three-piece 316 stainless steel ball valve.
What material is the Series SC301 made from?
The body, ball, and end caps are ASTM A351 Grade CF8M, approximately 316 stainless steel, with an ASTM A276 Type 316 stainless steel stem.
Is the Series SC301 a full-port valve?
Yes. The SC301 uses a full-port design for an unrestricted flow path through the valve.
What seat material does the valve use?
The Series SC301 uses RTFE seats with PTFE body seals and stem packing.
What is the pressure rating?
The Series SC301 is rated 1000 CWP from 1/4" through 2" and 600 CWP from 2-1/2" through 4", with a 150 WSP steam rating.
Can the Series SC301 be used in vacuum service?
Yes. The manufacturer specifies vacuum service to 29" Hg.
Does the valve include a locking handle?
Yes. A locking lever handle is standard, and optional replacement lever and oval handles are available.
What should I confirm before ordering?
Confirm valve size, threaded connection requirements, pressure rating, media compatibility, and operating conditions.
Important Ordering & Installation Notes
- Confirm the required valve size.
- Verify the applicable pressure rating.
- Confirm RTFE media compatibility.
- Use suitable thread sealant.
- Follow proper piping practices.
