Charman Inc.
Stainless Steel Braided Toilet Connector – 3/8" Compression x 7/8" Ballcock
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Stainless Steel Braided Toilet Connector – 3/8" Compression x 7/8" Ballcock
Charman stainless steel braided toilet tank connectors provide a flexible water-supply connection between a compatible 3/8" compression supply connection and a 7/8" toilet ballcock connection.
Select the required connector length and ballcock nut configuration from the product options above. Available configurations include 12", 16", and 20" lengths with either a plastic or brass 7/8" ballcock nut.
Product Highlights
- Stainless steel braided toilet tank connector
- 3/8" compression x 7/8" ballcock connection
- 304 stainless steel wire braiding
- Polyvinyl chloride (PVC) tubing
- EPDM rubber gaskets
- Brass barb construction
- 150 PSI maximum operating pressure
- Choice of plastic or brass ballcock nut
- Available in 12", 16", and 20" lengths
- No-lead SKU family
- Charman Manufacturing product family

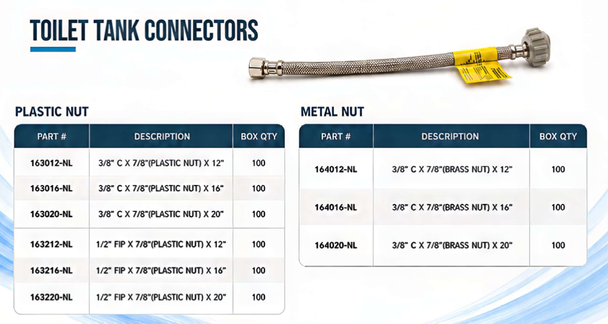

Available Configurations
| Charman Part # | Connections | Length | Ballcock Nut |
|---|---|---|---|
| 163012-NL | 3/8" Compression x 7/8" Ballcock | 12" | Plastic |
| 163016-NL | 3/8" Compression x 7/8" Ballcock | 16" | Plastic |
| 163020-NL | 3/8" Compression x 7/8" Ballcock | 20" | Plastic |
| 164012-NL | 3/8" Compression x 7/8" Ballcock | 12" | Brass |
| 164016-NL | 3/8" Compression x 7/8" Ballcock | 16" | Brass |
| 164020-NL | 3/8" Compression x 7/8" Ballcock | 20" | Brass |
Technical Specifications
| Product Type | Toilet Tank Water Connector |
|---|---|
| Connection | 3/8" Compression Thread x 7/8" Ballcock |
| Braiding | 304 Stainless Steel Wire |
| Tubing | Polyvinyl Chloride (PVC) |
| Barb | Brass |
| Rubber Gaskets | EPDM |
| Ballcock Nut | Brass or Plastic |
| Maximum Operating Pressure | 150 PSI |
| Available Lengths | 12", 16", and 20" |
| Manufacturer | Charman Inc. |
Flexible Toilet Supply Connection
The stainless steel braided design provides a flexible connection between a compatible water-supply connection and toilet tank. Charman specifies a 3/8" compression thread x 7/8" ballcock connection for this toilet tank connector family.
Plastic or Brass Ballcock Nut
Choose between plastic and brass 7/8" ballcock nut configurations based on installation requirements and preference. Both configurations are available in 12", 16", and 20" connector lengths.
Common Applications
Toilet Installations
- Toilet tank water-supply connections
- Replacement toilet connectors
- New toilet installations
- Compatible 3/8" compression supply connections
Commercial & Maintenance
- Commercial restroom installations
- Plumbing maintenance
- Repair and replacement work
- Toilet supply-line replacement
Need Help Selecting a Stainless Steel Braided Toilet Connector?
Our PVF and plumbing specialists can help confirm connector length, connection size, ballcock nut configuration, and product availability.
Frequently Asked Questions
What connections does this toilet connector have?
Charman specifies this toilet tank connector as 3/8" compression thread x 7/8" ballcock.
What lengths are available?
This connector family is available in 12", 16", and 20" lengths.
What is the braided exterior made from?
Charman specifies 304 stainless steel wire braiding.
What is the maximum operating pressure?
Charman specifies a maximum operating pressure of 150 PSI.
What is the inner tubing material?
Charman specifies polyvinyl chloride (PVC) tubing with EPDM rubber gaskets.
Can I choose between plastic and brass ballcock nuts?
Yes. This product family includes both plastic and brass ballcock nut configurations in 12", 16", and 20" lengths.
How do I choose the correct variation?
Select the combination of connector length and ballcock nut material required for your installation.
Important Ordering Notes
- Select the required length and ballcock nut configuration before adding the product to your cart.
- All variations use a 3/8" compression x 7/8" ballcock connection.
- Available lengths are 12", 16", and 20".
- Plastic and brass ballcock nut configurations use different Charman part numbers.
- The selected variation determines the Charman part number, selling price, weight, and net cost.
- Verify connection sizes and required connector length before installation.
