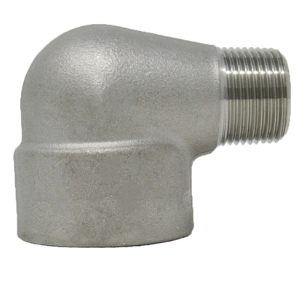

Stainless Steel 3000# Threaded Street 90° Elbow
- SKU:
- SS3MST90
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Stainless Steel 3000# Forged Street 90° Elbows - Grades 304L & 316L
Stainless Steel 3000# Forged Street 90° Elbows are designed to provide a compact 90-degree directional change while connecting a male threaded end directly into a compatible female threaded fitting or component. This street-elbow configuration can reduce the need for an additional nipple in tight piping assemblies.
Available in 304L and 316L stainless steel, these forged fittings are manufactured to recognized ASME and MSS standards for material quality, dimensional consistency, and threaded connection compatibility in demanding commercial and industrial piping systems.
Product Highlights
- 3000# forged stainless steel street 90° elbow
- Available in 304L and 316L stainless steel grades
- Street-style configuration with male and female threaded ends
- Provides a compact 90° directional change
- Can eliminate the need for a separate pipe nipple in some assemblies
- Forged stainless steel material conforms to ASME A182
- Forged fitting dimensions conform to ASME B16.11
- NPT threads conform to ASME B1.20.1
- Manufactured in an ISO 9001:2008 certified facility
- Suitable for industrial, commercial, and process piping applications
Technical Specifications
| Product Type | Forged Street 90° Elbow |
|---|---|
| Pressure Class | 3000# |
| Available Grades | 304L & 316L Stainless Steel |
| Construction | Forged Stainless Steel |
| Elbow Angle | 90° |
| Connection Style | Street / Male NPT x Female NPT |
| Material Standard | ASME A182 |
| Fitting Dimensional Standard | ASME B16.11 |
| Thread Standard | ASME B1.20.1 NPT |
| Manufacturing Quality | ISO 9001:2008 Certified Facility |
Street Elbow Design
A street elbow combines a male threaded connection on one end with a female threaded connection on the other. This allows the elbow to thread directly into a compatible female fitting, valve, or equipment connection without requiring a separate nipple between components.
The compact configuration is especially useful where installation space is limited or where reducing the number of threaded joints is desirable.
3000# Forged Construction
These elbows are manufactured from forged stainless steel conforming to ASME A182. Forged construction provides a durable fitting body intended for demanding threaded piping applications.
Fitting dimensions conform to ASME B16.11, while NPT threaded connections conform to ASME B1.20.1.
304L vs. 316L Stainless Steel
304L Stainless Steel
- General-purpose stainless steel grade
- Strong corrosion resistance for many industrial applications
- Commonly used in water and process piping
- Low-carbon stainless grade
316L Stainless Steel
- Enhanced corrosion resistance for more demanding environments
- Commonly selected for marine and chloride-exposed applications
- Useful in many chemical and process piping systems
- Low-carbon stainless grade
NPT Threaded Connections
The threaded connections conform to ASME B1.20.1 for National Pipe Taper (NPT) threads. The tapered thread design is intended to create a secure mechanical connection when assembled with compatible threaded components.
Use an appropriate thread-sealing method for the piping media and application, and confirm thread size and compatibility before assembly.
Related Forged Fitting Standards
The broader forged stainless steel fitting family includes related components manufactured to additional standards:
- ASME B16.11 - Socket weld forged fittings
- MSS SP-83 - Forged stainless steel unions
- MSS SP-97 - Forged stainless steel outlets
- MSS SP-79 - Forged stainless steel socket weld inserts
These standards apply to related fitting types within the same forged stainless steel product family.
Common Applications
Compact Threaded Piping
- Valve connections
- Equipment connections
- Instrument piping
- Space-constrained piping layouts
- General threaded piping assemblies
Industrial & Corrosion-Resistant Service
- Industrial process piping
- Chemical processing
- Water treatment systems
- Marine applications
- Stainless steel piping systems
Need Help With Forged Fitting Selection?
Confirm the nominal pipe size, 3000# pressure class, 304L or 316L material grade, male and female NPT thread sizes, and mating component compatibility before ordering.
Use the product documents below to review threaded fitting dimensions and common pipe diameter and wall thickness information.
Product Documents
Stainless Steel 3M Threaded Fitting Dimensions
Use this reference to verify dimensional information for compatible 3000# stainless steel threaded fittings.
- Dimensional reference for 3M threaded fittings
- Useful for confirming nominal fitting size
- Supports NPT threaded fitting selection
- Recommended for checking compatibility before assembly
Pipe Chart: Common Diameters & Wall Thicknesses
Use this pipe chart to confirm common nominal pipe sizes, outside diameters, and wall thicknesses when selecting compatible forged fittings.
- Common pipe outside diameters
- Reference wall thickness information
- Useful for confirming pipe-to-fitting compatibility
- Recommended before ordering or installation
Frequently Asked Questions
What is a street 90° elbow?
A street elbow has a male threaded connection on one end and a female threaded connection on the other, allowing it to connect directly into another threaded component.
How is a street elbow different from a standard 90° elbow?
A standard threaded elbow typically has female connections on both ends, while a street elbow has one male and one female connection.
What pressure class are these elbows?
These are 3000# forged stainless steel street 90° elbows.
What stainless steel grades are available?
These elbows are available in 304L and 316L stainless steel.
What material standard applies?
The forged stainless steel material conforms to ASME A182.
What dimensional standard applies?
The forged stainless steel fitting dimensions conform to ASME B16.11.
What standard applies to the threads?
NPT threads conform to ASME B1.20.1.
Why use a street elbow?
A street elbow can connect directly into a female-threaded fitting or component, which can reduce the number of fittings and threaded joints required in a compact piping assembly.
Where can I find threaded fitting dimensions?
Use the Stainless Steel 3M Threaded Fitting Dimensions PDF in the Product Documents section above.
How can I confirm pipe outside diameter and wall thickness?
Use the Pipe Chart: Common Diameters & Wall Thicknesses PDF in the Product Documents section above.
Important Ordering Notes
- Product type: Stainless Steel 3000# Forged Street 90° Elbow.
- Connection style: Male NPT x Female NPT.
- Available in 304L and 316L stainless steel.
- Forged stainless steel material conforms to ASME A182.
- Forged stainless steel fitting dimensions conform to ASME B16.11.
- NPT threads conform to ASME B1.20.1.
- Related socket weld fittings conform to ASME B16.11.
- Related forged stainless unions conform to MSS SP-83.
- Related forged stainless outlets conform to MSS SP-97.
- Related forged stainless socket weld inserts conform to MSS SP-79.
- Manufactured in an ISO 9001:2008 certified facility.
- Confirm nominal pipe size, thread configuration, pressure requirements, and material grade before ordering.
- Refer to both Product Documents for dimensional and pipe-size information.
