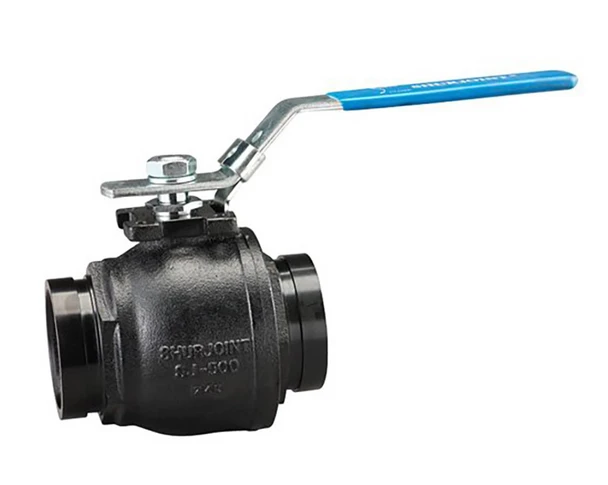

Shurjoint SJ-500L Grooved Ball Valve with Stainless Steel Trim & Lever Handle
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Shurjoint SJ-500L Grooved Ball Valve with Stainless Steel Trim & Lever Handle
Shurjoint SJ-500L grooved ball valves are two-piece, regular-port valves built with a ductile iron body and stainless steel trim for reliable manual isolation in grooved piping systems.
Select the required nominal pipe size from the product options above. This product page covers stainless-steel-trim SJ-500L lever-operated valves in 1-1/2", 2", 2-1/2", 3", 4", and 6" sizes.
Product Highlights
- Shurjoint SJ-500L lever-operated grooved ball valve
- Ductile iron body and end cap
- Stainless steel ball, stem, and lever-handle trim
- Grooved x grooved end connections
- Two-piece, regular-port ball valve design
- Virgin TFE seats with reinforced TFE body seal
- Locking holes in lever handle for tamper-resistant operation
- Designed and tested in conformance with MSS SP-110 and MSS SP-72
- High working-pressure capability for industrial grooved piping systems
Technical Specifications
| Manufacturer | Shurjoint / Aalberts Integrated Piping Systems |
|---|---|
| Model | SJ-500L |
| Valve Type | Two-Piece Regular-Port Ball Valve |
| Operation | Manual Lever Handle |
| End Connections | Grooved x Grooved |
| Body Material | Ductile Iron |
| Trim | Stainless Steel Ball, Stem & Lever Handle |
| Seat Material | Virgin TFE |
| Body Seal | Reinforced TFE |
| Applicable Standards | MSS SP-110 and MSS SP-72 |
| Available Sizes on This Page | 1-1/2", 2", 2-1/2", 3", 4", 6" |
Size & Pressure Information
| Nominal Size | GetPipe SKU | Approx. Weight | Maximum Working Pressure* |
|---|---|---|---|
| 1-1/2" | SJT50015SS | 3.86 lb | 1000 psi |
| 2" | SJT5002SS | 6.44 lb | 1000 psi |
| 2-1/2" | SJT50025SS | 9.70 lb | 1000 psi |
| 3" | SJT5003SS | 17.28 lb | 1000 psi |
| 4" | SJT5004SS | 32.41 lb | 800 psi |
| 6" | SJT5006SS | 90.20 lb | 600 psi |
*Working-pressure ratings are manufacturer ratings for the valve and may depend on pipe material, wall thickness, groove type, joining method, temperature, and application. Always verify the complete system rating before installation.
Common Applications
Mechanical & Building Systems
- Heating-water systems
- Cooling-water systems
- Mechanical equipment rooms
- General grooved piping isolation
Industrial & Utility Service
- Compressed-air systems
- Industrial process piping
- Utility piping
- Plant maintenance and replacement work
Product Resources
Review current manufacturer-published product information, dimensional data, specifications, approvals, and available downloads before final selection or installation.
Need Help Selecting a Grooved Ball Valve?
Our PVF specialists can help confirm valve size, trim, pressure requirements, grooved-system compatibility, and application details before you order.
Frequently Asked Questions
What is the Shurjoint SJ-500L?
The SJ-500L is a lever-operated, grooved-end, two-piece ball valve designed for manual isolation in grooved piping systems.
Is the SJ-500L valve body stainless steel?
No. The stainless-steel-trim versions on this page use a ductile iron valve body with stainless steel ball, stem, and lever-handle trim.
What sizes are available on this GetPipe product page?
This page includes 1-1/2", 2", 2-1/2", 3", 4", and 6" stainless-steel-trim lever-operated SJ-500L valves.
What are the end connections?
The SJ-500L uses grooved end connections on both sides for installation in compatible grooved piping systems.
What is the pressure rating?
Manufacturer documentation lists the 1-1/2" through 3" SJ-500L at up to 1000 psi, the 4" size at up to 800 psi, and the 6" size at up to 600 psi. The allowable system working pressure can be lower depending on the pipe, groove, temperature, joining components, and application.
Does the lever handle lock?
The lever handle incorporates locking holes intended for tamper-resistant positioning and lockout-style control when used with appropriate hardware.
What standards apply to the SJ-500L?
Shurjoint manufacturer literature identifies the SJ-500L as designed and tested in conformance with MSS SP-110 and MSS SP-72.
Can this valve be used in compressed-air service?
Shurjoint lists compressed air among the applications for the SJ-500L family. Verify pressure, temperature, media compatibility, and complete-system requirements for your specific installation.
Important Ordering Notes
- Select the required nominal pipe size before adding the valve to your cart.
- The selected variation determines the Shurjoint item number, UPC, weight, price, and cost.
- This page is for SJ-500L valves with stainless steel trim and lever handle.
- Do not confuse this product with the all-stainless SJ-600L valve series.
- Confirm valve and complete-system pressure ratings before installation.
- Piping systems must be depressurized and drained before valve removal, service, or disassembly.
- Always follow manufacturer installation instructions, applicable codes, and site safety requirements.
