Sioux Chief

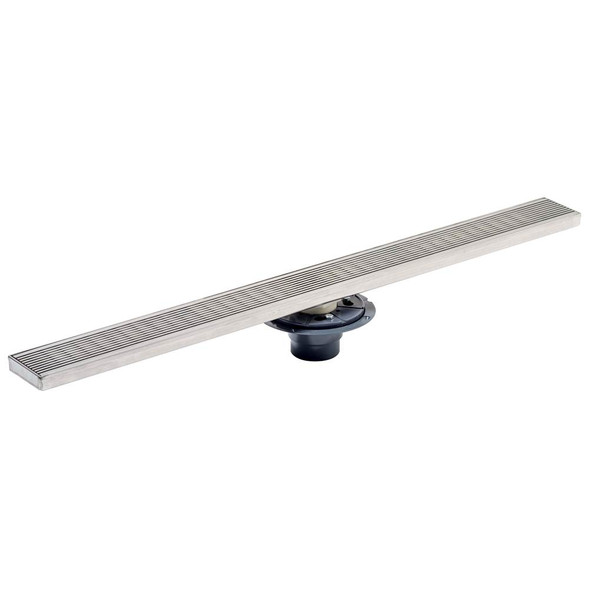

Shower Pan Drain With 48 In Linear Head - Stamped Strainer
(No reviews yet)
Write a Review
- SKU:
- 823-TX48WP
- Availability:
- Ships in 3-5 Days
- Weight:
- 12.50 LBS
*Images are for visual reference only.
Frequently bought together:
Description
Shower Pan Drain With 48 In Linear Head - Stamped Strainer
Sioux Chief 823 Series linear shower pan drains shall be used where necessary in drainage systems. Linear drain head and strainer shall be stainless steel with ADA compliant pattern and height adjustable using threaded adapter. Compact-design drain body shall have peripheral notches for securing to sub floor and 2” Sch. 40 hub connection. Invertible clamping
collar shall fasten to drain body with four screws into brass inserts. Drain shall include DoubleDuty™ test plug. Designed in accordance with ASME A112.18.2-2005 / CSA B125.2-05.
DIMENSIONS
Head length 26", 30", 36", 40", 48", 60"
A: Connection 2" Sch. 40 hub
B: Head width 3-3/8"
C: Body height 2-1/2"
D: Adjustable height 1-1/2" – 3"
E: Head depth 7/8"
F: Flange diameter 5-1/2"
