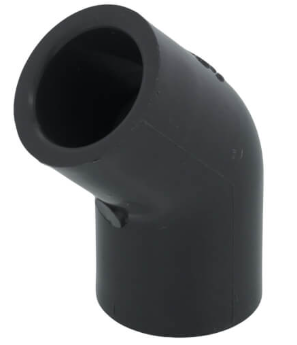

Schedule 80 PVC 45-Degree Elbow (SOC x SOC)

Product Highlights

• PVC construction
• Schedule 80 design
• 45-degree elbow
• Socket x socket ends
• Provides a defined directional change
• Uses matching socket connections at both ends
• Supports angled routing in Schedule 80 PVC piping
• Creates a 45-degree transition between compatible pipe sections

The 45-degree elbow configuration redirects compatible PVC piping through a defined angular change while maintaining a continuous piping route. This geometry is useful for offsets, gradual routing transitions, and piping layouts where a change in direction is required without using the sharper turn provided by a 90-degree elbow.

The intended direction should be established during system layout so the elbow follows the planned route without introducing an unwanted offset. Confirming the angle and orientation before joining also helps adjoining pipe sections approach the fitting naturally and reduces the need for corrective movement after assembly.

The Socket x Socket connections provide receiving ends for appropriately sized compatible PVC pipe on both sides of the elbow. Using matching connection styles creates a straightforward arrangement for installing the fitting between two pipe sections while introducing the required 45-degree directional change.

Both pipe ends should be measured, prepared, and aligned before the socket joints are completed so the elbow remains in its intended position. Proper preparation of the mating surfaces and use of compatible PVC joining materials help support consistent assembly at both socket connections.

The Schedule 80 PVC configuration allows the elbow to integrate with compatible Schedule 80 PVC piping where a 45-degree change in direction is required. Matching the fitting to the proper nominal pipe size and surrounding system components helps maintain the intended connection arrangement throughout the completed installation.

Application suitability should be evaluated using the requirements of the complete piping system rather than the schedule designation alone. Intended service conditions, adjoining materials, joining method, connected components, piping support, and applicable installation practices should all be considered during fitting selection.

A Schedule 80 PVC 45-Degree Elbow can help route piping around equipment, structural elements, or other system components while maintaining a predictable angular transition. The fixed 45-degree geometry can also be incorporated into planned offsets where the piping route requires a controlled change rather than a right-angle turn.

Installation planning should consider pipe lengths, elbow orientation, nearby fittings, support locations, and the effect of the directional change on downstream piping. Adjoining pipe should approach both sockets in proper alignment so the elbow is not forced or twisted to compensate for an incorrectly positioned piping run.

• Confirm the nominal size.
• Verify the 45-degree direction.
• Check Schedule 80 PVC compatibility.
• Confirm socket connections at both ends.
• Match the elbow orientation to the piping route.
