Spears

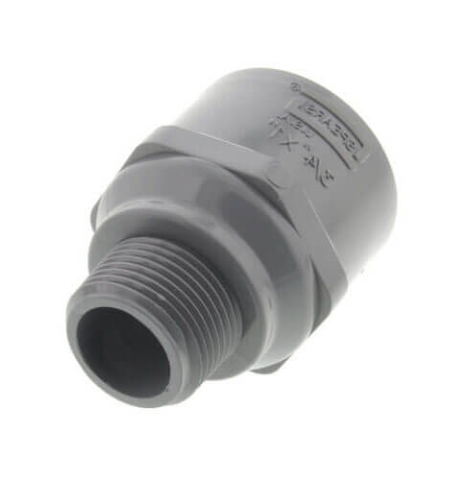

Schedule 80 CPVC Reducing Male Adapter (MPT x SOC)
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Schedule 80 CPVC Reducing Male Adapter (MPT x SOC)
Schedule 80 CPVC Reducing Male Adapter (MPT x SOC) provides a size transition between a male-threaded connection and compatible CPVC pipe. The fitting combines a Male Pipe Thread connection with a solvent-cement socket connection in a reducing adapter configuration.
The Schedule 80 CPVC reducing male adapter is designed for piping layouts that require a transition between different nominal sizes and different connection methods. Selection should account for both connection sizes, male-thread compatibility, socket compatibility, system conditions, and proper CPVC installation procedures.
Product Highlights
- CPVC construction
- Schedule 80 design
- Reducing adapter configuration
- MPT x SOC connections
- Male-threaded interface
- Socket connection interface
- Combines threading and solvent-cement joining
- Transitions between different nominal sizes
Technical Specifications
| Product Type | Reducing Male Adapter |
|---|---|
| Material | CPVC |
| Schedule | Schedule 80 |
| Configuration | Reducing Male Adapter |
| Connection | Male Pipe Thread (MPT) x Socket (SOC) |
| Male Thread Interface | Compatible Female Pipe Thread |
| Socket Interface | Compatible CPVC Pipe |
| Size Transition | Different Nominal Connection Sizes |
| Joining Method | Threaded Connection x CPVC Solvent-Cement Connection |
| Primary Function | Provide a Reducing Transition Between a Female-Threaded Component and Compatible CPVC Pipe |
Reducing Adapter Design
The reducing adapter design combines a change in nominal size with a change in connection method. One end provides a Male Pipe Thread connection while the opposite end provides a socket connection for compatible CPVC pipe.
Both nominal connection sizes should be verified before ordering. The threaded and socket ends should also be identified before installation so the fitting is oriented correctly.
Male Threaded Connection
The Male Pipe Thread connection is designed to engage an appropriately sized compatible female-threaded component. This creates the threaded side of the reducing transition.
Threads should be clean and properly aligned before assembly. Appropriate threaded plastic-piping procedures and compatible sealing materials should be used while avoiding excessive tightening.
Socket Connection
The socket connection accepts appropriately sized compatible CPVC pipe for solvent-cement joining. The pipe end and fitting socket should be clean, properly prepared, and aligned before assembly.
Compatible CPVC primer, solvent cement, insertion procedures, and required cure times should be followed. The completed connection should remain undisturbed throughout the applicable curing period.
Schedule 80 CPVC Application
A Schedule 80 CPVC Reducing Male Adapter provides a compact transition between a female-threaded component and CPVC pipe of a different nominal size. This can reduce the need for separate threaded and reducing fittings.
System temperature, pressure, fluid compatibility, thread compatibility, joining requirements, and applicable installation procedures should be reviewed for the intended application. Proper support should be maintained on both sides of the adapter.
Installation & Selection Considerations
- Confirm both nominal sizes.
- Verify the MPT x SOC configuration.
- Confirm female-thread compatibility.
- Check socket and pipe compatibility.
- Avoid excessive threaded tightening.
Our piping specialists can help review both nominal sizes, MPT compatibility, socket requirements, adjoining CPVC pipe, and installation considerations before you order.
Frequently Asked Questions
What is a Schedule 80 CPVC Reducing Male Adapter used for?
It provides a reducing transition between a compatible female-threaded component and CPVC pipe.
What does MPT x SOC mean?
It means the fitting has one Male Pipe Thread connection and one socket connection.
What connects to the MPT end?
The Male Pipe Thread end connects to an appropriately sized compatible female-threaded component.
How is the socket end installed?
The socket end is designed for compatible CPVC solvent-cement joining using proper preparation, joining materials, and cure procedures.
What makes this a reducing adapter?
The two ends are designed to transition between different nominal connection sizes.
What should I confirm before ordering?
Confirm both nominal sizes, MPT x SOC configuration, mating female thread, adjoining CPVC pipe size, and system requirements.
Important Ordering & Installation Notes
- Confirm both nominal sizes.
- Verify the MPT x SOC configuration.
- Confirm mating thread compatibility.
- Check socket connection requirements.
- Use compatible CPVC joining procedures.
