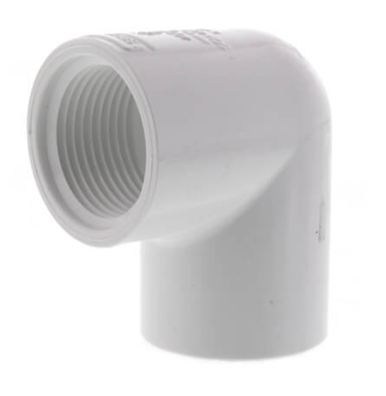

Schedule 40 PVC 90 Elbow (SOC x FIPT)
- SKU:
- 407
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Schedule 40 PVC 90° Elbow (SOC x FIPT)
Schedule 40 PVC Socket x FIPT 90° Elbows provide a compact transition between solvent-weld PVC piping and compatible male-threaded components while changing flow direction by 90 degrees.
Featuring one socket connection and one female iron pipe thread (FIPT) connection, this fitting allows Schedule 40 PVC pipe to connect to threaded valves, fittings, equipment, or other compatible components at a right angle. Durable PVC construction provides corrosion resistance, lightweight handling, and dependable performance in potable water, irrigation, pool, spa, and other compatible cold-water pressure piping applications.
Product Highlights
- Schedule 40 PVC 90° elbow
- Socket x Female Iron Pipe Thread configuration
- Creates a 90-degree directional change
- Connects solvent-weld PVC pipe to male-threaded components
- Socket end accepts compatible Schedule 40 PVC pipe
- FIPT end accepts a compatible male pipe thread
- Designed for cold-water pressure applications
- Corrosion-resistant PVC construction
- Smooth internal surfaces support efficient flow
- Suitable for potable water applications
- Commonly used in irrigation, pool, and spa systems
Technical Specifications
| Product Type | Schedule 40 PVC 90° Elbow |
|---|---|
| Material | PVC |
| Connection Type | Socket (SOC) x Female Iron Pipe Thread (FIPT) |
| Joint Methods | Solvent Weld x Threaded |
| Bend Angle | 90° |
| System Type | Schedule 40 PVC Pressure Piping |
| Service | Cold-Water Pressure Applications |
| Primary Function | 90° Directional Change with Threaded Transition |
| Referenced Standards | ASTM D2466, ASTM D1784, CSA B137.3, NSF/ANSI 14, NSF/ANSI 61, cNSF, and cUPC |
| Typical Applications | Potable Water, Irrigation, Pool, Spa, Residential, Commercial, and Municipal Piping Systems |
Connection Configuration
Socket End
The socket connection accepts compatible Schedule 40 PVC pipe for a permanent solvent-weld joint.
Female Threaded End
The FIPT connection accepts a compatible male-threaded fitting, nipple, valve, or equipment connection.
Construction Details
The elbow is manufactured from high-quality Schedule 40 PVC for resistance to corrosion, chemical exposure, scaling, and environmental conditions commonly encountered in compatible cold-water pressure systems.
The socket end is designed for solvent-cement joining to compatible Schedule 40 PVC pipe, while the female threaded end provides a removable mechanical connection to compatible male-threaded components.
The 90-degree elbow configuration combines directional change and threaded transition functions in a single compact fitting.
Why Choose a SOC x FIPT 90° Elbow?
Directional Change & Transition
- Creates a 90° change in piping direction
- Connects PVC pipe to male-threaded components
- Combines two functions in one fitting
- Useful for valves and equipment connections
- Helps simplify compact piping layouts
PVC Pressure-Piping Benefits
- Corrosion-resistant construction
- Lightweight material
- Smooth internal flow path
- Low maintenance requirements
- Suitable for compatible cold-water applications
Typical Applications
Water & Irrigation Systems
- Potable water distribution
- Residential cold-water piping
- Irrigation systems
- Threaded valve connections
- Equipment transitions
Pool, Spa & Commercial Systems
- Swimming pool plumbing
- Spa circulation systems
- Commercial cold-water piping
- Pump and equipment connections
- General Schedule 40 PVC pressure systems
Installation
Verify the nominal socket size and female thread size before installation. Cut compatible Schedule 40 PVC pipe square and remove burrs from the pipe end.
Prepare the socket connection according to accepted PVC solvent-weld procedures. Apply compatible PVC primer and solvent cement where required, then fully seat the pipe into the socket.
For the female threaded connection, use an appropriate thread-sealing method compatible with PVC and the intended service. Start the male-threaded component by hand and avoid excessive tightening that could damage the PVC threads or fitting body.
Confirm the 90-degree orientation before the solvent cement begins to set. Allow the solvent-weld joint to cure according to the cement manufacturer's recommendations before pressurizing or placing the piping system into normal service.
Our plumbing specialists can help review your socket size, female thread size, mating component, pressure application, and installation requirements before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is a Schedule 40 PVC SOC x FIPT 90° elbow used for?
It is used to create a 90-degree directional change while transitioning from compatible Schedule 40 PVC pipe to a male-threaded component.
What does SOC mean?
SOC means socket. The socket end accepts compatible Schedule 40 PVC pipe for solvent-weld installation.
What does FIPT mean?
FIPT means Female Iron Pipe Thread. The threaded end accepts a compatible male pipe thread.
How is this fitting installed?
The socket end is solvent welded to compatible Schedule 40 PVC pipe, while the FIPT end connects to a compatible male-threaded fitting or component.
Can this fitting connect directly to a threaded valve?
Yes, provided the valve has a compatible male-threaded connection of the correct size and is suitable for the intended application.
Should PVC female threads be overtightened?
No. Excessive tightening can stress or damage PVC threads and fitting bodies. Threaded connections should be started by hand and tightened only as needed.
Can this fitting be used for potable water?
The supplied product information identifies this fitting for potable water applications and references NSF/ANSI 61 among its applicable standards.
Can it be used for irrigation, pool, and spa systems?
Yes. Irrigation, pool, and spa plumbing are among the listed applications for this Schedule 40 PVC fitting.
What standards are referenced for this fitting?
The supplied product information references ASTM D2466, ASTM D1784, CSA B137.3, NSF/ANSI 14, NSF/ANSI 61, cNSF, and cUPC.
What should I verify before ordering?
Confirm the socket size, female thread size, mating male-threaded component, 90-degree orientation, operating requirements, and compatibility with the intended Schedule 40 PVC pressure system.
