ASC

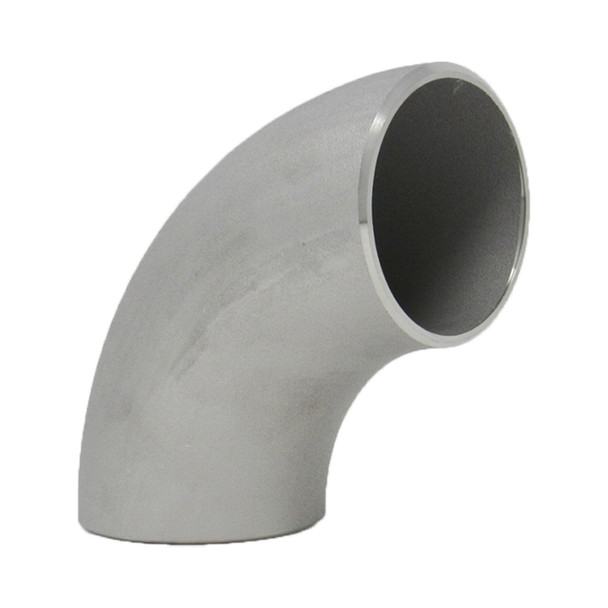

Schedule 10 90° Elbow Long Radius 316/L
- SKU:
- S2016LE
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Schedule 10 90° Elbow Long Radius 316/L
ASC / SCI Schedule 10 316/316L Stainless Steel 90° Long Radius Elbows provide a gradual 90-degree directional change in compatible butt-weld piping systems.
SCI Figure S2016LE is manufactured from 316/316L stainless steel and uses butt-weld end connections for permanent installation where a long radius 90° piping transition is required.
Product Highlights
- ASC / SCI stainless weld fitting
- Figure S2016LE
- 316/316L stainless steel
- Schedule 10 wall designation
- Butt-weld end connections
- 90° long radius design
Technical Specifications
| Product Type | Stainless Steel 90° Long Radius Elbow |
|---|---|
| Brand | ASC / SCI |
| Figure | S2016LE |
| Material | 316/316L Stainless Steel |
| Schedule | Schedule 10 |
| Configuration | 90° Long Radius Elbow |
| Connection Type | Butt Weld |
| Material Standards | ASTM A403 / ASTM A960 |
| Dimensional Standards | ASME B16.9 (Except Wall) / MSS SP-43 |
Construction Details
The SCI S2016LE elbow is manufactured from 316/316L stainless steel for compatible Schedule 10 butt-weld piping systems.
SCI stainless weld fittings conform to applicable ASTM A403 and ASTM A960 requirements, with dimensional requirements based on ASME B16.9, except wall thickness, and MSS SP-43.
The long radius configuration provides a gradual 90° change in piping direction and is designed for permanent welded installation.
Long Radius Design & Typical Applications
Long Radius Design
- 90° directional change
- Long radius configuration
- Butt-weld connections
- 316/316L stainless construction
- Schedule 10 configuration
Typical Applications
- Industrial process piping
- Stainless steel piping
- Utility piping systems
- Equipment piping
- General industrial service
Installation & Selection Considerations
- Confirm the required pipe size.
- Verify 316/316L compatibility.
- Confirm Schedule 10 requirements.
- Verify long radius is required.
- Use proper welding procedures.
Use the supplied SCI documents to review stainless weld fitting specifications and adjoining pipe diameter and wall-thickness information when selecting the correct long radius elbow.
Need Help Selecting a Schedule 10 316/L 90° Long Radius Elbow?
Need help confirming pipe size, Schedule 10 requirements, 316/316L material, or whether a long radius elbow is right for your piping layout? The GetPipe.com Team can help.
Frequently Asked Questions
What is the SCI figure for this 90° long radius elbow?
This Schedule 10 316/316L stainless steel 90° long radius elbow is identified as SCI Figure S2016LE.
What material is the elbow?
The fitting is manufactured from 316/316L stainless steel.
What type of connections does this elbow use?
The elbow uses butt-weld end connections for permanent installation in compatible stainless steel piping.
What directional change does this elbow provide?
The fitting provides a 90-degree change in the direction of the piping run.
What does long radius mean?
Long radius describes the elbow's more gradual turning configuration compared with a short radius 90° elbow.
What dimensional standards apply?
SCI specifies ASME B16.9 dimensions, except wall thickness, along with MSS SP-43 for this stainless weld fitting family.
Does Schedule 10 indicate the pressure rating?
No. Schedule 10 identifies the wall-thickness designation and should not be treated as a universal system pressure rating.
What should I confirm before ordering?
Confirm the pipe size, 316/316L material, Schedule 10 requirements, butt-weld connections, and that a long radius configuration is required.
Important Ordering & Installation Notes
- Confirm Figure S2016LE.
- Verify the required pipe size.
- Confirm Schedule 10 requirements.
- Verify long radius configuration.
- Follow proper welding procedures.
