Leviton
Recessed Single Receptacle with Wall Decor Hanger Hook
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description
Residential / Recessed Receptacles
Recessed Single Receptacle
with Wall Decor Hanger Hook
Combine a recessed power connection and an integrated clock hanger hook in one residential-grade device. Available in White or Ivory to coordinate with the installation.

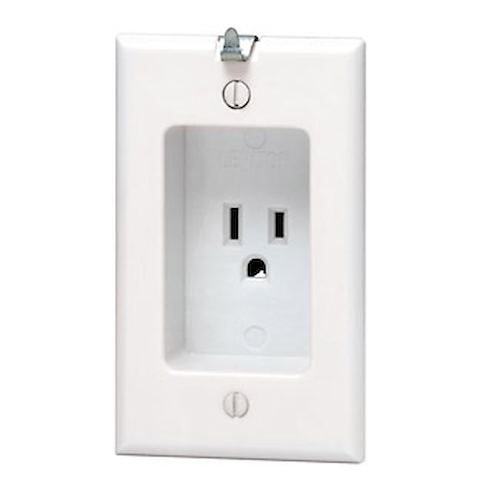

White 688-W shown
Product Features
- Single grounded receptacle with recessed face
- Integrated wall decor / clock hanger hook
- 2-pole, 3-wire construction
- Thermoplastic body and face; steel mounting strap
- Side-wire termination
Available Finishes
Available in White or Ivory to coordinate with your installation.
| Color | Manufacturer SKU |
|---|---|
| White | 688-W |
| Ivory | 688-I |
Technical Specifications
| Manufacturer | Leviton |
|---|---|
| Grade | Residential |
| Grounding | Grounding type |
| Standards / Certifications | UL / CSA |
| Terminal Torque | 14–18 in.-lbs. |
| Manufacturer Warranty | 2-Year Limited |
Designed for residential wall installations where both a grounded electrical connection and a convenient hanging point are needed in the same location.
The recessed face helps reduce plug projection from the wall, while the integrated hanger supports compatible clocks and lightweight powered wall decor up to the specified 2 lb maximum.
- 2-pole, 3-wire grounding configuration
- Side-wire terminal connection
- Use the specified 14–18 in.-lbs. terminal torque
- Verify the electrical circuit and application requirements before installation
Leviton specifies a two-pound limit for the 688 clock hanger hook. Check the weight of the item you plan to hang.
The recessed receptacle positions the plug connection farther into the wall area than a conventional receptacle, helping wall-mounted clocks and decorative items sit closer to the finished wall surface.
The integrated hanger hook combines the hanging point and electrical connection in the same device location, making the 688 Series especially useful for compatible electric clocks and lightweight powered wall decor.
A thermoplastic body and face are paired with a steel mounting strap for residential installation.
The 15A, 125V NEMA 5-15R device uses a grounded 2-pole, 3-wire configuration with side-wire termination.
Product Questions
What changes between 688-W and 688-I?
The finish is the difference. 688-W is White and 688-I is Ivory. Both are 15A, 125V recessed single receptacles with an integrated hanger hook.
How much weight can the hanger hook support?
Leviton specifies a maximum hanger-hook capacity of 2 lb. Confirm the weight of the clock or wall decor before installation.
Is this a single or duplex receptacle?
This is a single receptacle. It provides one grounded NEMA 5-15R receptacle rather than the two outlets found on a standard duplex device.
