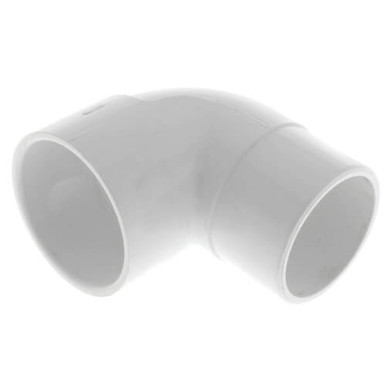

Schedule 40 PVC Street 90 Elbow (SPIG x SOC)

Schedule 40 PVC Street 90° Elbows (Spigot x Socket) provide a compact and efficient method for creating a 90-degree directional change in cold-water pressure piping systems. Manufactured from durable, corrosion-resistant PVC, these fittings offer excellent flow performance, low installation costs, and long-term reliability.

Ideal for potable water supply, irrigation, pool, and spa plumbing applications, Schedule 40 PVC fittings are third-party certified and engineered to deliver dependable performance in residential, commercial, and municipal piping systems.

Key Features

• Schedule 40 PVC street 90° elbow fitting
• Spigot x socket connection design
• Provides a 90° directional change in piping systems
• Corrosion-resistant PVC construction
• Designed for cold-water pressure applications
• High flow capacity with smooth interior surfaces
• Suitable for potable water systems
• Ideal for irrigation, pool, and spa plumbing
• Easy solvent-weld installation
• Third-party certified for quality and performance

Construction Details

Manufactured from high-quality Schedule 40 PVC material, this street elbow provides excellent resistance to corrosion, chemical exposure, and environmental conditions commonly encountered in water distribution systems.

The spigot end fits directly into a socket fitting while the socket end accepts Schedule 40 PVC pipe, helping reduce the need for additional fittings and simplifying installation.

Its smooth interior surfaces promote efficient flow while minimizing turbulence and pressure loss throughout the piping system.

Important Notes

Designed for cold-water pressure applications including potable water supply, irrigation, and pool/spa systems.

Complies with ASTM D2466, ASTM D1784, CSA B137.3, NSF/ANSI 14, NSF/ANSI 61, cNSF, and cUPC standards.

Consult manufacturer specifications for pressure ratings, installation procedures, and compatibility requirements before use.

Product Documents

Lesso Catalog Schedule 40 & DWV Spec Sheet
