Lesso America
PVC DWV Combination Wye and 1/8 Bend Double Assembly (Two Piece) (All HUB)
- SKU:
- LP507
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
PVC DWV Combination Wye and 1/8 Bend Double Assembly (Two Piece) (All HUB)
PVC DWV Combination Wye and 1/8 Bend Double Assembly (Two Piece) (All HUB) is a combination wye and 1/8 bend double assembly designed to provide Multiple Gradual DWV Branch Transitions.
Manufactured from PVC, this fitting uses the All Hub connection configuration for use with PVC DWV Fittings. Confirm the selected size and adjoining components before installation.

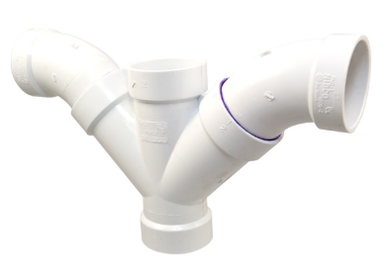

Product image • Confirm selected size and configuration
ALL HUB
Connection Type
The listed All Hub configuration identifies the connection arrangement for this product.
Mating Components
Confirm each adjoining pipe, fitting, or threaded component matches the selected nominal size and connection type before assembly.
Construction & Compatibility
This combination wye and 1/8 bend double assembly is manufactured from PVC for use with PVC DWV Fittings. Confirm the selected product configuration is appropriate for the intended piping system.
The All Hub configuration should be matched to the intended adjoining components and assembled using the appropriate joining method identified for the system and application.
Product Highlights
- PVC construction for compatible PVC DWV Fittings
- Combination Wye and 1/8 Bend Double Assembly configuration for the intended piping arrangement
- All Hub connection arrangement for matching adjoining components
- Selected size must match each adjoining pipe, fitting, and connection
Technical Specifications
| Primary Function | Provide Multiple Gradual DWV Branch Transitions |
|---|---|
| Configuration | Double Assembly |
| Connection | All Hub |
| Material | PVC |
Size & SKU Reference
The options below come from this product listing. Pricing and current availability are shown in the product options above.
| GetPipe SKU | Size / Product Option |
|---|---|
| LP507-015 | 1-1/2" |
| LP507-020 | 2" |
| LP507-030 | 3" |
| LP507-040 | 4" |
| LP507-251 | 2" x 1-1/2" |
| LP507-338 | 3" x 2" |
| LP507-420 | 4" x 2" |
| LP507-422 | 4" x 3" |
Confirm every required nominal connection size before ordering. Verify the required All Hub connection configuration. Match the selected SKU to the intended piping layout.
Confirm adjoining piping and components are compatible with the PVC fitting. Compare the listed size options carefully before choosing the SKU for the intended piping layout. Verify each connection dimension in the selected option matches the adjoining pipe or fitting before ordering.
Typical Applications
- PVC DWV Fittings installations
- Compatible new, repair, or replacement PVC piping installations
- Piping layouts using a combination wye and 1/8 bend double assembly (All Hub)
Selection & Installation
- Confirm every required nominal connection size.
- Confirm the fitting orientation and intended function.
- Verify the connection configuration and adjoining PVC component compatibility.
LESSO Technical Literature
Review current LESSO product literature for dimensions, connection requirements, technical information, and applicable installation guidance for the selected fitting.
Ask Willy: Need Help Selecting This LESSO Product?
Send the GetPipe.com team your required size, connection configuration, application, or LESSO SKU. We can help review your selection before you order.
Frequently Asked Questions
How do I choose the correct size for this product?
What connection configuration does this product use?
What should I verify before installing this fitting?
LESSO America supplies PVC fittings for compatible piping systems. Before ordering or installation, confirm the selected size, All Hub connection configuration, intended application, and compatibility with the adjoining piping system.
