Uponor

ProPEX LF Brass Straight Stop Valve 1/2" PEX x 3/8" OD Comp

(No reviews yet) Write a Review
SKU:
LF5865038
Availability:
Ships within 10 business days
Weight:
0.15 LBS
*Images are for visual reference only.

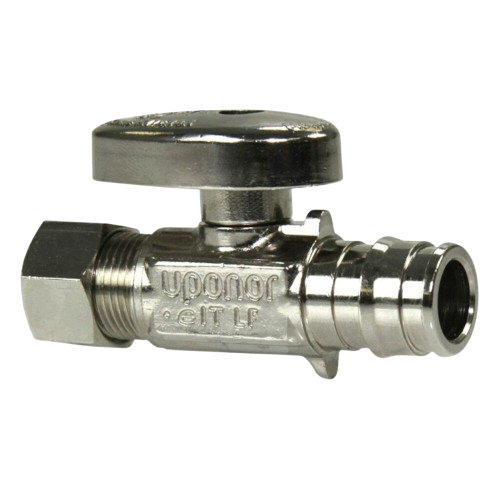

  • ProPEX LF Brass Straight Stop Valve 1/2" PEX x 3/8" OD Comp
  • Uponor Logo
$9.50

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

ProPEX LF Brass Straight Stop Valve 1/2" PEX x 3/8" OD Comp

Uponor ProPEX LF Brass Straight Stop Valve is a lead-free brass full-port shutoff valve designed for use with Uponor AquaPEX® PEX-a plumbing systems.

The valve provides a dependable point-of-use shutoff between a 1/2" PEX supply line and a 3/8" OD compression fixture connection. Its straight-body configuration, quarter-turn operation, and chrome-finished lead-free brass construction make it suitable for residential and commercial domestic water installations.

Product Highlights

  • 1/2" PEX x 3/8" OD compression connection
  • Straight supply stop valve configuration
  • Lead-free brass construction
  • Chrome finish for corrosion resistance and service life
  • Quarter-turn ball valve operation
  • Full-port valve design
  • Designed for point-of-use fixture shutoff
  • Compatible with Uponor AquaPEX® PEX-a piping
  • Suitable for residential and commercial domestic water systems
  • Designed for use with 3/8" OD compression fixture risers

Technical Specifications

Manufacturer Uponor
Product Line ProPEX
Valve Type Straight Stop Valve
Body Style Straight
PEX Connection 1/2"
Fixture Connection 3/8" OD Compression
PEX Compatibility Uponor AquaPEX® PEX-a
Valve Operation Quarter-Turn Ball Valve
Port Design Full Port
Material Lead-Free Brass
Finish Chrome
Maximum Operating Pressure 125-145 psi, depending on applicable listing
Maximum Temperature 194°F
Applications Residential and Commercial Domestic Water Fixture Shutoff
Standards & Certifications ASTM F1960, ASTM F877, NSF/ANSI 14 and NSF/ANSI 61 where applicable

Point-of-Use Shutoff

The valve provides a dedicated shutoff point for plumbing fixtures, allowing water flow to be isolated at the fixture without shutting down the entire branch or system.

Straight Valve Configuration

This model uses a straight-body layout rather than an angle-stop configuration, making it suitable where the supply and fixture connection are aligned in a straight path.

Quarter-Turn Operation

The quarter-turn ball valve design allows quick on/off operation and is intended for durable service in domestic water plumbing applications.

Lead-Free Brass & Chrome Finish

Lead-free brass construction and a chrome finish provide strength, corrosion resistance, and a clean appearance for exposed fixture connections.

AquaPEX Plumbing Applications

The ProPEX LF Brass Straight Stop Valve is designed to integrate with Uponor AquaPEX® PEX-a supply piping and 3/8" OD compression fixture risers in residential and commercial water systems.

Willy helps with Uponor ProPEX straight stop valve information
Ask Willy: Product Documents & Help

Review the Uponor Product Catalog for additional ProPEX valve and fitting information, or contact the GetPipe.com team for help confirming tubing, fixture connection, and application compatibility.

Frequently Asked Questions

What size connections does this valve have?

This valve connects to 1/2" PEX-a tubing on the supply side and a 3/8" OD compression fixture riser on the outlet side.

Is this a straight stop or angle stop valve?

This is a straight stop valve. The inlet and outlet are arranged in a straight-body configuration rather than at a 90° angle.

What type of valve mechanism does it use?

The supplied product information identifies it as a quarter-turn ball valve.

What material is the valve made from?

The valve is constructed from lead-free brass with a chrome finish.

Is this compatible with AquaPEX?

Yes. The supplied product information identifies compatibility with Uponor AquaPEX® PEX-a piping systems.

What is the maximum operating pressure?

The supplied product information lists a maximum operating pressure in the 125 to 145 psi range depending on the applicable product listing.

What is the maximum temperature rating?

The supplied product information lists a maximum temperature rating of 194°F.

What is this valve typically used for?

It is used as a point-of-use shutoff for domestic water fixtures in residential and commercial plumbing systems.

What standards and certifications are listed?

The supplied product information references ASTM F1960, ASTM F877, NSF/ANSI 14, and NSF/ANSI 61 where applicable.

Important Ordering Notes

This listing is for a 1/2" PEX x 3/8" OD Compression ProPEX LF Brass Straight Stop Valve. Verify PEX size, compression outlet size, straight-body configuration, pressure and temperature requirements, and system compatibility before ordering.
