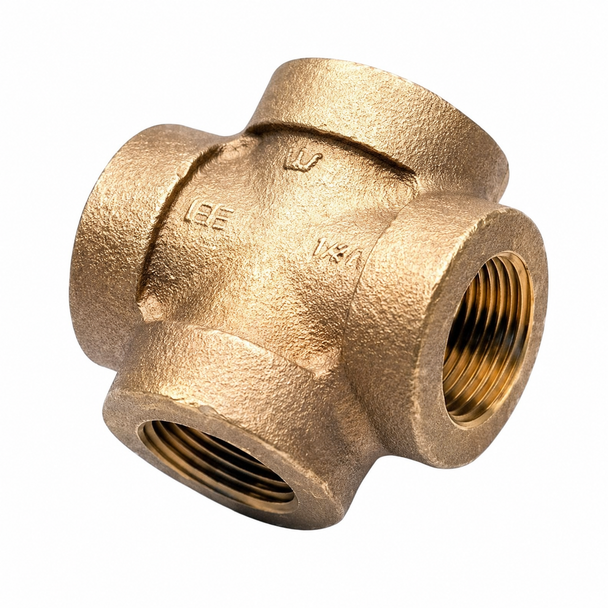

Midland XH Bronze Cross
Midland XH Bronze Cross fittings provide a rugged four-way threaded connection for demanding plumbing, commercial, industrial, HVAC, and mechanical piping systems.
Manufactured from durable bronze with extra heavy construction, these fittings feature four female NPT threaded outlets for creating secure four-way pipe intersections. Their robust body and corrosion-resistant material make them well suited for applications requiring dependable long-term performance.
Product Highlights
- Extra heavy (XH) bronze construction
- Four-way cross fitting configuration
- Four female NPT threaded connections
- Precision-machined NPT threads
- Excellent corrosion resistance
- Designed for demanding piping applications
- Suitable for compatible water, air, oil, and other media
- Useful in commercial, industrial, HVAC, and mechanical systems
- Robust construction for long service life
- Manufactured by Midland Industries
Technical Specifications
| Product Type | Extra Heavy Cross Fitting |
|---|---|
| Brand | Midland |
| Material | Bronze |
| Construction | Extra Heavy (XH) |
| Connection Type | Female NPT x Female NPT x Female NPT x Female NPT |
| Thread Type | NPT |
| Configuration | Four-Way Cross |
| Primary Function | Creating a Four-Way Threaded Pipe Intersection |
| Media Compatibility | Water, Air, Oil, and Other Compatible Media |
| Typical Applications | Plumbing, Commercial, Industrial, HVAC, Mechanical, and General Fluid Handling Systems |
Cross Configuration
Four Female NPT Ports
Each opening features a female NPT connection for use with compatible male-threaded pipe, nipples, fittings, valves, or equipment connections.
Four-Way Intersection
The cross configuration allows four threaded piping branches to meet at a single fitting for compact system routing and distribution.
Extra Heavy Body
The XH body provides increased material thickness and mechanical durability for demanding threaded piping installations.
Construction Details
Midland XH Bronze Cross fittings are manufactured from durable bronze to provide dependable mechanical strength and corrosion resistance in demanding piping environments.
The extra heavy body provides a more robust fitting construction for applications where increased durability is required.
Precision-machined female NPT threads on all four ports help provide consistent engagement with compatible male-threaded piping components when installed using accepted piping practices.
Why Choose an XH Bronze Cross?
Four-Way Pipe Distribution
- Connects four threaded piping branches
- Creates a compact four-way junction
- Useful for distribution and manifold-style layouts
- Reduces the need for multiple separate fittings
- Suitable for new installations and system modifications
Extra Heavy Bronze Construction
- Robust fitting body
- Excellent corrosion resistance
- Dependable mechanical strength
- Suitable for demanding service environments
- Designed for long-term threaded service
NPT Threaded Connections
Four Female NPT Connections
All four openings use female NPT threads for connection to compatible male-threaded piping components.
Thread Sealing
Use an appropriate thread sealant or PTFE tape on mating male NPT threads according to the system media, pressure, temperature, and installation requirements.
Typical Applications
Plumbing & Commercial
- Commercial plumbing systems
- Water distribution piping
- Mechanical piping
- HVAC piping systems
- Branch distribution connections
Industrial
- Industrial piping systems
- Compatible air and oil systems
- Equipment connections
- Utility piping
- General fluid handling systems
Size Selection
Midland XH Bronze Cross fittings are designed for compatible male NPT threaded piping components.
Confirm the required nominal pipe size and verify that all four mating components use compatible male NPT threads before ordering.
Our pipe and fitting specialists can help review your nominal pipe size, four female NPT connections, extra heavy requirements, system media, pressure, temperature, and material compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What material is this cross made from?
It is manufactured from bronze.
What does XH mean?
XH stands for Extra Heavy and identifies the more robust construction of the fitting.
How many connections does this fitting have?
It has four female NPT threaded connections.
What is a cross fitting used for?
A cross fitting creates a four-way intersection where four threaded piping branches meet at one fitting.
What type of threads does it use?
All four ports use female NPT threads.
Why choose bronze?
Bronze provides dependable mechanical strength and excellent corrosion resistance in compatible plumbing and industrial piping environments.
Should thread sealant be used?
Use an appropriate thread sealant or PTFE tape on each mating male NPT connection according to the application requirements.
What media can this fitting be used with?
The supplied product information identifies water, air, oil, and other compatible media as possible applications.
Can this be used in HVAC piping systems?
The supplied product information identifies HVAC piping systems among the intended applications.
What should I verify before ordering?
Confirm nominal pipe size, all four mating male NPT connections, system pressure, temperature, media compatibility, and installation requirements.
Important Ordering & Installation Notes
- This listing is for Midland XH Bronze Cross fittings.
- The fitting has four female NPT threaded connections.
- Verify the required nominal pipe size before ordering.
- Confirm all four mating components use compatible male NPT threads.
- Use an appropriate thread sealant or PTFE tape on threaded connections.
- Verify bronze is compatible with the intended system media.
- Confirm system pressure and temperature requirements before installation.
- Inspect all threaded ports for damage or contamination before assembly.
- Avoid excessive tightening that could damage the fitting or mating threads.
- Align all connected piping properly before final tightening.
- Support connected piping to prevent excessive mechanical loading on the cross.
- Check completed connections for leakage before placing the system into service.
- Do not use the fitting outside its intended pressure, temperature, or media requirements.
- Pipe, nipples, valves, and additional fittings are sold separately unless otherwise specified.
- Install according to applicable piping requirements and Midland manufacturer recommendations.
