Low Voltage General Purpose Dry-Type Transformer
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description
Low Voltage General Purpose Dry-Type Transformer

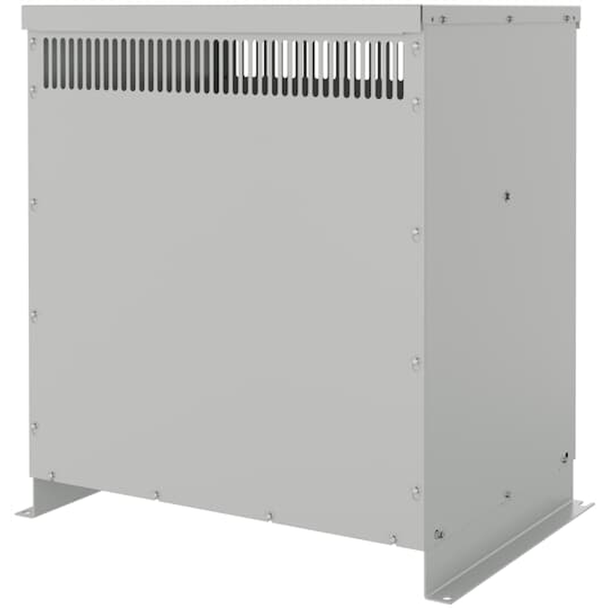

ABB Low Voltage General Purpose Dry-Type Transformers are three-phase ventilated transformers designed for dependable commercial, industrial, and general-purpose electrical distribution applications. These models convert a 480-volt primary supply to a 208Y/120-volt secondary and are available in ratings from 30 kVA through 150 kVA.
The transformer family features aluminum windings, a 150°C temperature rise, NEMA 2 enclosure construction, 60 Hz operation, and DOE 2016 energy-efficiency performance. Core and coil assemblies are mounted on rubber isolation pads to help reduce operating noise, while removable front and back sections help simplify installation and service access.
Product Highlights
- ABB low-voltage general-purpose dry-type transformer
- Three-phase construction
- 480 V primary voltage
- 208Y/120 V secondary voltage
- Available from 30 kVA through 150 kVA
- Aluminum coil construction
- 150°C temperature rise
- 60 Hz frequency
- 40°C ambient temperature rating
- DOE 2016 energy-efficiency design
- K1 rated
- NEMA 2 enclosure
- Standard sound level
- UL Listed
- Rubber isolation pads help reduce operating noise
- Removable front/back construction simplifies installation and service
Technical Specifications
| Brand | ABB |
|---|---|
| Product Type | Low Voltage General Purpose Dry-Type Transformer |
| Transformer Type | DOE 2016 General Purpose Dry-Type |
| Phase | 3 Phase |
| Primary Voltage | 480 V |
| Secondary Voltage | 208Y/120 V |
| Available kVA Ratings | 30 kVA, 45 kVA, 75 kVA, 112.5 kVA, 150 kVA |
| Coil Material | Aluminum |
| Temperature Rise | 150°C |
| Frequency | 60 Hz |
| Ambient Temperature | 40°C |
| Energy Efficiency | DOE 2016 |
| K-Factor | K1 |
| Enclosure Type | NEMA 2 |
| Sound | Standard |
| UL Listed | Yes |
Construction Details
ABB Low Voltage General Purpose Dry-Type Transformers use a ventilated dry-type construction intended for reliable electrical distribution without the use of liquid dielectric cooling.
These models use aluminum windings and are designed with a 150°C temperature rise. Core and coil assemblies are mounted on rubber isolation pads to help minimize the transmission of transformer operating noise.
A removable single-piece front and back construction provides convenient access during installation and future electrical service work. The transformers are housed in NEMA 2 enclosures for compatible indoor general-purpose applications.
Available Transformer Ratings
SKU & kVA Selection
| ABB Catalog Number | kVA Rating | Primary | Secondary | Phase |
|---|---|---|---|---|
| 9T10A1002 | 30 kVA | 480 V | 208Y/120 V | 3 Phase |
| 9T10A1003 | 45 kVA | 480 V | 208Y/120 V | 3 Phase |
| 9T10A1004 | 75 kVA | 480 V | 208Y/120 V | 3 Phase |
| 9T10A1005 | 112.5 kVA | 480 V | 208Y/120 V | 3 Phase |
| 9T10A1006 | 150 kVA | 480 V | 208Y/120 V | 3 Phase |
Performance Features
DOE 2016 Efficiency
These transformers are designed to meet DOE 2016 energy-efficiency requirements for compatible general-purpose dry-type transformer applications.
Quiet Performance
The core and coil assembly is mounted on rubber isolation pads to help reduce vibration and transmitted operating noise.
Serviceable Construction
Removable front and back sections provide convenient access for installation, inspection, connection, and future service.
Electrical Configuration
480 V Primary
All five catalog numbers in this product group are designed for a 480-volt three-phase primary electrical supply.
208Y/120 V Secondary
The secondary configuration provides 208-volt three-phase power with 120-volt line-to-neutral capability for compatible distribution systems.
Common Applications
Commercial & Industrial Distribution
- Electrical distribution systems
- Commercial facilities
- Industrial facilities
- Mechanical equipment power
- Building electrical systems
General Purpose Step-Down Service
- 480 V to 208Y/120 V transformation
- Panelboard supply
- Equipment distribution
- Lighting and receptacle distribution where properly designed
- General-purpose three-phase electrical loads
Selecting the Correct Transformer
Choose the Required kVA
Select the transformer according to the total connected electrical load, applicable demand factors, future capacity requirements, and electrical system design. Available ratings in this product group are 30, 45, 75, 112.5, and 150 kVA.
Confirm Voltage & Phase
These models are configured for 480 V primary, 208Y/120 V secondary, three-phase service. Verify the available supply voltage and required secondary distribution voltage before ordering.
Installation Considerations
- Verify the required transformer kVA rating before ordering.
- Confirm a 480 V three-phase primary supply is available.
- Confirm that 208Y/120 V three-phase secondary power is required.
- Install only in an environment compatible with the NEMA 2 enclosure rating.
- Provide required working clearances and ventilation around the transformer.
- Follow applicable electrical codes and project specifications.
- Use appropriately sized primary and secondary conductors.
- Provide overcurrent protection as required by the installation and applicable electrical codes.
- Properly ground and bond the transformer and electrical system.
- Observe manufacturer installation and termination instructions.
- Electrical installation should be performed by qualified personnel.
- De-energize and verify absence of voltage before installation or service.
DOE 2016 & UL
ABB identifies these general-purpose dry-type transformers as meeting DOE 2016 efficiency standards and being UL Listed.
The product family is also described as UL Energy Verified for energy-efficient operation. Compliance and suitability should be confirmed against the exact project specification, applicable electrical code, and selected catalog number before installation.
Product Documents
Review the combined ABB product details for electrical specifications, kVA ratings, construction information, efficiency details, classifications, and manufacturer information for catalog numbers 9T10A1002 through 9T10A1006.
Need Help Selecting a Transformer?
Our electrical and industrial product specialists can help review your primary voltage, secondary voltage, phase, connected load, required kVA rating, enclosure requirements, and electrical application before you order.
Frequently Asked Questions
What type of transformer is this?
This product group consists of ABB low-voltage, general-purpose, ventilated dry-type transformers designed for three-phase electrical distribution.
What is the primary voltage?
All five catalog numbers listed on this page have a 480-volt primary rating.
What is the secondary voltage?
The secondary configuration is 208Y/120 volts.
Are these transformers single-phase or three-phase?
These models are three-phase transformers.
What kVA ratings are available?
Available ratings are 30 kVA, 45 kVA, 75 kVA, 112.5 kVA, and 150 kVA.
Which SKU is the 30 kVA transformer?
ABB catalog number 9T10A1002 is the 30 kVA model.
Which SKU is the 45 kVA transformer?
ABB catalog number 9T10A1003 is the 45 kVA model.
Which SKU is the 75 kVA transformer?
ABB catalog number 9T10A1004 is the 75 kVA model.
Which SKU is the 112.5 kVA transformer?
ABB catalog number 9T10A1005 is the 112.5 kVA model.
Which SKU is the 150 kVA transformer?
ABB catalog number 9T10A1006 is the 150 kVA model.
What material are the coils?
The product details identify aluminum coil construction for these five catalog numbers.
What is the temperature rise?
The published temperature rise is 150°C.
What enclosure type is used?
These transformers use a NEMA 2 enclosure.
What is the frequency?
The published frequency is 60 Hz.
What is the K-factor?
These models are identified as K1 transformers.
Are these transformers UL Listed?
Yes. ABB identifies these catalog numbers as UL Listed.
Where can I find the ABB product details?
The ABB Combined Product Details PDF is linked in the Product Documents section above.
Important Ordering & Installation Notes
- Product: ABB Low Voltage General Purpose Dry-Type Transformer.
- 9T10A1002: 30 kVA.
- 9T10A1003: 45 kVA.
- 9T10A1004: 75 kVA.
- 9T10A1005: 112.5 kVA.
- 9T10A1006: 150 kVA.
- Phase: Three phase.
- Primary voltage: 480 V.
- Secondary voltage: 208Y/120 V.
- Coil material: Aluminum.
- Temperature rise: 150°C.
- Frequency: 60 Hz.
- Ambient temperature: 40°C.
- Energy efficiency: DOE 2016.
- K-factor: K1.
- Enclosure: NEMA 2.
- UL Listed.
- Confirm required kVA, supply voltage, secondary voltage, phase, load, and installation environment before ordering.
- Installation and service should be completed by qualified electrical personnel.
- Follow current ABB instructions, applicable electrical codes, and project requirements.
