Watts Water Technologies
LFFBV-3C-M1 Full Port Threaded Ball Valve Lead Free
- SKU:
- LFFBV-3C-M1
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

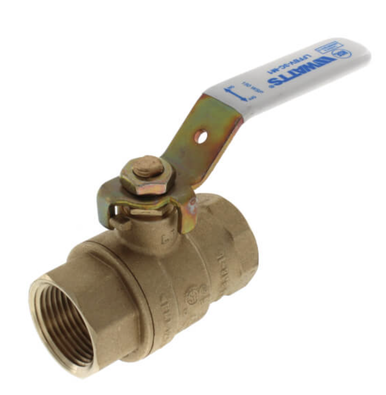

LFFBV-3C-M1 Full Port Threaded Ball Valve Lead Free
Series LFFBV-3C-M1 and LFFBVS-3C-M1 Lead Free* 2-piece, full port brass ball valves are designed for use in commercial and industrial applications for a full range of liquids and gases. They're constructed for reliable performance with a fluorocarbon elastomer stem O-ring that prevents stem leaks, a bottom-loaded blowout-proof stem, and an adjustable stem packing gland. LFFBV-3C-M1 models have threaded end connections. LFFBVS-3C-M1 models have solder end connections. Available in sizes 1/4 to 4 inch.
Product Highlights
- Construction is Lead-Free* forged copper silicon alloy body and adapter
- The ball is machined chrome-plated Lead-Free* brass
- Certified to NSF/ANSI standard 61/8
- Valves comply to MSS-SP-110 standard
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | LFFBV-3C-M1 |
| Connection / Configuration | Threaded |
| Construction | Lead free forged copper silicon alloy |
| Listed Options | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
| Product Code | LFFBV-3C-M1 |
Product Documents
Product Questions
What is the listed connection configuration?
Threaded. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Lead free forged copper silicon alloy. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4". Choose the required option before ordering.
