Lead Free* Brass Wye-Pattern Strainers with Tapped Retainer Cap (Solder)
- SKU:
- LF777SI-1
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

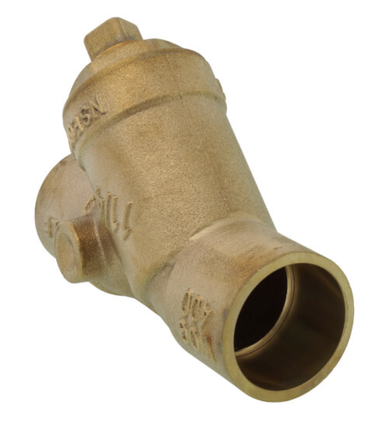

Lead Free* Brass Wye-Pattern Strainers with Tapped Retainer Cap (Solder)
Series LF777SI, LFS777SI Lead Free* Brass Wye-Pattern Strainers feature a wye-pattern, Lead Free* brass body stainless steel screen and solid tapped retainer cap with EPDM gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in. (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - Maximum Pressure (non shock): 400psi (27.6 bar) at 210°F (99°C) WOG, 125psi (8.6 bar) at 353°F (178.3°C) WSP. Model LFS777SI - Maximum Pressure (non shock): 400psi (27.6 bar) at 150°F (66°C) 15psi (103 kPa) at 250°F (121°C) WSP.
Product Highlights
- Lead Free* brass 45° wye-pattern strainer for efficient flow and long life
- Threaded connection models include tapped retainer cap for easy installation and service
- Lead Free* construction complies with Lead Free* installation requirements
- Threaded models: 3/8 to 3 in. (10 to 80mm); solder connections: ½ to 2 in. (15 to 50mm)
Technical Specifications
| Manufacturer | Watts Water Technologies |
|---|---|
| Series / Model | LFS777SI |
| Connection / Configuration | Solder |
| Construction | Lead free brass |
| Listed Options | 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 |
| Product Code | LF777SI-1 |
Product Documents
Product Questions
What is the listed connection configuration?
Solder. Confirm the selected option and matching piping requirements before ordering.
What construction is identified for this product?
Lead free brass. Review the product documents for the full component materials and selected model details.
Which options are included in this listing?
1/2, 3/4, 1, 1-1/4, 1-1/2, 2. Choose the required option before ordering.
