Dixon

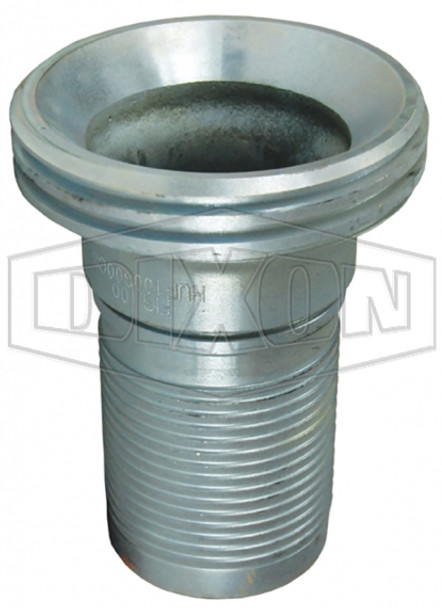

HUF100400CS - Dixon Female Frac Fitting
- SKU:
- HUF100400CS
- Availability:
- Usually Ships Same Day
- Weight:
- 10.45 LBS
Description
Engineered to connect.
Built to perform.
HUF100400CS — Dixon Female Frac Fitting The one-piece fitting design avoids the additional leak path of a two-piece threaded arrangement. The female fitting is designed to work with Dixon King Crimp ferrules for the selected hose assembly.
Frac Transfer Fittings
Dixon identifies water and sand-slurry transfer at hydraulic-fracturing sites; pressure capability depends on the specified complete assembly.
Selection & Installation
Build: The female fitting is designed to work with Dixon King Crimp ferrules for the selected hose assembly.
Check: Match the fitting, hose, ferrule, and size-specific pressure conditions rather than treating all frac fittings alike.
Product documents
4 PDF REFERENCES
Ask Willy: Need help choosing the right Dixon part?
Tell Willy your hose size, fitting half, seal requirement, ferrule, transfer medium, and working conditions. Include the existing model or a connection photo so the required configuration can be checked before ordering.
Frequently Asked Questions
What distinguishes Dixon HUF100400CS?
The one-piece fitting design avoids the additional leak path of a two-piece threaded arrangement. The female fitting is designed to work with Dixon King Crimp ferrules for the selected hose assembly.
What should I check when selecting HUF100400CS?
Dixon identifies water and sand-slurry transfer at hydraulic-fracturing sites; pressure capability depends on the specified complete assembly. Check the exact fitting drawing and applicable crimp requirements before specifying the hose assembly.
What safety or compatibility checks apply?
The conditional 400 PSI claim requires correctly crimped 4-inch heavy-duty stems, specified Dixon HD ferrules and minimum 4:1 hose-burst/working-pressure safety factor. Never exceed the lowest component rating; follow Dixon’s exact hose/component crimp instructions.
