Fairbanks Company (The)
HEAVY-DUTY CASTERS HW26-5-RT
- SKU:
- HW26-5-RT
- Availability:
- Lead time varies. We will confirm ship date after order. Need exact lead time? Add to quote.
- Weight:
- 0.00 LBS
- CasterType:
- Rubber Mold-On - Swivel"
- Wheel Size:
- 5 x 2
- Cap.(lbs.):
- 350
- O.A. Height:
- 6-1/2

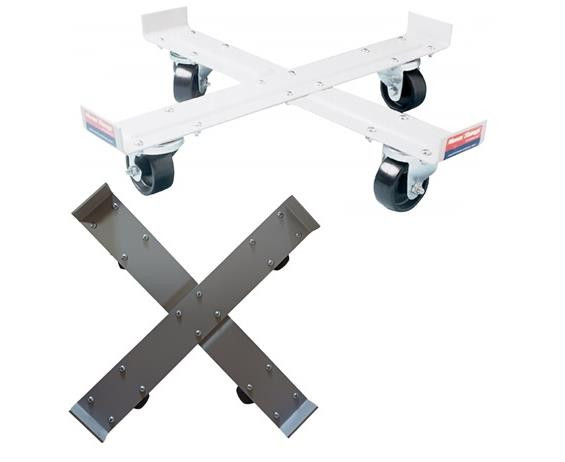

*Images are for visual reference only.
Description
HEAVY-DUTY CASTERS HW26-5-RT
Heavy loads keep on rolling with these rugged cold-forged constructed casters. One-piece swivel horn/fork design with no welds distributes loads across the larger portion of the ball race.One-piece combination lower ball race and king pin improves structure rigidity and easier swiveling. 3/4" king pin is orbital cold formed for superior strength and stability. Swivel casters feature grease seals, keeping dirt out of top raceway and increasing life. Epoxy powder-coated finish. Meets ASME B56.11-1 Industry Standards. FOB Shipping Point. Top plate size: 4-1/2 x 6-1/4". Bolt hole spacing: 2-7/16 x 3-3/8" slotted to 4-15/16 x 5-1/4". Bolt hole size 3/8".
