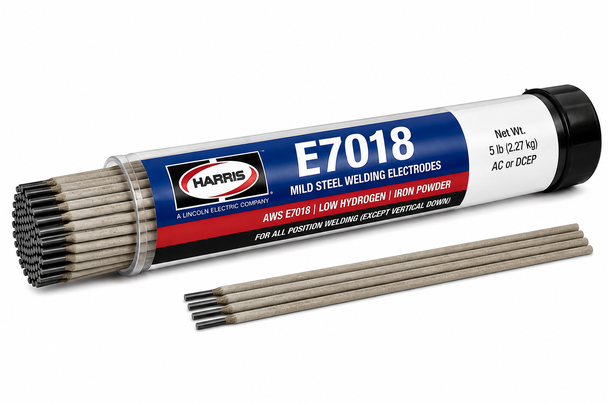

Harris E7018 Mild Steel Stick Welding Electrodes – 5 lb & 10 lb Tubes
- Weight:
- 0.00 LBS
Description
Harris E7018 Mild Steel Stick Welding Electrodes
Harris E7018 covered stick electrodes are low-hydrogen, iron-powder mild steel electrodes designed for high-quality SMAW welding on low and medium carbon steels.
Select the required electrode diameter and package size from the product options above. Available configurations include 3/32", 1/8", and 5/32" diameters in convenient 5 lb and 10 lb tubes.
Product Highlights
- AWS E7018 low-hydrogen covered electrode
- Iron-powder electrode designed for high deposition rates
- Excellent mechanical properties and crack resistance
- Produces X-ray quality welds when properly applied
- Quiet, stable arc with low spatter
- Moderately heavy slag removes easily and reveals a clean, distinctly rippled bead
- Suitable for all-position welding except vertical down
- Operates with AC or DCEP polarity
- Available in 3/32", 1/8", and 5/32" diameters
- Available in 5 lb and 10 lb tubes
Technical Specifications
| AWS Classification | E7018 |
|---|---|
| Electrode Type | Low-Hydrogen Iron-Powder Covered Electrode |
| Base Material | Mild Steel |
| Welding Process | SMAW / Stick Welding |
| Polarity | AC or DCEP |
| Welding Positions | All positions except vertical down |
| Specification Compliance | ANSI/AWS A5.1 & ASME SFA 5.1 E7018 |
| Typical Tensile Strength | Up to 81,000 psi |
| Typical Yield Strength | 71,000 psi |
| Typical Elongation | 30% in 2" |
| Manufacturer | The Harris Products Group |
Recommended Welding Parameters
| Electrode Diameter | Flat | Vertical / Overhead |
|---|---|---|
| 3/32" | 65–85 amps | 50–80 amps |
| 1/8" | 90–130 amps | 85–120 amps |
| 5/32" | 130–180 amps | 110–160 amps |
Common Applications
Structural & Fabrication
- Low-alloy structures
- General fabrication
- Heavy-duty equipment
- Maintenance and repair
Industrial Applications
- Piping
- Pressure vessels
- Boilers
- Shipbuilding
Product Resources
View manufacturer-published technical information, specifications, recommended operating ranges, and application guidance for Harris E7018 covered electrodes.
View Technical Data SheetNeed Help Selecting an E7018 Electrode?
Our welding and industrial supply specialists can help you select the appropriate electrode diameter and package size for your welding application.
Frequently Asked Questions
What is an E7018 welding electrode?
E7018 is a low-hydrogen, iron-powder covered stick electrode used for welding carbon and low-alloy steels where strong mechanical properties, crack resistance, and high-quality weld deposits are required.
What welding process is used with Harris E7018 electrodes?
These electrodes are designed for shielded metal arc welding (SMAW), commonly called stick welding.
Can Harris E7018 electrodes be used with AC?
Yes. Harris specifies these E7018 electrodes for operation with AC or DCEP welding current.
Can E7018 be welded in all positions?
Harris identifies E7018 for flat, horizontal, vertical-up, and overhead welding. Vertical-down welding is generally not recommended.
What amperage should I use for 3/32" E7018?
Harris recommends approximately 65–85 amps for flat welding and 50–80 amps for vertical or overhead welding. Actual settings may vary with joint design, welding machine, technique, and other application factors.
What amperage should I use for 1/8" E7018?
Harris recommends approximately 90–130 amps for flat welding and 85–120 amps for vertical or overhead welding.
What amperage should I use for 5/32" E7018?
Harris recommends approximately 130–180 amps for flat welding and 110–160 amps for vertical or overhead welding.
What is the difference between the 5 lb and 10 lb options?
The electrode classification and welding characteristics remain the same for a selected diameter. The package-size option determines whether you receive a 5 lb or 10 lb tube.
What applications are Harris E7018 electrodes commonly used for?
Typical applications include piping, pressure vessels, boilers, low-alloy structures, heavy-duty equipment, shipbuilding, general maintenance, and production fabrication.
Why is E7018 called a low-hydrogen electrode?
The electrode coating is formulated to limit hydrogen introduced into the weld deposit. Proper handling and storage are important to maintain the low-hydrogen characteristics of the electrode.
How should E7018 electrodes be stored?
Keep electrodes dry and follow Harris, applicable welding-code, and job-procedure requirements for storage and handling of low-hydrogen electrodes. Do not use electrodes that have been improperly stored without first determining whether they remain suitable for the intended work.
Does Harris E7018 meet AWS requirements?
Harris lists these electrodes as complying with ANSI/AWS A5.1 and ASME SFA 5.1 E7018 requirements.
Important Ordering Notes
- Select both the required electrode diameter and package size before adding the product to your cart.
- The selected variation determines the Harris item number, package weight, price, and cost.
- Available diameters on this product page are 3/32", 1/8", and 5/32".
- Available package sizes are 5 lb and 10 lb tubes.
- Recommended amperage values are starting guidelines and may require adjustment for joint design, welding position, equipment, and procedure.
- Low-hydrogen electrodes must be stored and handled appropriately to maintain their intended welding characteristics.
- Always follow the applicable welding procedure, code requirements, manufacturer instructions, and workplace safety requirements.
