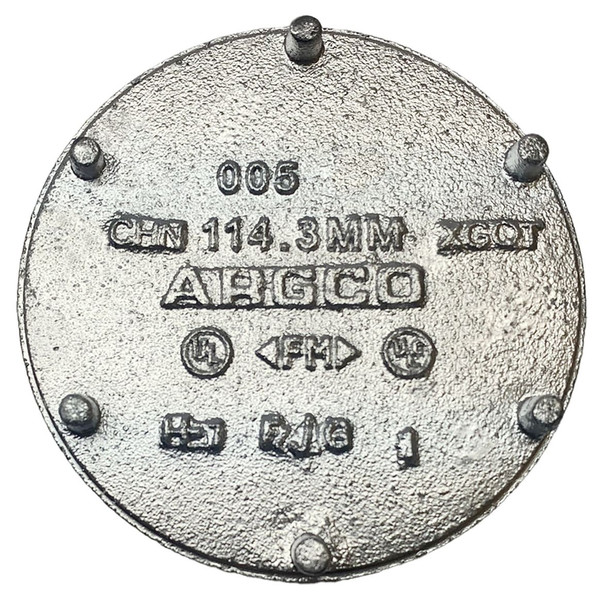

Galvanized Grooved End Cap

ARGCO’s grooved end cap (Model 601) is designed to cap the end of grooved carbon steel pipe in rigid piping systems. It provides a dependable closure while maintaining the strength and simplicity of grooved mechanical piping installations.

This features a hot dipped galvanized finish. Suitable for Schedule 10 and Schedule 40 carbon steel pipe, the grooved end cap is rated for working pressures up to 300 psi.

Key Features

• Grooved end cap for rigid piping system terminations
• Designed for use with carbon steel pipe
• Compatible with Schedule 10 and Schedule 40 pipe
• Maximum working pressure up to 300 psi / 20 bar
• Available in nominal sizes 1-1/4" through 12"
• Rigid joint design intended to restrict axial and angular movement
• Ductile iron construction conforming to ASTM A536 Grade 65-45-12
• Hot dipped galvanized finish for corrosion resistance
• UL, ULC, and FM listed/approved

Typical Applications

Ideal for fire protection, mechanical, industrial, and general piping systems where a grooved pipe end must be securely capped. Commonly used in system terminations, future expansion points, testing setups, and maintenance isolation points.

Construction Details

Housing sections are manufactured from ductile iron conforming to ASTM A536 Grade 65-45-12 for strength and durability in grooved piping systems.

This product version is specified with a hot dipped galvanized coating only and is intended for non-painted applications.

End cap dimensions vary by nominal pipe size, with standard sizes available from 1-1/4" through 12".

Important Notes

For use with alternative pipe materials or wall thicknesses, contact ARGCO.

All products should be installed in accordance with current ARGCO installation and assembly instructions.

Product specifications, designs, and standard equipment may change without notice.

Refer to current warranty information and installation instructions before specifying or installing the product.
