Jomar Valve

Full Port, 3 Piece, Threaded Connection, 7500 WOG

(No reviews yet) Write a Review
SKU:
T-CS-4000
Availability:
Usually Ships Same Day
Weight:
1.00 LBS
*Images are for visual reference only.
$29.75 - $289.72

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

Original Jomar Valve logo
THE FLOW STUDIO
JOMAR VALVE
Flow isolation / Ball valve collection

Turn on
confidence.
Turn off doubt.

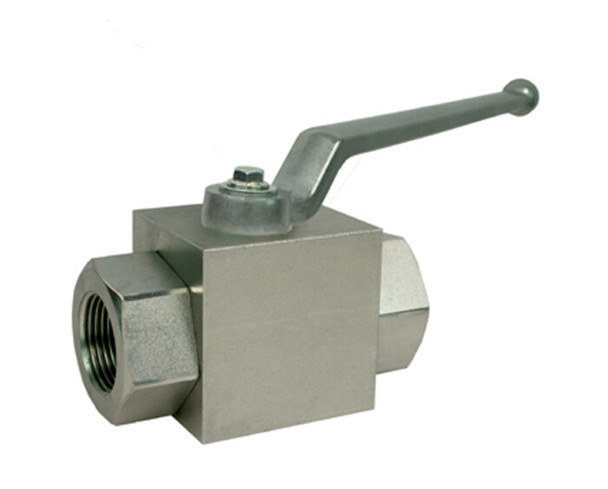

T-CS-4000 Full-Port Threaded Carbon Steel Ball Valve T-CS-4000 pairs threaded connections with the control features detailed below.

RATINGSIZEDEPENDENT
T-CS-4000
ConnectionThreaded
Product familyBall valve
ModelT-CS-4000
THE JOMAR
FLOW FILE

Every great connection
starts with the right call.

T-CS-4000 has size-dependent body ratings and a separate seat rating. Use the specification’s pressure-temperature curve rather than treating the catalog title as a universal operating limit.

What is in the design

The flow side.

  • POM ball seats and lockable handle.
  • Body geometry varies with valve size.
  • Female NPT connections follow ANSI B1.20.1.
What matters in selection

The fit side.

  • Match nominal size and male/female connection orientation.
  • Check both the size-specific body limit and the seat-rating curve.
  • Allow access for handle travel and future maintenance.
THE CONNECTION HAS CHARACTER

Make the turn count.

Good product selection is more than matching a number. It is knowing how the whole system comes together.

Bright ideas. Solid connections.Check the service. Confirm the model. Choose with purpose.
JOMAR PRODUCT DOCUMENTATIONManufacturer product informationReview the linked product information and confirm the selected model before ordering.
Willy, GetPipe.com support mascot

Ask Willy. Get the right fit.

Not sure which Jomar product belongs in your system? Our team can help you check product details before you order.

Three questions worth asking

What should be checked beyond the body material?

Review the ball, stem, seats and seals as well as the body. Their compatibility with the actual media and temperature is part of selecting this valve.

Which pressure rating applies to my size?

The sheet lists body ratings of 7250 PSI for 1/4–1/2 inch and 4550 PSI for 3/4–2 inch, with a separate 6000 WOG seat rating. Use the lower applicable limit at the operating temperature.

What should I confirm before ordering?

Confirm the T-CS-4000 model, nominal size, threaded connection details and operating conditions against the linked specification.

JOMAR VALVE · BUILT AROUND THE CONNECTION · FLOW WITH CONFIDENCE
