Empire Industries

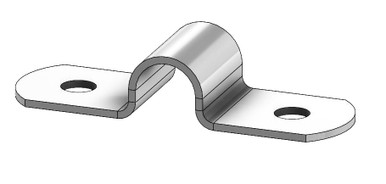

Fig. 231OD Stainless Steel Two Hole Tube Strap for OD Sizes
- SKU:
- Fig. 231OD
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Fig. 231OD Stainless Steel Two Hole Tube Strap for OD Sizes
Empire Fig. 231OD Two Hole Tube Strap is a light-duty support for OD-sized tubing that attaches directly to a horizontal or vertical structural member.
This version is manufactured from T-304 stainless steel. Stainless steel hangers are recommended for applications where protection from a corrosive environment is required.
Product Highlights
- For tube OD sizes
- T-304 stainless steel
- Two-hole strap design
- Light-duty support
- Attaches directly to horizontal or vertical structural members
- Domestically manufactured
Two Hole Strap Design
The Fig. 231OD uses a two-hole strap configuration with an attachment point on each side of the tubing. It is designed to attach directly to a horizontal or vertical structural member.
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 231OD |
| Product Type | Two Hole Tube Strap |
| Sizing | Tube OD Sizes |
| Material | T-304 Stainless Steel |
| Service | Light-Duty Support |
| Attachment | Directly to Horizontal or Vertical Structural Member |
| Standard | MSS SP-58 & SP-69, Type 26 |
OD Tubing Sizes
This configuration is specifically sized for tubing outside diameter (OD). Select the appropriate strap according to the required OD size.
Stainless Steel Construction
The Fig. 231OD version is manufactured from T-304 stainless steel. Empire recommends stainless steel hangers for applications where protection from a corrosive environment is required.
Important Ordering Notes
Specify the figure number, finish, and OD size when ordering. Confirm the required tubing outside diameter before selecting the strap. Stainless steel hangers are recommended where protection from a corrosive environment is required.
Product Documents
Product Questions
Is Fig. 231OD sized for pipe or tubing?
Fig. 231OD is sized for tube outside diameter (OD).
What material is the Fig. 231OD tube strap?
This Fig. 231OD configuration is manufactured from T-304 stainless steel.
Can this strap attach to horizontal and vertical structural members?
Yes. Empire specifies the Fig. 231 series as attaching directly to either a horizontal or vertical structural member.
What standard does the Fig. 231 series comply with?
The manufacturer submittal states compliance with MSS SP-58 and SP-69, Type 26.
